Single Phase Bridge Rectifier Module 100A 1600V Diode For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

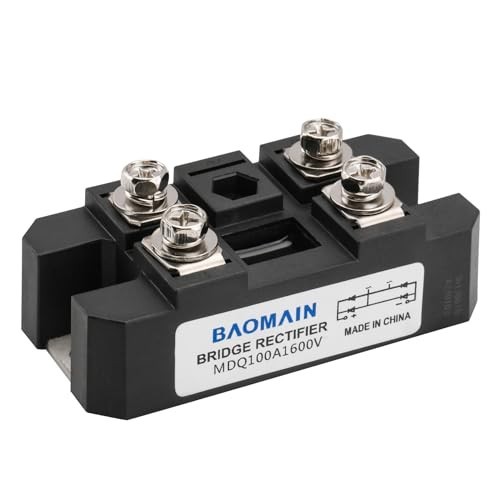

Single Phase Bridge Rectifier Module 100A 1600V Diode:
$30.99

Single Phase Bridge Rectifier Module 100A 1600V Diode

Powerful Performance for Your Industrial Needs

Unlock the potential of dependable electrical performance with our Single Phase Bridge Rectifier Module, featuring robust specifications to meet your toughest demands.

Features:

• Standalone Rectifier Module: Includes 1x MDQ-100A single-phase bridge rectifier diode module with a flat, smooth copper base plate for effortless mounting.
• Safe Installation Design: Comes with 4 clearly labeled terminals for straightforward wiring and rated for a maximum average forward current of 100A and 1600V peak reverse voltage.
• High-Temperature Resistance: Constructed with flame-retardant, high-temperature resistant PBT plastic insulation for stable, safe, and non-polluting performance.
• Heavy-Duty Durability: Engineered with hardened, pressure-resistant screws to resist corrosion and rust, ensuring reliable long-term service.
• Wide Compatibility: Ideal for demanding applications, including DC power supplies, industrial automation controls, CNC machinery, battery chargers, and inverter power systems.

Why Choose Our Rectifier Module?

Engineered for excellence, our Single Phase Bridge Rectifier Module guarantees exceptional thermal management and reliable performance, essential for industrial settings. With its robust construction and high electrical ratings, it’s perfectly suited for a wide range of applications, ensuring you can rely on it for uninterrupted service.

Don\'t settle for less when it comes to powering your projects. Invest in the reliability of our Single Phase Bridge Rectifier Module today!

Material: Plastic,copper,PBT plasticType: Bridge RectifierNumber of Phases: 1Mounting Style: Stand AloneMaximum Continuous Current: 100 APeak Reverse Repetitive Voltage: 100 VSeries: BAOMAIN MDQ-100A

---

---

---
