Square D Air Compressor Pressure Switch 135-175 PSI Pumptrol Grey Manual:
$119.99

Listing Details Square D Air Compressor Pressure Switch 135-175 PSI Pumptrol Grey Manual Overview

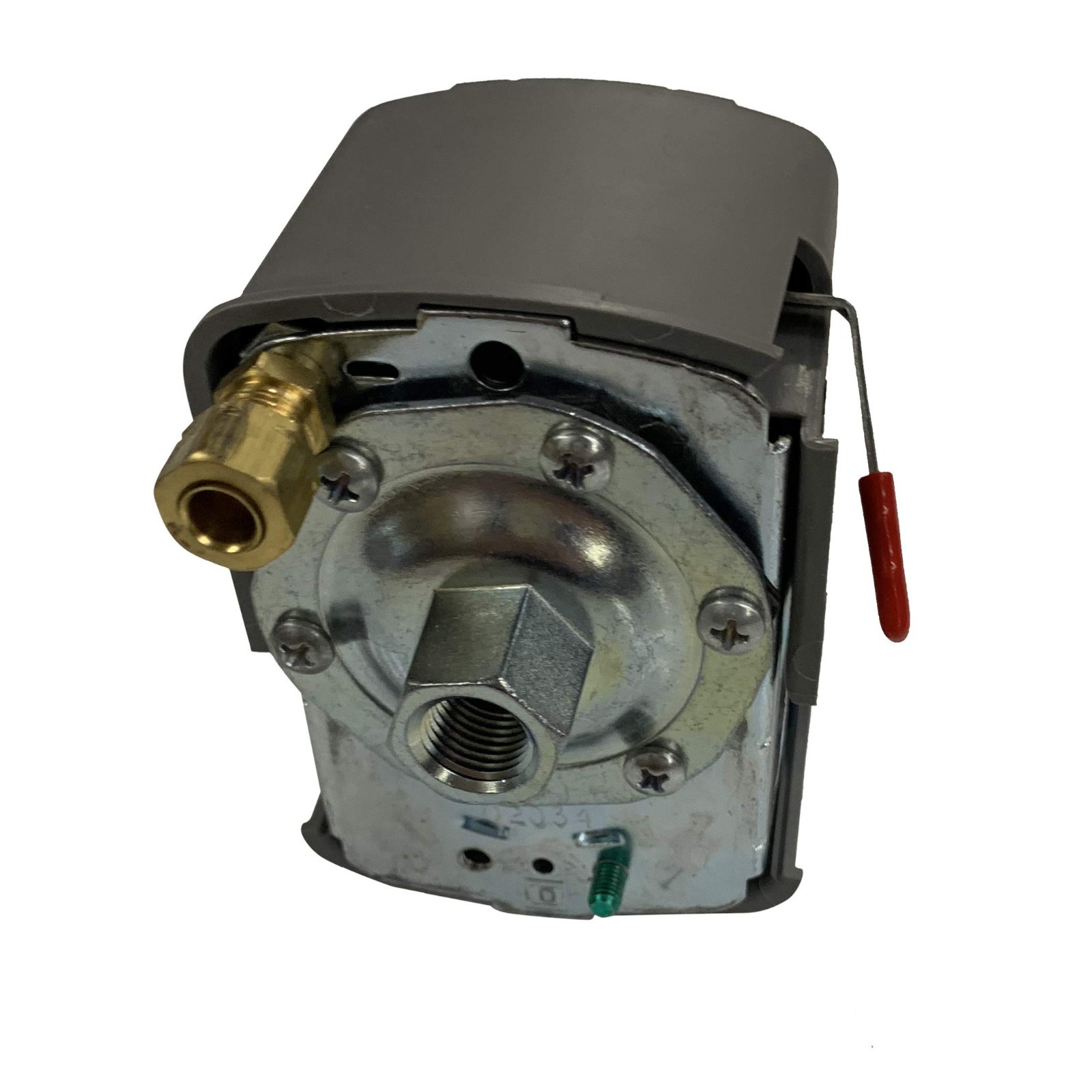

Square D Pumptrol Air Compressor Pressure Switch is a brand new, authentic pressure control switch designed for air compressor applications. This grey metal switch is model 9013FHG42J59M1X and includes a built-in On/Off metal lever plus an unloader control valve for reliable compressor operation.

Built for a 2-stage air compressor rated up to 175 PSI, this switch is preset to turn on at 135 PSI and off at 175 PSI, with adjustability from 100-200 PSI. The unloader helps release head pressure from the pump for easier, load-free startup, while the switch can still function if your setup does not use the unloader connection.

Brand: Square D Pumptrol
Model: 9013FHG42J59M1X
Preset On Pressure: 135 PSI
Preset Off Pressure: 175 PSI
Differential: 40 PSI
Pressure sensing port: One 1/4" female NPT
Unloader port: 1/4" compression for 1/4" OD copper or high-pressure tubing
Compatibility: Single or three phase, 110-575 volts depending on amperage and phase
Material: Metal
Color: Grey

This pressure switch is a practical replacement or upgrade choice for compressors that need dependable pressure control and a manual shutoff lever. Its adjustable range and unloader feature make it a versatile option for many compressor setups.

What is in the Package

1x Square D Air Compressor Pressure Switch 135-175 PSI Pumptrol Grey Manual

Key Features

Brand new Square D brand, Pumptrol air compressor pressure switch, model: 9013FHG42J59M1X 135-175 PSI with unloader control valve and On / Off switch.
This pressure switch is designed for a 2 stage air compressor pumping up to 175 PSI but can be adjusted anywhere from 100-200 PSI.
Model: 9013FHG42J59M1X Number of Pressure Sensing Connection Ports: One 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)
Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing
Preset On Pressure: 135 PSI Preset Off Pressure:175 PSI Differential: 40PSI Can Be Used With Single Or Three Phase

Specifications Model LF10-L4 Color Grey Material Metal Wattage 8625 watts Item Weight 15.2 ounces Actuator Type Hinge Lever Circuit Type 2-way Compatible Devices 2-stage air compressors (100-200 PSI) Shipping & Returns Shipping Same-day shipping. Free shipping for the customer. Returns Free returns. Please contact us before initiating a return.
