Stanford Research Systems SR560 Low-Noise Voltage Preamplifier For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

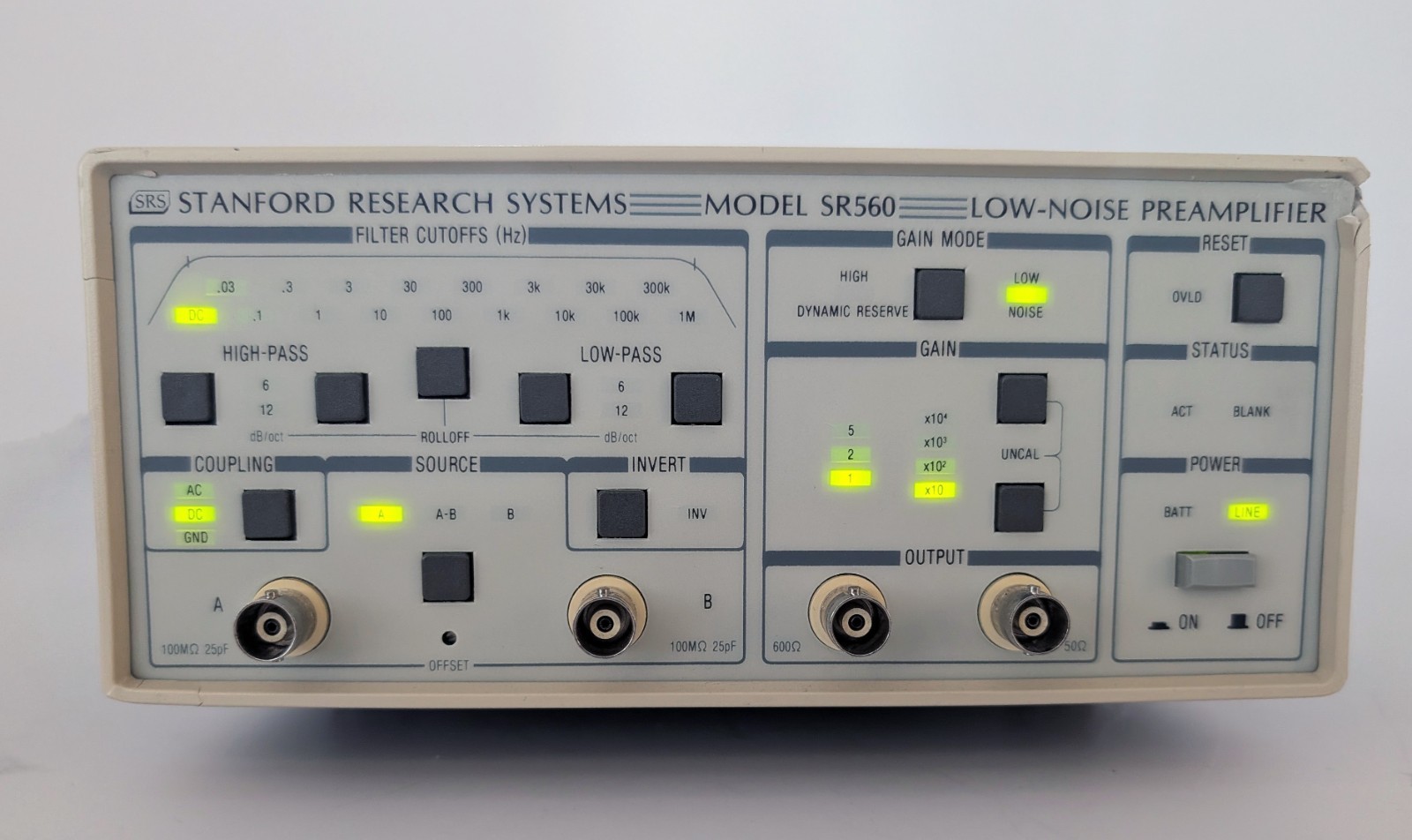

Stanford Research Systems SR560 Low-Noise Voltage Preamplifier:
$1500.00

Bandwidth: DC to 1 MHz
Input Noise: <4 nV/√Hz at 1 kHz
Gain: Selectable from 1 to 50,000 in a 1-2-5 sequence with a 0.5% vernier/percentage adjustment
Inputs: Differential and single-ended inputs with 100 MΩ impedance (25 pF), protected up to 40–100 VDC, using fully floating BNC connectors to prevent ground loops
Outputs: 50 Ω and 600 Ω BNC outputs capable of driving up to 10 Vpp, plus rear-panel ± 12 VDC power supply outputs (200 mA)
Filters: Two first-order RC filters (high-pass, low-pass, or band-pass) with cutoffs settable from 0.03 Hz to 1 MHz
Gain Allocation Modes:

Low Noise mode places gain before the filters to maximize signal-to-noise ratio.
High Dynamic Reserve mode places gain after the filters to prevent signal overloading.

Power Supply: Operates on standard AC line power or built-in rechargeable sealed lead-acid batteries (providing up to 15 hours of operation) Note: The internal batteries in this unit need to be replaced if battery operation is desired. Replacements are available from SRS or from electronics distributors.
Control & Noise Reduction: Features an opto-isolated RS-232 interface and a sleep-mode microprocessor that shuts down its clock oscillator during normal operation to eliminate digital noise. A TTL blanking input is also available to zero the gain externally.
