TREK P0768 High Voltage Power Amplifier w/ HV Output Cable 115VAC:
$2995.00

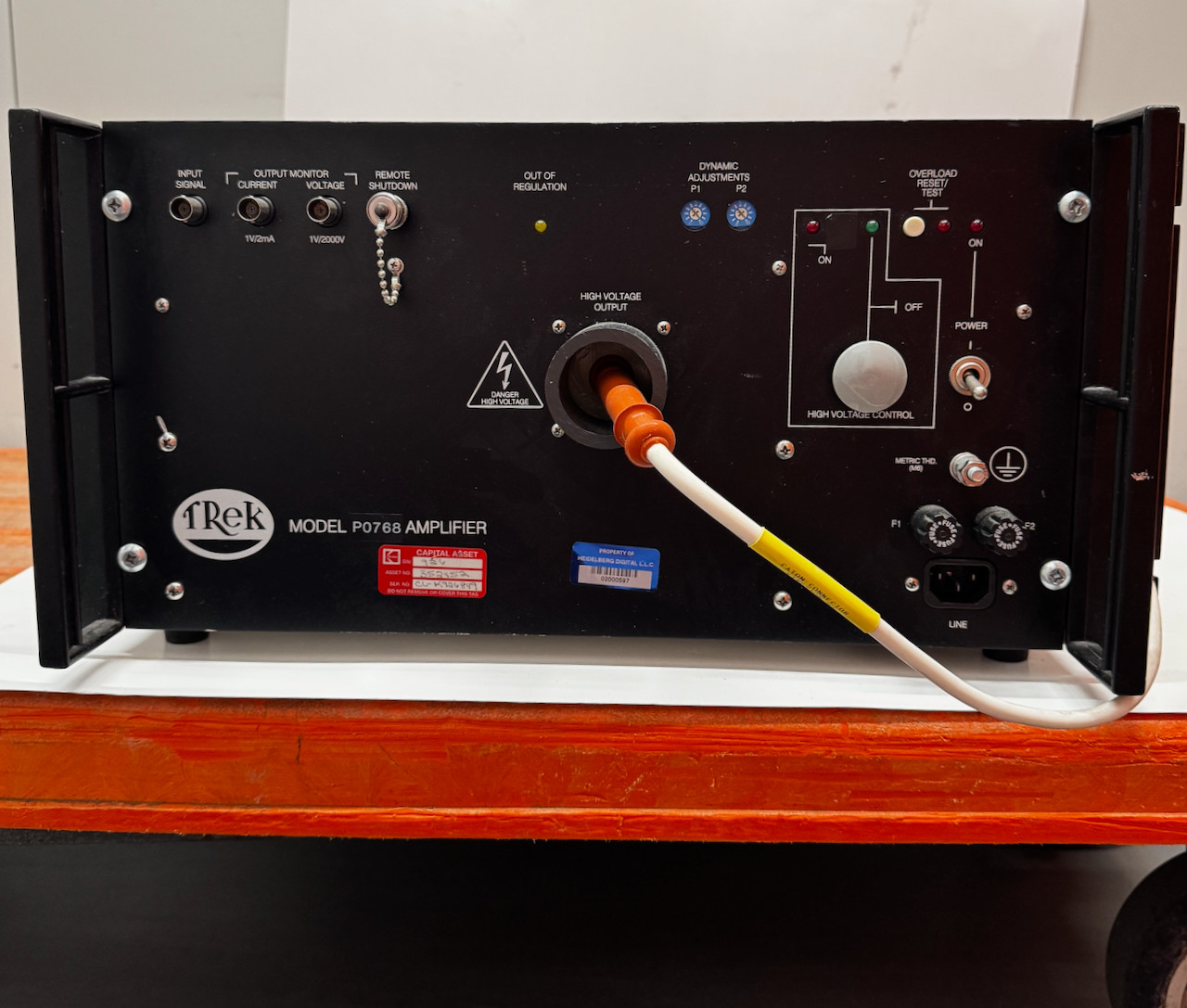

TREK Model P0768 High-Voltage Power Amplifier – Serial No. 171

Offered for sale is a professional-grade Trek P0768 high-voltage amplifier designed for specialized industrial, laboratory, and electronic testing applications.

This unit features front-panel high-voltage controls, signal input and output monitoring connections, overload protection, remote shutdown capability, and dual rear cooling fans.

Specifications and Features:

• Manufacturer: Trek

• Model: P0768

• Serial Number: 171

• Input Power: 115 VAC

• Fuse Rating: 20A, Type S10-B10

• Voltage Monitor Scaling: 1V per 2000V

• Current Monitor Scaling: 1V per 2mA

• High-Voltage Output Connection

• High-Voltage Control

• Remote Shutdown Connection

• Overload Indicator

• Adjustable Dynamic Controls (P1/P2)

• Dual Rear Cooling Fans

• Rack-Mount Configuration

• Made in USA

Condition:

Previously used in a professional equipment environment. The unit exhibits typical cosmetic wear consistent with its age and previous industrial use, including minor scratches, marks, and surface wear.

The amplifier is believed to be functional, but its high-voltage output, calibration, and full operating performance have not been independently verified by the seller.

An older calibration label is present; no current calibration certification is provided.

Included:

• Trek P0768 High-Voltage Amplifier

• Attached High-Voltage Output Cable (as pictured)

No additional accessories or documentation are included unless specifically shown in the photographs.

Please examine all photographs carefully for the exact cosmetic condition, configuration, and included components.

---

---

---
