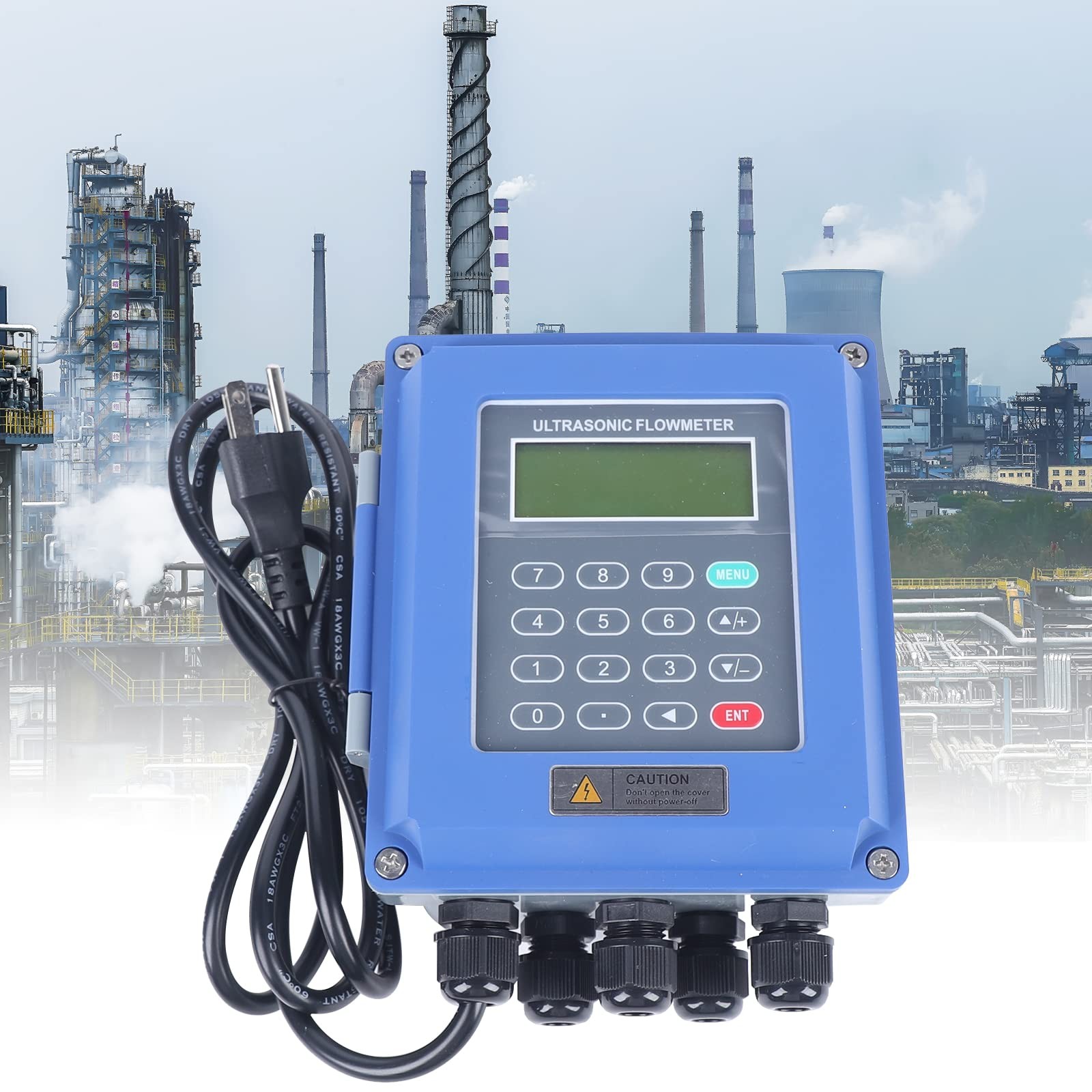

TUF-2000B Ultrasonic Flow Meter Wall-Mount Liquid Flowmeter TS-2 TM-1 Transducer For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

TUF-2000B Ultrasonic Flow Meter Wall-Mount Liquid Flowmeter TS-2 TM-1 Transducer:
$244.24

Standard Packing:1x Tuf-2000B Host2x Steel Belts1x TS-2 Ultrasonic Transducers(20-100mm)1x TM-1 Ultrasonic Transducers(50-700mm)1x 10 Meters Flow Signal Cable1 Set Of Connection Terminal And Screwdriver1x User ManualBasic ParametersMain Unit Protection Level: IP67Transducer Protection Level:IP68Main Unit Working Environment: -20~60°CTransducer Working Environment: -30~90°CHumidity: ≤85%RhAccuracy:≤1%Velocity Range: 0~±10m/s, Bi-Directional MeasurementSuitable Pipe DiameterTS-2 Ultrasonic Transducers20-100mmTM-1 Ultrasonic Transducers50-700mmTemperature: -30~90°CType Of Liquid:Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc.

TUF-2000B Ultrasonic Flow Meter Wall-Mount Liquid Flowmeter TS-2 TM-1 Transducer

Liquid Ultrasonic Flow Meter TUF-2000B DN20-700mm & TM-1 TS-2 SENSOR IP67 ProtectionFeatures:Working Environment

Main Unit

Transducer

Protection Level

IP67

IP68

Humidity

≤85%RH

Temperature

-20~60°C

-30~90°C

Basic Parameters

Main Unit Protection Level: IP67

Transducer Protection Level:IP68

Main Unit Working Environment: -20~60°C

Transducer Working Environment: -30~90°C

Humidity: ≤85%Rh

Accuracy:≤1%

Velocity Range: 0~±10m/s, Bi-Directional Measurement

Suitable Pipe Diameter

TS-2 Ultrasonic Transducers20-100mm

TM-1 Ultrasonic Transducers50-700mm

Temperature: -30~90°C

Type Of Liquid:Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc.

Pipe Material:Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed.

Signal Output:1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay Output

Signal Input: 3 Way 4-20ma Input, Achieve To Heat Measurement By Connecting Pt100 Platinum Resistor.

Interface: Rs485, Support Modbus

Data Storage: SDCard Regularly Store The Pre-Set Results(Without SGCard )

Power Supply: DC8~36V Or AC85~264V

Multiple Installation Methods: Installation Methods:Wall Mounting And Two Ways Of Din-Rail Mounting

Host Size: About 2kg

Standard Packing:

1x Tuf-2000B Host

2x Steel Belts

1x TS-2 Ultrasonic Transducers(20-100mm)

1x TM-1 Ultrasonic Transducers(50-700mm)

1x 10 Meters Flow Signal Cable

1 Set Of Connection Terminal And Screwdriver

1x User Manual
