TUF-2000B Wall Mounted Ultrasonic Flowmeter Digital Water Flow Meter & TM-1 TS-2 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

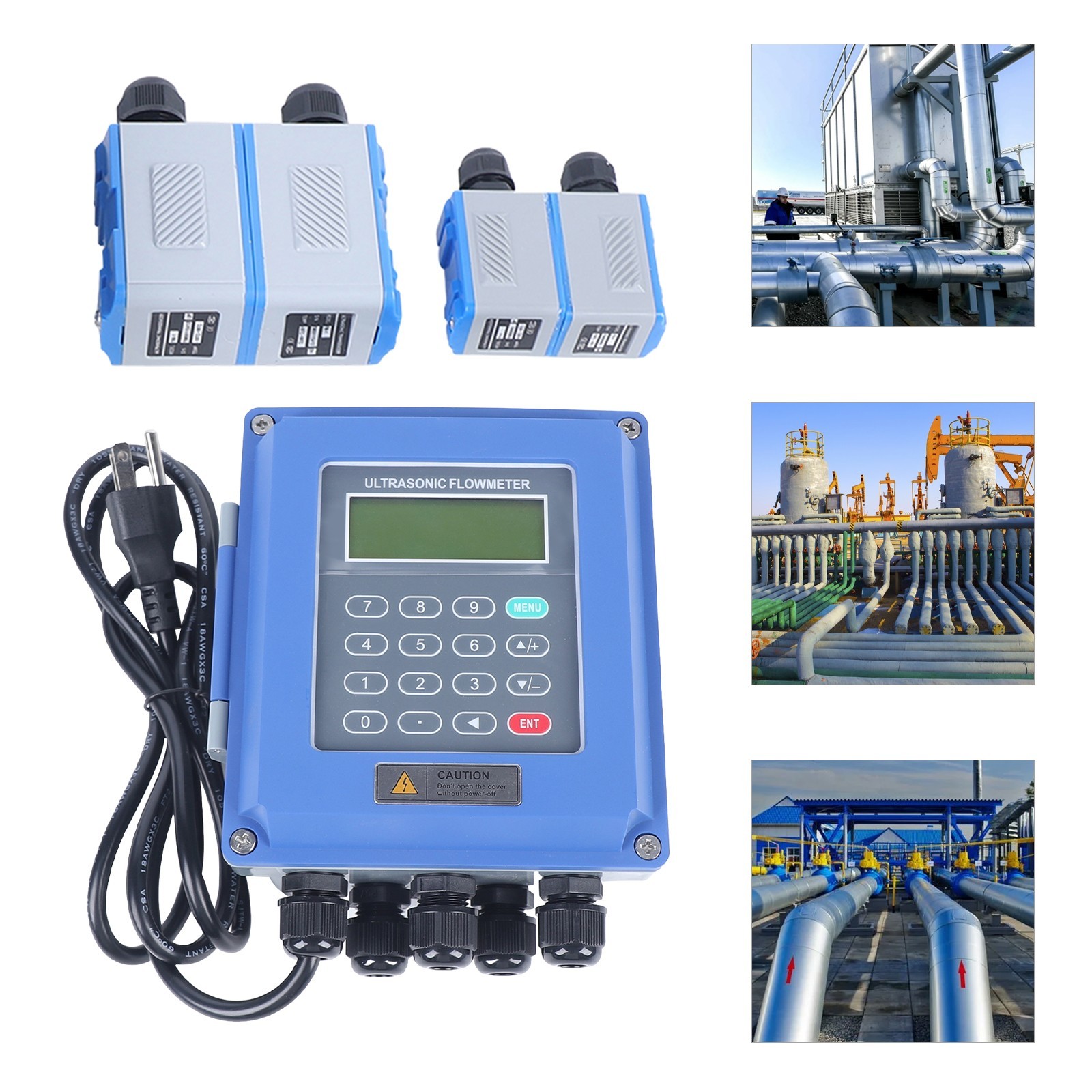

TUF-2000B Wall Mounted Ultrasonic Flowmeter Digital Water Flow Meter & TM-1 TS-2:
$240.01

welcome

Description

This ultrasonic liquid flowmeter is made of high-quality ABS and steel through the injection molding process, which is sturdy and durable. Its measurement accuracy is ±1%, which can accurately measure the flow rate and flow velocity of pipeline liquids. The product adopts non-contact ultrasonic measurement, with a large measuring range, which is not affected by system pressure and harsh environment. It is a good assistant for those who need pipeline liquid measurement!

Key Features

Intelligent Measurement: The product utilizes non-contact ultrasonic measurement to measure flow without damaging the pipe. In addition, it has a large measuring range and can measure offerirectional, so it is not affected by system pressure and harsh environment.

High Precision: With a measurement accuracy of ±1%, the product can accurately measure the flow and flow rate of pipeline liquids, allowing for more accurate data.

Wide Application: The products can be used to measure single liquids that can transmit ultrasound, such as water, seawater, sewage, oil, and alcohol.

Data Recording: The SD card (not included) stores preset results at regular intervals, allowing you to analyze and record your data. It has a built-in coin cell battery for easy accumulation of flow data. As long as the battery voltage is greater than 1.5V, the battery will always work and maintain the correct time value.

High Applicability: A wide voltage range of AC 85~264V and DC 8~36V can be applied to most of the household's electricity needs.

Details

Rounded Corners and Edges: The corners are rounded and smooth to reduce collisions and improve safety.

LCD Display Screen: It can display current flow/heat and accumulated flow/heat at the same time, which facilitates you to understand the data more intuitively.

Application

It is widely used in water supply, heating, water conservancy, chemical, pharmaceutical, energy, and other industries. It is suitable for copper and PVC pipes and can detect the flow of liquids such as seawater, alcohol, river water, industrial wastewater, lubricating oil, diesel fuel, and fuel oil.

Specifications

Material: ABS, Steel
Process: Injection Molding
Style: Modern
Color: Blue
Shape: Rectangular
Assembly Required: Yes
Display Type: LCD
Battery Type: Built-in Coin Cell Battery
Mounting Type: Wall and Rail Mounting
Display Content: Current Flow/Heat, Accumulated Flow/Heat ( Need to be Equipped with the Corresponding Sensor )
Rate Units: Meters, Feet, Cubic Meters, Liters, Cubic Feet, U.S. Gallons, Imperial Gallons, Oil Drums, U.S. Oil Drums, Imperial Oil Drums, U.S. Mega Gallons. ( User Configurable )
Applicable Liquid Type: Single Liquid can Transmit Ultrasonic Waves, such as Water, Seawater, Sewage, Oil, Alcohol, etc.
Applicable Tube Materials: Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Reinforced Plastic, etc. (Lining is Allowed)
Signal Output: 1 x 4-20ma Output, 1 x Oct Pulse Output, 1 x Relay Output
Signal Inputs: 2 x 4-20ma Inputs for Heat Measurement by Connecting Pt100 Platinum Resistors
Interface: Rs485 with Modbus Support
Data Storage: SD Card for Periodic Storage of Preset Results (Without SD Card)
Main Host Protection Grade: IP67
Sensor Protection Grade: IP65(Potting up to IP68)
Host Working Temperature: -20~60°C/-4~140℉
Sensor Working Temperature: -30~90°C/-22~194℉
Humidity: ≤85%Rh
Accuracy: ±1 %
Repeatability: 0.20%
Flow Rate Range: 0~±10m/s
Applicable Tube Diameter: TS-2 Ultrasonic Sensor 20-100mm/0.78-3.94in, TM-1 Ultrasonic Sensor 50-700mm/1.97-27.56in
AC Wide Voltage: AC85~264V
DC Wide Voltage: DC8~36V
Flow Signal Cable Length: 10m/32.81ft
Each Ultrasonic Transducer Width: 8.5cm/3.35in
Host Length: 15.6cm/6.14in(Back), 13.2cm/5.2in(Front), 15cm/5.91in(Left), 9.4cm/3.7in(Right)

Package Included

1* Tuf-2000B Host
2* Steel Belts
1* TS-2 Ultrasonic Transducer(0.78-3.94in)
1* TM-1 Ultrasonic Transducer(1.97-27.56in)
1* 32.81ft Flow Signal Cable
1 Set * Connection Terminal
1* English Manual
All Accessories for Assembly

Notes

1. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
2. To avoid signal reduction and improve anti-jamming ability, it is better to use the customized signal cable from the flow meter manufacturer.
3. The temperature and humidity of the working environment should be in the range of technical specifications. Avoid direct sunlight on LCD.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
