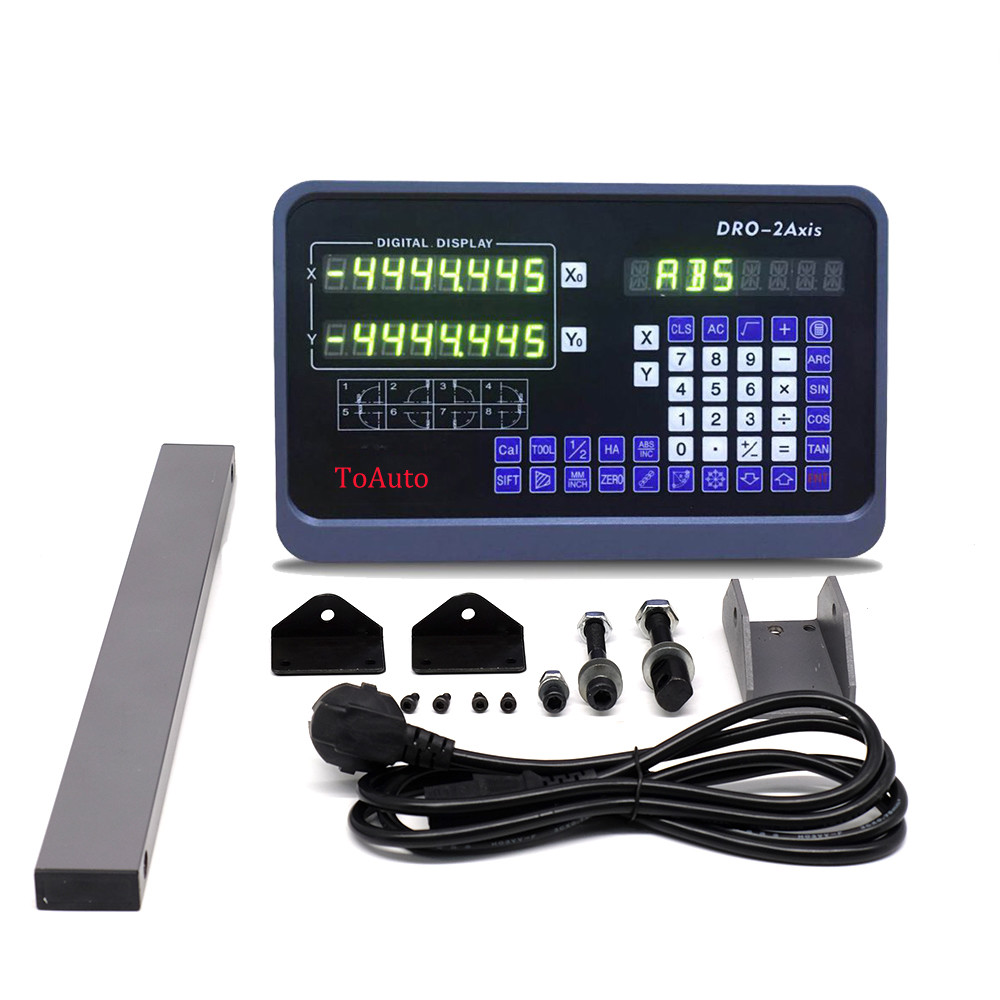

ToAuto DRO 1um Linear Scale Digital Readout 2/3 Axis for Bridgeport Mill Lathe:
$102.29
Supply Voltage range : AC 80V~260V; 50~60HzPower consumption: 15VAOperating temperature: 0~45 degree centigradeStorage temperature: -30~70 degree centigradeRelative humidity: Less than 90%Readout allowable input signal: TTL square waveAllowable input signal frequebcy: Less than 5M HzMax resolution of digital display length: 1µm (0.001mm/0.0001")Min resolution of digital display angle :0.0001/pulseDigital Readout Dimensions:295*170*65mm (11.6"*6.7"*2.56")Linear Scale Interface: DB9(RS232)Display Advantage: Having a good capacity of resisting disturbance,durable keyboard,easy to changeSDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering PCD functionR functionSmooth R functionThe simple R functionChambering (applicabDROmustbesettocompletelymatch
thelinearscaleaccuracy. circumferenceholesprocessing,linear
holesprocessing,ARCprocessing,oblique processing, slope processing,chamber processing, R function,the tool diameter compensation function, digitalfilter ,radius/diameter,mm/inchetc. />through9pinsconnector.Pin 1 to 4 connects +5V, 0V, A, BPin 5-9 is blank. DOUBLE SEAL & SIGNAL ABLE REPEATING POSITIONING FULL SET ACCESSORIESSignal cable uses multilayer shielded wire steel and metal shell to provide extra protection . Deafult offer 3meters (9.84feet long) cable connecting with linear scale.
Sensor adopts the precision metrology grating as the measurement standard. And the sliding parts have excellent repeatable positioning performance.
Full set of installation accessories (L type cover, backplate and screws ) included inside the linear scale , each scale equipped with some extra screws to avoid unsccessful installation .
Specifications & Functions :Applications: Milling Machine, Lathe, EDM, Grinder etc. Power : AC80V~260V,50~60Hz, US plug Power consumption: 15VA Operating temperature: 0~45℃ Storage temperature: -30~70℃ Relative humidity: Less than 90% Readout input signal: TTL square wave Input signal frequency: Less than 5M Hz Resolution : 1µm (0.001mm/0.0001") Min resolution of DRO angle :0.0001/pulse DRO Dimensions: 11.6"X6.7"X2.56" Linear Scale Interface: DB9(RS232) SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centeringABS/INC,Metric and Imperial Switching(MM/INCH) ,Value Inputting PCD function R function Smooth R function The simple R function Chambering (applicable to: Milling machine,Boring machine) Tool compensation (for lathe) Machining of oblique planeFeed Rate, Rotational Speed Measurement Calculator PACKAGE INCLUDED :
1pc DRO Or 1pc Linear Scale (Travel Length 100/150/200/250...1000MM)
1SetInstallationAccessories 2AXIS DRO3AXIS DRO2AXIS DRO LCD SCREEN3AXIS DRO LCD SCREEN FAQ:
Answer:allaretravellength
Q4:HowtoswitchMilltypetoLathetype?
Answer : Please contact ToAuto to get the video . (press 6 times after DRO powers on)
Q5: How do I choose the right scale for my machine (e.g., Klutch Mini Mill/X2)?
A: You should match the Travel Length of the scales to the maximum travel range of your machine's X, Y, or Z axis. Always ensure your machine has enough physical clearance to accommodate the Total Length (Travel + 140mm).
Q6: What type of interface does the unit have? Can I use scales with my existing dro?
A: Our units use a standard DB9 (9-pin) connector. The pinout configuration is: Pin 1: +5V, Pin 2: 0V, Pin 3: A-signal, Pin 4: B-signal (Pins 5-9 are vacant). Please verify this matches your existing equipment; if it does not, please contact our customer service.
Q7: Can I shorten the linear scale to fit my milling machine?
A: Yes, the scale can be trimmed, but this requires precision. If the scale is too long for your application, please contact our customer service to obtain a step-by-step video guide on how to properly shorten it without damaging the internal glass components.
Q8: Do you have Installation Manual ?
Answer : Yes, Please contact the customer service to get the video. (The file is too large to upload here )
