Top Grade 110V 270L Precision Measuring Chamber Salt Spray Measuring Testing US:
$2944.38

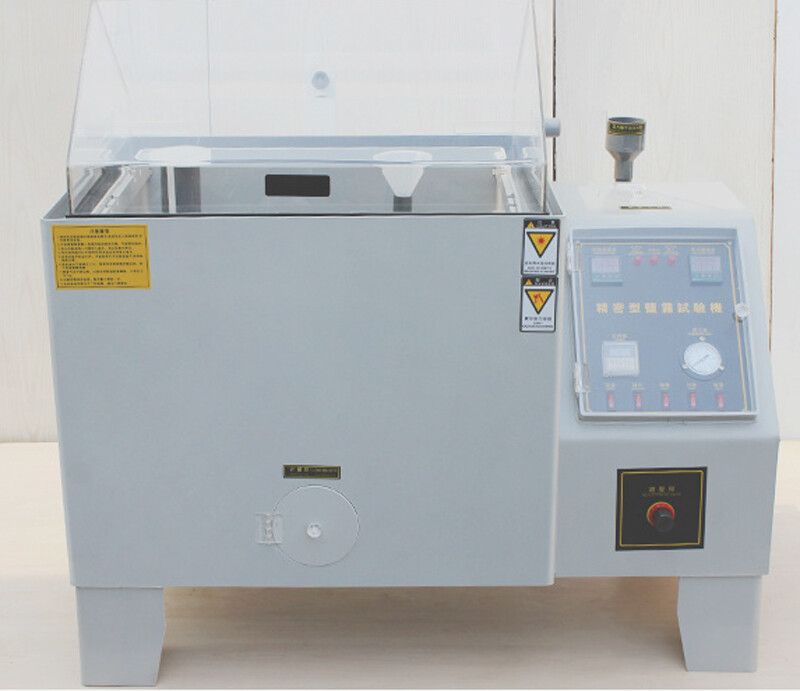

High Quality Salt Spray Testing Chamber

Please note that there are two color control panels are shipped randomly.

Voltage: 110V
Laboratory volume: 270L
Inner size: 900*600*400mm
Outer size: 1390*830*1100mm
Spray method: continuous

Application:It\'s used to test the corrosion resistance ofthe electrodeposited coating of many kinds of metallic materials.Use thesalt spray test machine to spray the Sodium Chloride Solution to thesurface of electric coating to achieve the purpose of detection.Thematerial is stainless steel.

²Equipment:

All equipmentneeded in the test:Spray nozzle, salt water barrel, test piece support,spray liquid collection container, test chamber, salt water, supplytank, pressure tank,supply equipment and exhaust equipment required forcompressed air,the device is shown in Fig, and test as followed.

üBluntmaterial is required, it is required that the material itself cannot becorroded, and it can not affect the corrosion test.

üThefog nozzle cannot spray the test liquid directly to the sample, thesolution at the top of the spraying chamber cannot dropon the testpiece.

üThetest liquid dropped from test piece cannot flow back to the salt bucketagain for the test.

üThesolution should not contain grease and dust, so you have to prepare anair cleaner.

üSprayliquid should be collected at least 16 hours,an average per hour canbe collected 2ml to 1ml solution. Use the final averageto represent theamount of spray.

üTheconcentrationof the Sodium Chloride Solutionshould be maintainedat40~60g/L.

üThetemperature of the pressure barrel should be kept in 47+1 degree,temperature of the brine barrel should be kept in 35+1 degree.

Sample placement:

If you need to test many pieces,make sure that every major surface can be detected by salt fog at thesame time.

Permutation of samples, the sprayshould be free to drop on all the test pieces, preventing the situationof blocking the spray.

Each sample cannot be in contactwith each other.

Salt spray can’t drop from one testpiece to another one.

Sample identification mark should bemarked onthe bottom of the test piece.

Description:

Spray method:

Adopting bernoute principle to absorb brine and then atomize, the degree of atomization is even, no blocking phenomenon of crystallization, can ensure the standard of continuous test.

Nozzles: made of special glass nozzles, the size of the spray can be adjusted.

Spray flow rate adjustment 1-2m1 (m1/8ocm\'/nh) (16-hour average)

Spray mode: continuous type

Adopt the direct heating method, the heating speed is fast to reduce the standby time, when the temperature reaches ON. OFF switching, accurate temperature, less power consumption.(heating tube is made of high corrosion resistance heating system: titanium tube).

Meet the standard:

GB/T 2423. 17-1993 Salt spray test GB/T 2423. 18-2000 Salt spray test GB/T 10125-1997 Salt spray test IEC68-2-52 1996 Salt spray test ASTM. B117-97 Salt spray test GB. 10587-89 Salt spray test IEC68-2-11 Salt spray test JIS H8502 Salt spray test CNS. 4158 Salt spray test CNS. 4159 CASS Accelerate the spray test of cupric acetate GB/T 12967.3-91 CASS Accelerate the spray test of cupric acetate GB/T 1771-2007 Neutral salt spray performance test of paints and varnishes Items include:ItemDescriptionQTY　239165Salt spray testing chamber 110VV1set
