On eBay Now...Two Speed Single Acting 10,000 psi Hydraulic Hand Pump Williams #JHW5HS2S200 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

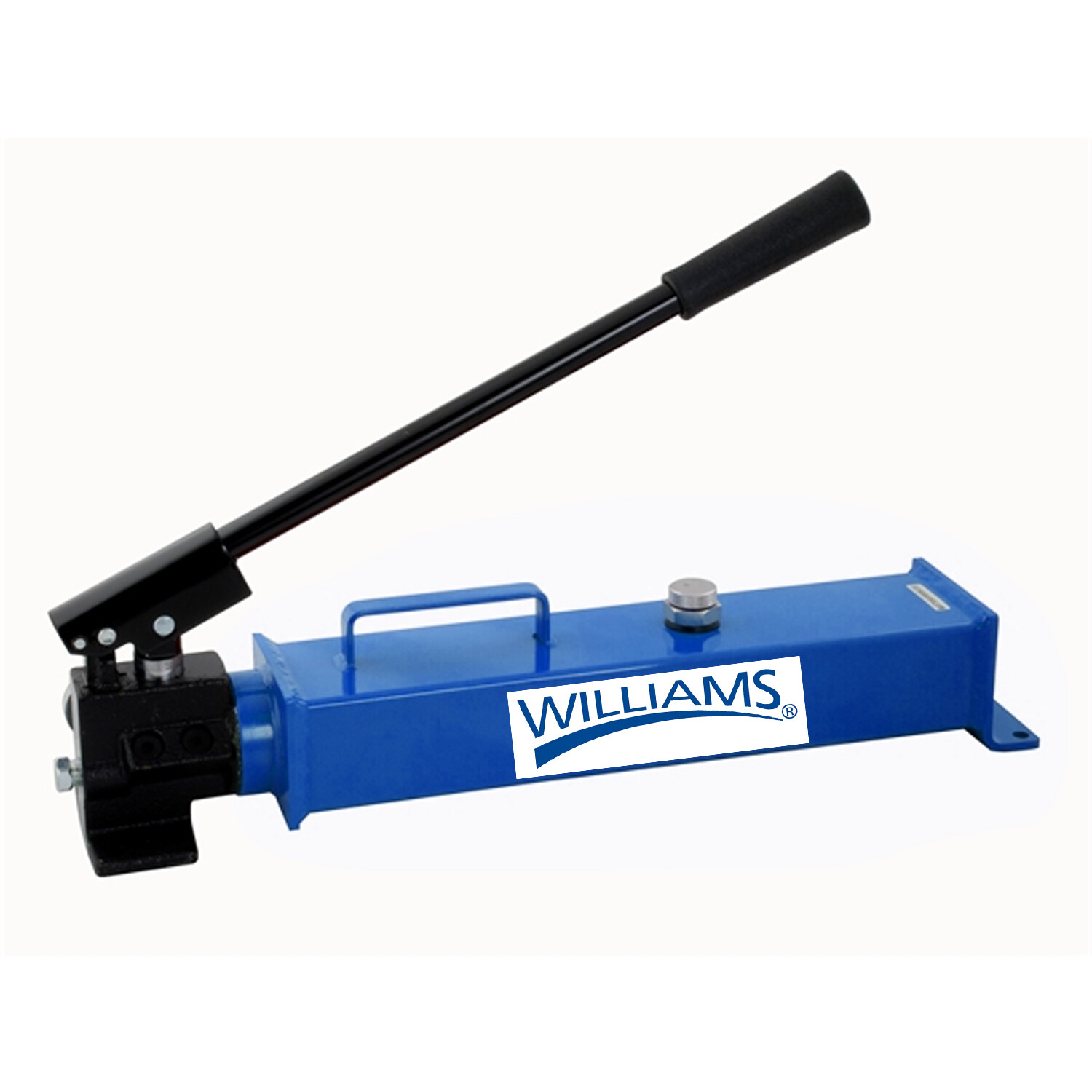

Two Speed Single Acting 10,000 psi Hydraulic Hand Pump Williams #JHW5HS2S200:
$1576.96
Two Speed Single Acting 10,000 psi Hydraulic Hand Pump With Hand Knob Release Valve For Controlling Single Acting Cylinders. Oil Capacity: 128 cu in. 3/8-18 NPTF Oil Outlet. Williams Degree #JHW5HS2S200. Under no load or 1st stage condition, the pump operates in high flow for rapid advance. When load is contacted, the pump will automatically shift to the 2nd stage for building pressure. When pump pressure reaches approximately 200 psi, you must momentarily stop pumping and raise the handle to shift to the high pressure stage. After the pump shifts, pumping takes less effort. NOTICE: operate pump handle at slower speed during the high flow 1st stage to ensure the pump delivers maximum oil volume.
- SINGLE ACTING HAND PUMPS
- Two speed operation increases productivity and reduces user fatigue
- Constructed of high strength steel for durability
- Pressure relief valve for overload protection
- Load release valve for single acting cylinder usage
- Large oil capacities to power a wide range of cylinders and tools
- Hand pump will function in horizontal positions and will also function in vertical position with oil outlet port facing downwards
- Maximum working pressure: 10,000 psi / 700 bar
