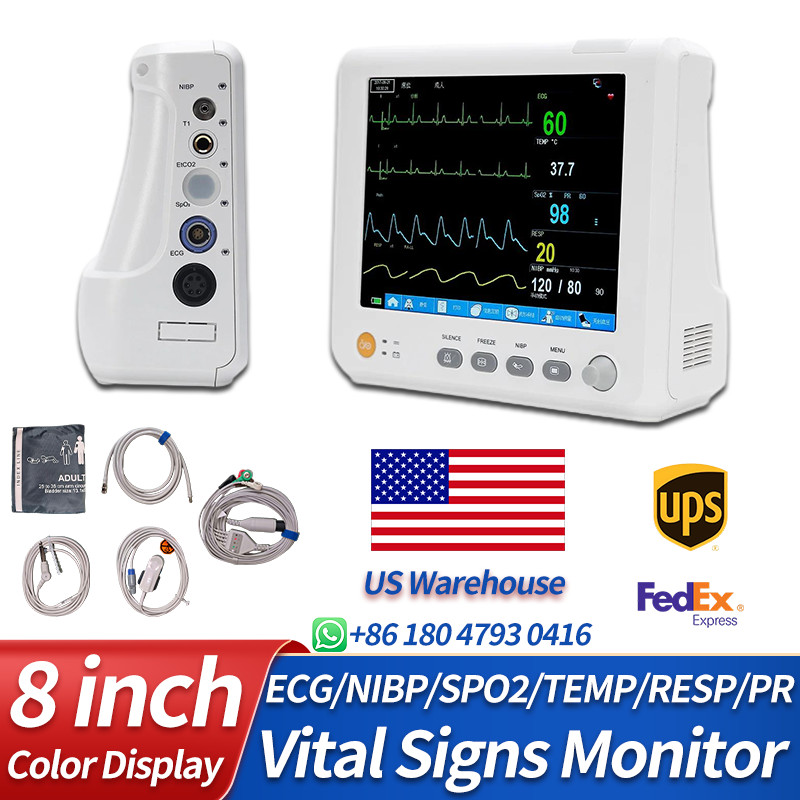

US Warehouse 8-inch Portable Patient Monitor Multi-parameter Vital signs monitor For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

US Warehouse 8-inch Portable Patient Monitor Multi-parameter Vital signs monitor:
$345.00

Electrical Specifications:

Operating Temperature: 5°C ~ 40°C
Power Supply: 220VAC, 50Hz
Maximum Output Power:
Working Humidity: 15% ~ 80%
Battery: 7.4V 2200mAh rechargeable lithium battery
Atmospheric Pressure: 86kPa - 106kPa

Product Size:

Dimensions: 210 * 85 * 180 mm
Weight: 1.2 KG

Product configuration description

* 8 inch high-resolution color screen
* Exquisite design, suitable for moving operation.
* Various interfaces:standard screen, trend screen, oxyCRG screen, big front screen.
* Real-time S-T segment analysis, pace-maker detection
* Up to 400 groups NIBP list, 60 alarm event records recall,7-day trend chart in storage
* Indication of incorrect manipulation and malfunction analysis
* Capture 2-hour dynamic trend.
* Built-in rechargeable lithium battery, 2-hour working capability

Standard Configuration:

SpO2, PR, NIBP, ECG, RESP, TEMP

Parameter Description

NIBP:
Method: Oscillometry

Modes: Manual/Auto/Continuous

Auto measure time: Adjustable

Measurement rang: 10-270mmHg

ECG:
Lead mode: 3-lead or 5-lead

Lead selection: I, II, III, avR, avL, avF, V

Heart rate range: Adult: 15-300bpm, Pediatric/Neonatal: 15-300bpm

ECG waveform: 2 channels

Accuracy: 1 bpm or 1%

S-T segment detection Measurement range:-0.2mv~2.0mv

Alarm: Yes, audible and visual alarm, alarm events review

SPO2:
Measurement range: 0-100%

Accuracy: 70-100%, 2% 0-69%, unspecified

Pulse rate:
Range: 20-254bpm

Accuracy: 3bpm

Respiration:
Method: RA-LL impedance

Range: Adult:0-120rpm; pediatric/neonatal:0-150rpm

Apnea alarm: Yes

Temperature:
Range: 0-50

Apnea: 0.1

Channel: Dual-Channel

EtCO2 (option, not included, you should buy it if you need):
Measurement Mode: Side-stream or mainstream

Measurement range: EtCO2: 0-99mmHg

Accuracy: CO2 concentration

Apnea alarm: YES

IBP (option, not included, you should buy it if you need):
Channel: 2 channels

Pressure transducer: Sensitivity: 5( mV/V/mmHg)

Transducer sites: ART, PA, CVP, RAP, LAP, ICP

Alarm range: -10~300mmHg

Standard parameter & configuration:
3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR
