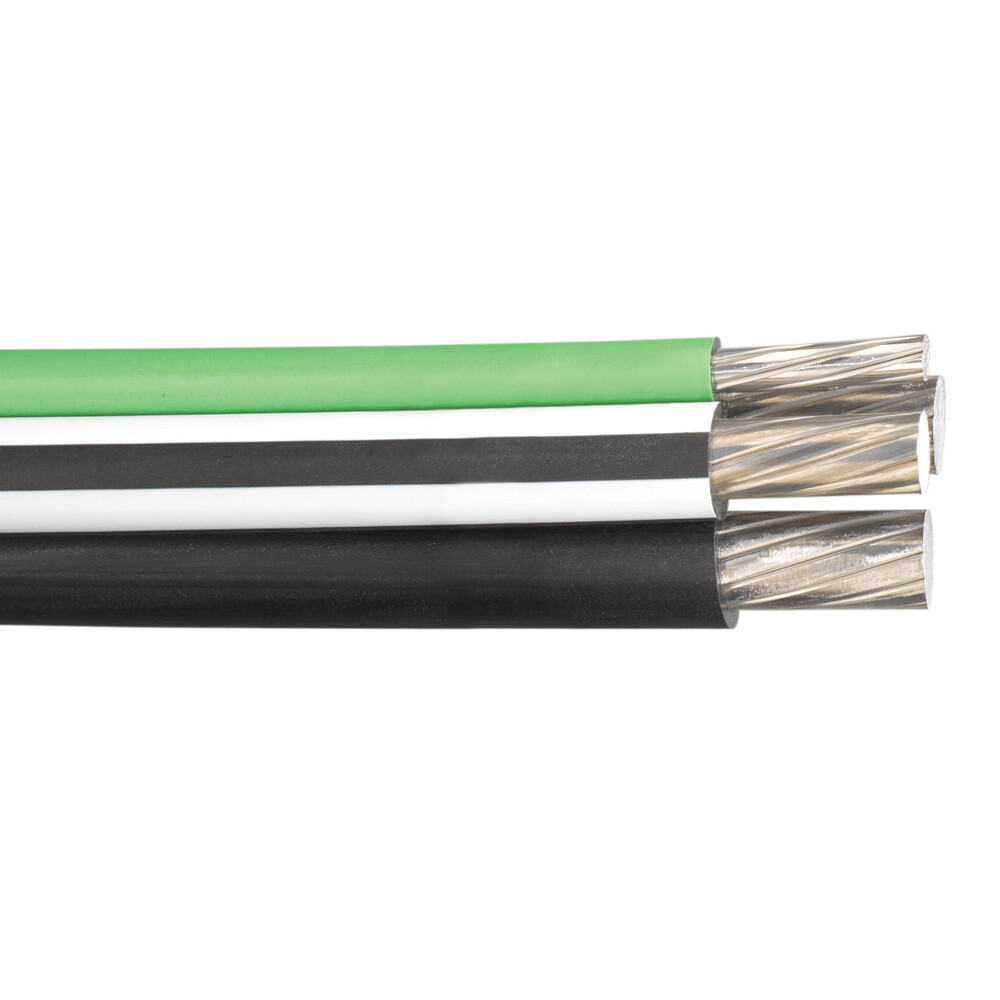

• 2-2-2-4 Mobile Home Feeder cable is designed for mobile homes as a service entrance cable. The cable is sunlight resistant and is approved for use in accordance with the recommendations of the National Electric Code in raceways and underground installations. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts.
CONDUCTOR• Compact Stranded AA-8000 Series Aluminum Conductor, per ASTM B-800 & B-801
INSULATION• Type USE-2/RHH/RHW-2 Cross-Linked Polyethylene (XLP) insulation.
• It has Four Conductors including two phase conductors,one neutral and one ground. The neutral conductor isidentified by three continuous white longitudinal stripes.The grounding conductor is identified by total green surfacecoating
STANDARDS• UL 44 for Type RHH or RHW-2
• UL 854 for Type USE-2 Insulated Wire
• National Electrical Code NFPA 70 (NEC)
• ICEA S-95-658/NEMA WC-70
• Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy.
PRODUCT SPECIFICATIONSPhase Conductor Size 2 AWGNeutral Conductor Size 2 AWGGround Conductor Size 4 AWGInsulation Thickness (inches) 0.060Overall Diameter (inches) 0.909Ampacity 100 AmpsWeight (Lbs/1000ft) 345ShippingNeed the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
responseresponse will be left as soon as response is left for us.
2-2-2-4 Aluminum SER (100 Amp) Service Entrance Cable Lengths 50ft to 2500ft
$306.00
2-2-2-4 Aluminum Mobile Home Feeder Direct Burial Cable (100 Amp) 600V
$495.00
Dyke 2-2-2-4 Aluminum URD Secondary Distribution Direct Burial Cable 600V
$370.00
