Gain

Postby crvpt » Mon Apr 07, 2014 1:01 am

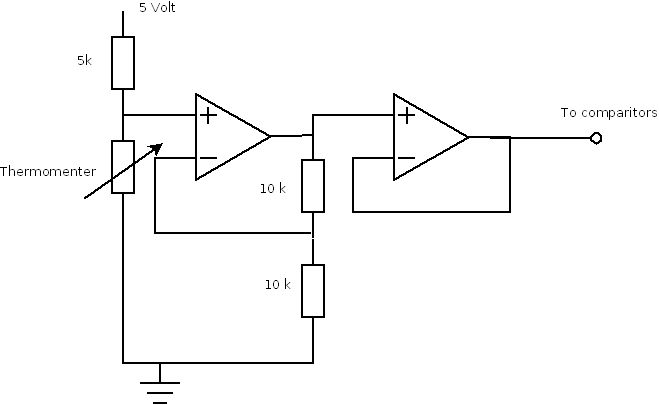

Hi, how do I work out the gain of this circuit? Thanks. [attachment=0]
[/attachment]
crvpt

Posts: 1
Joined: Mon Apr 07, 2014 12:56 am
Top

Re: Gain

Postby pebe » Mon Apr 07, 2014 9:43 am

If R! is the top 10K resistor and R2 is the bottom 10K, then the gain of the 1st stage = (R1+R2)/R1 = 20K/10K = 2. The gain of the 2nd stage =1, so overall the gain = 2 x 1 = 2
pebe

Posts: 1058
Joined: Tue Dec 09, 2003 11:12 pm
Location: Ellon, Scotland
