(ICM716) ECM TO PSC MOTOR CONTROLLER OEM REPLACEMENT QUIKSWAP X3 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

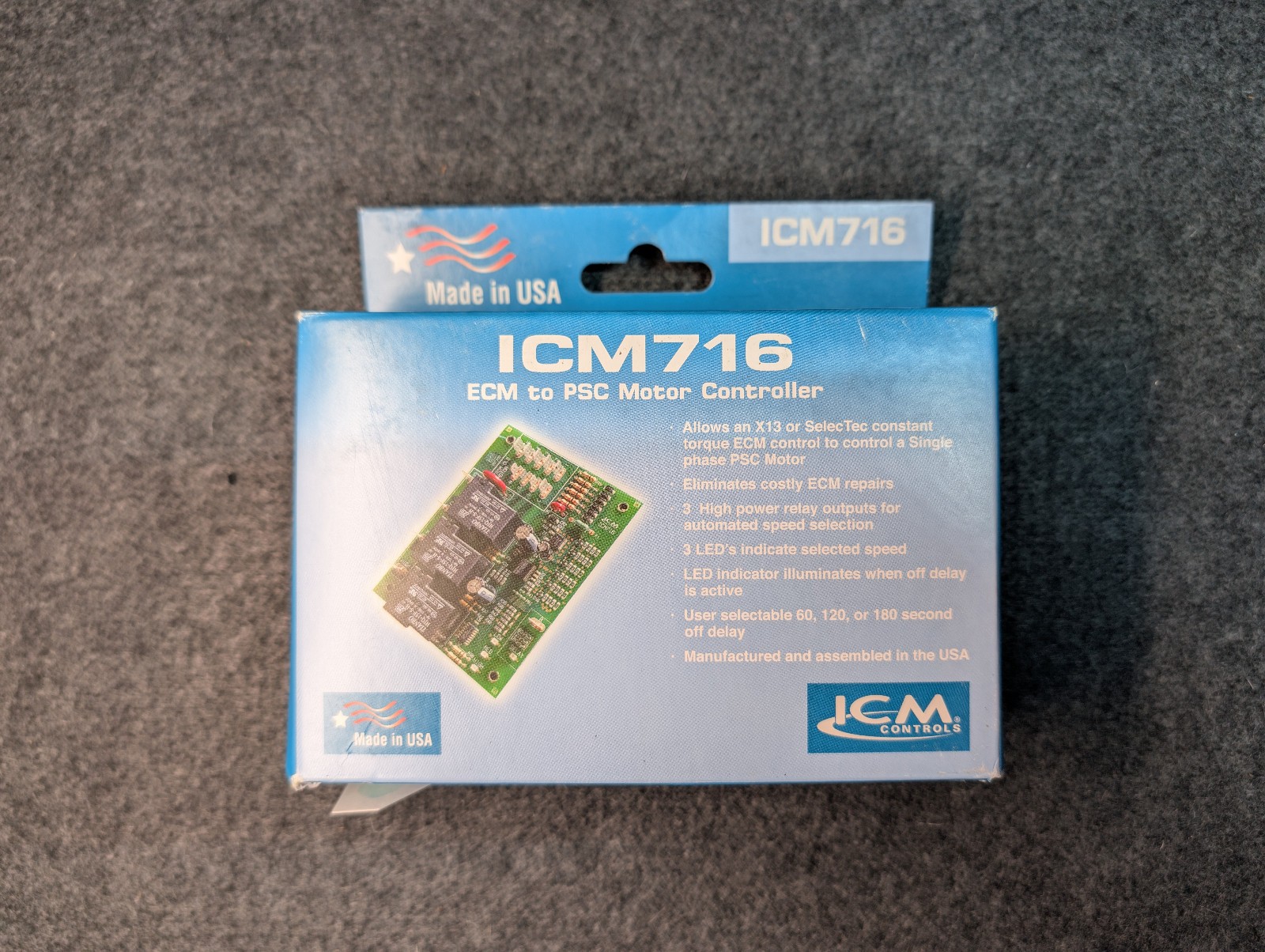

(ICM716) ECM TO PSC MOTOR CONTROLLER OEM REPLACEMENT QUIKSWAP X3:
$76.99

Opened to photograph component.

The ICM716 allows a technician to change out an X13 or SelecTech constant torque ECM rated up to 1 HP with a single phase PSC motor and variable speed control board operating at an optional technician selected purge time.

Allows an X13 or SelecTec constant torque ECM control to control a Single phase PSC motor

Eliminates costly ECM repairs

3 High power relay outputs for automated speed selection

3 LED’s indicate selected speed

LED indicator illuminates when off delay is active

---

---

---

(ICM716) ECM TO PSC MOTOR CONTROLLER OEM REPLACEMENT QUIKSWAP X3

$79.99

---

(ICM716) ECM TO PSC MOTOR CONTROLLER OEM REPLACEMENT QUIKSWAP X3

$76.99

---

ICM Controls ICM716 ECM to PSC Motor Controller

$696.35

---
