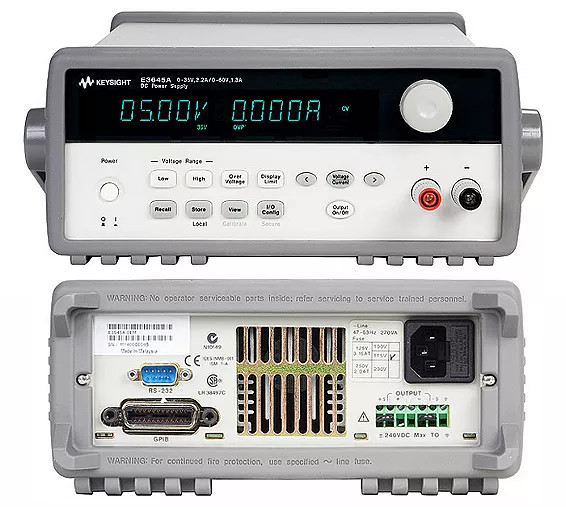

🔥SaleUpTo 70%🔥 KEYSIGHT E3645A 80 W Power Supply 35 V, 2.2A or 60 V, 1.3 A:
$825.99

Highlights Output ratings (0 °C to 40 °C)

Range 1: 0 to 35 V / 2.2 A
Range 2: 0 to 60 V / 1.3 A

Programming accuracy (25 °C to ±5 °C), ± (% output plus offset)

Voltage: < 0.05% + 10 mV (< 0.1% + 25 mV for output two of Keysight models E3646A, E3647A, E3648A, E3649A
Current: < 0.2% + 10 mA

Ripple and noise 20 Hz to 20 MHz

Normal mode voltage: < 8 mVpp / 1 mVrms
Normal mode current: < 4 mArms

Readback accuracy (25 °C to ±5 °C), ± (% output plus offset)

Voltage: < 0.05% + 5 mV (< 0.1% + 25 mV for output two of models E3646A, E3647A, E3648A, E3649A)
Current: < 0.15% + 5 mA (< 0.15% + 10 mA for output two of models E3646A, E3647A, E3648A)

The E3645A 80 W bench power supply has dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The E3640 Series has models with single and dual outputs — easily automate tests with GPIB or RS232.
