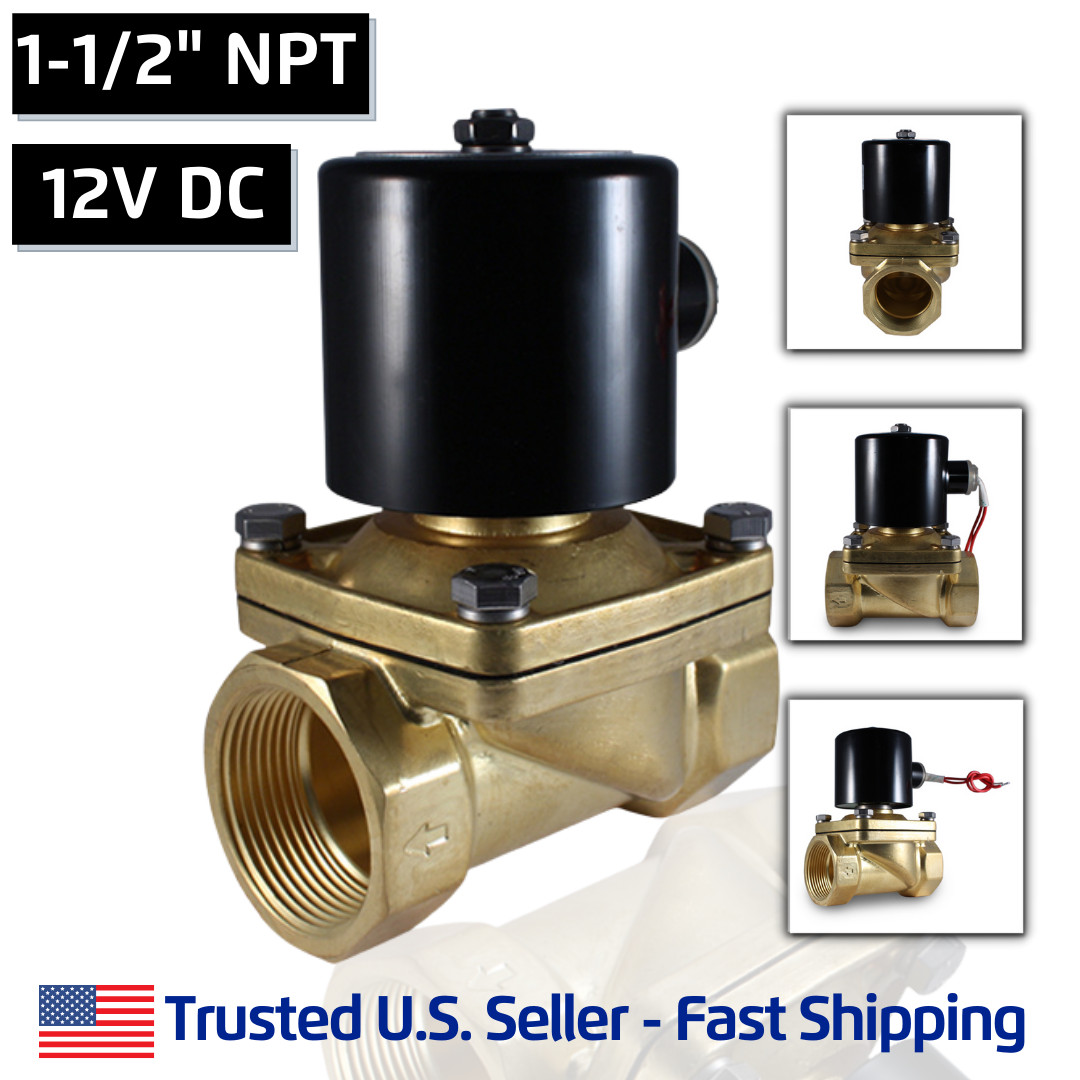

1-1/2" 12V DC Electric Brass Solenoid Valve Water Air Gas 12 VDC - For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

1-1/2" 12V DC Electric Brass Solenoid Valve Water Air Gas 12 VDC - :
$223.90

Untitled Document

Normally Closed – Opens when power is applied

Gravity Feed Capable – No Minimum Pressure

12 Volt DC Solenoid Valve Function Normally Closed Connection 1-1/2” Inch FNPT Temperature Range 15 – 250°F Pressure Range 0 – 90 PSI Power Requirements 40 Watts *Suitable Media
Water – Air - Etc
Specifications Body Material Brass Components Stainless Steel Seal Material Viton Diaphragm Operation Type Semi-Direct Lift Valve Coil Connection 5.5" Lead Wire Orifice Size 40 mm Cv Value 29 *Duty Cycle 100% but not indefinitely Weight 4 lbs 14 oz Height 6.00" Length 4.33" port to port Width 3.35"

Connection – NoPolarity, + and – can be interchanged.

The valve timing isuncertain, however it is fast acting. Less than one second.

Mounting position ispreferably coil up but can be mounted in any position.

*Consult a chemicalcompatibility expert for correct seal and valve body material choice.

*Duty Cycle – Likemost solenoid valves the coil will become hot to the touch when left oncontinuously. The temperature will stabilize without failure. Leaving the valvepowered on for long periods of time will reduce the life of the coil. Wheneverpossible the valve should be installed in a well ventilated are to increase thelife of the coil. The valve is not intended to be left energized as a fail-safefor power outages. In this case please contact us for other options.

A pre-filter isalways recommended to keep the diaphragm free from debris and the valvefunctioning properly.
