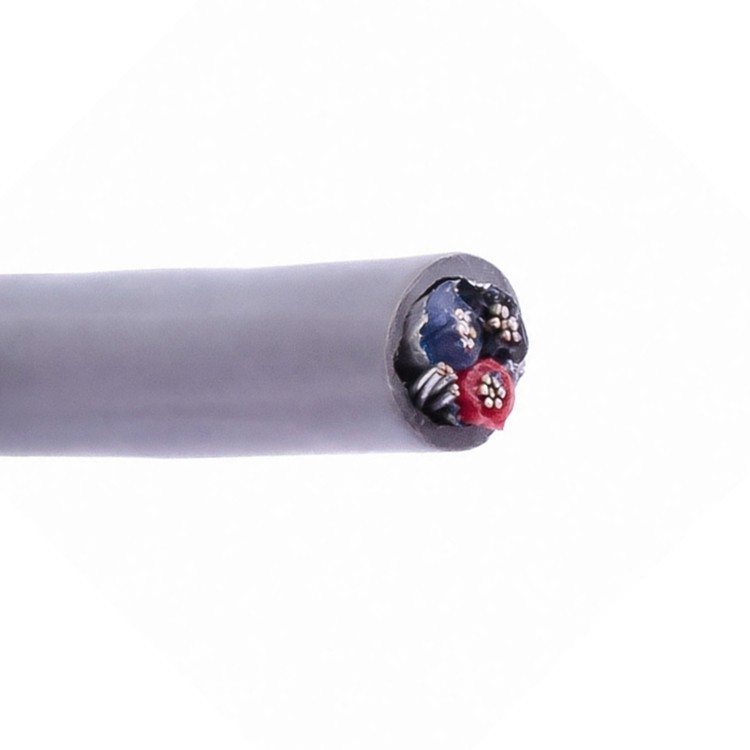

100' Carol C2525A 20 AWG 3 Conductor Foil Shield UL 2093 Control Cable 300V Click Thumbnails to EnlargeDESCRIPTION

• Carol C2525A 20 AWG 3 Conductor Foil Shield Communication & Control Cable 300V

APPLICATIONS

• Recording Studios and Sound Stages
• Broadcast and Sound Systems
• Computers
• Industrial Equipment Control

FEATURES

• Excellent Electrical Properties
• Superior Shielding Effectiveness
• 25% Shield Overlap provides Excellent Shielding Efficiency
• Good flexibility

CONDUCTOR

• Fully Annealed Stranded Tinned Copper per ASTM B-33

INSULATION

• Polyethylene (PE)

SHIELD

• 100% Flexfoil Aluminum/polyester, 25% overlap, foil facing out
• Stranded tinned copper drain wire

JACKET

• Gray PVC Jacket
• Temperature Range: ‑20°C to +75°C

COLOR CODE

• Black, Natural & Red

COMPLIANCES

• UL Style 2093 (UL: 60°C, 300V)
• NEC Article 800 Type CM (UL: 75°C)
• RoHS Compliant Directive 2002/95/EC
• Designed to meet UL 70,000 BTU Vertical Tray Flame Test
• CSA CMH (CSA: 60˚C)
• Passes CSA CMH Flame Test

PRODUCT SPECIFICATIONSSize AWG 20Number of Conductors 3Number of Strands 7Insulation Thickness (inch) 0.016Jacket Thickness (inch) 0.030Overall Diameter (inch) 0.213Capacitance (pF/ft) [A] 21.00Capacitance (pF/ft) [B] 37.00CUT TO LENGTH (**Wire & cable items only**)

If you are looking for any Custom Lengths? Please feel free to contact us.We Can do all Cut Lengths.

OTHER VALUE ADDED SERVICES

• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages

Shipping

***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note 's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
