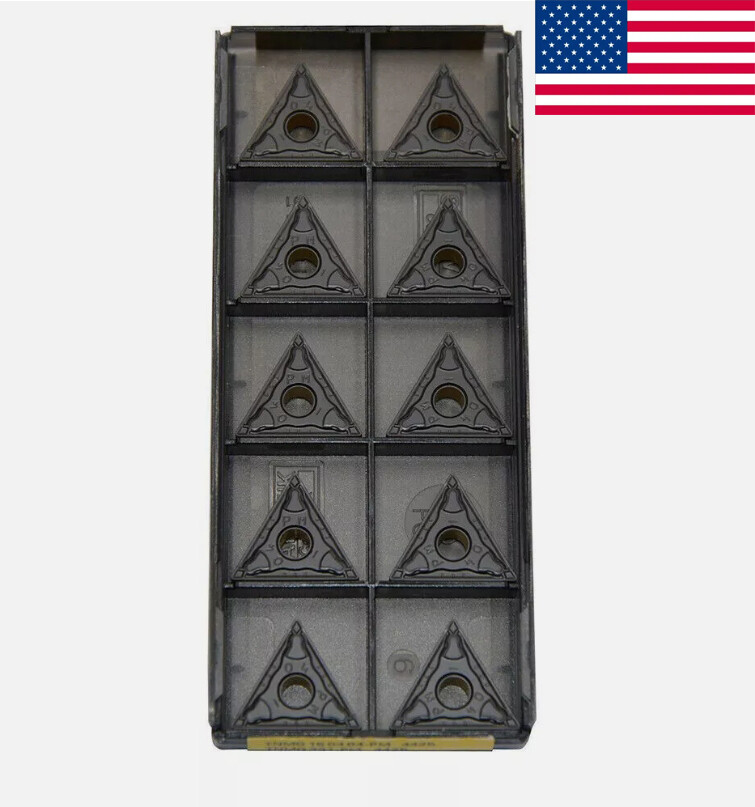

10PCS TNMG331-PM Lathe turning tool TNMG160404-PM 4225 CNC Carbide inserts USA For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

10PCS TNMG331-PM Lathe turning tool TNMG160404-PM 4225 CNC Carbide inserts USA:
$29.99

10PCS TNMG331-PM Lathe turning tool TNMG160404-PM 4225 CNC Caroffere inserts USAApplicable materials:Can be used for processing ordinary stainless steel and steel partsDiameter of inscribed circle:9.525mm/0.375inCutting edge length:16.5mm/0.65 inchBlade thickness:4.76mm/0.1875inch
Blade tip radius: 0.4mm/0.0157inchAngle parameter:
Top angle: 60 °
Rear angle: 0 °Material: Hard alloy
Coating: 4225 coating, usually CVD+PVD coating, with a hardness of about 95. This coating can improve the wear resistance, corrosion resistance, and lubricity of the blade, making it suitable for processing various materialsUsed for external turning processingCutting conditions:
Precision machining: feed rate range is 0.15-0.21mm/rev (0.008-0.011ipr)
Medium processing: feed rate range is 0.25-0.35mm/rev (0.015-0.02ipr)
Rough machining: feed rate range is 0.30-0.43mm/rev (0.017-0.023ipr)
