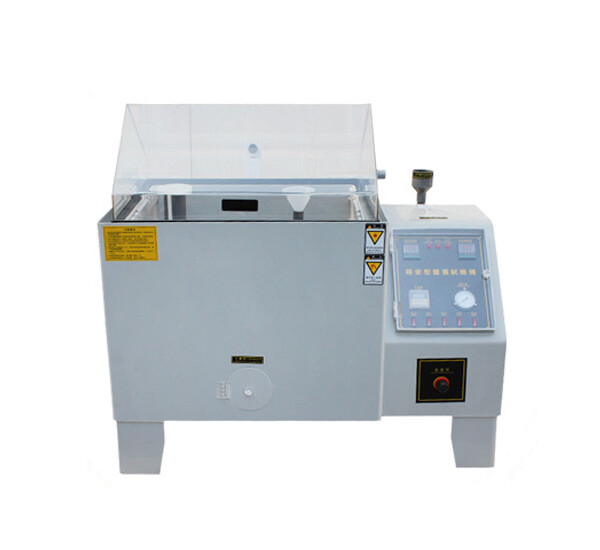

110V 270L Salt Spray Test Chamber Machine for Corrosive and Salt Fog Test for Sale

Recent Threads

On eBay Now...

110V 270L Salt Spray Test Chamber Machine for Corrosive and Salt Fog Test For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

110V 270L Salt Spray Test Chamber Machine for Corrosive and Salt Fog Test:
$2928.57

High Quality Salt Spray Testing Chamber

Note:

There are two color control panels are shipped randomly.

Parameters:

Voltage: 110V
Laboratory volume: 270L
Inner size: 900*600*400mm
Outer size: 1390*830*1100mm
Spray method: continuous

Details: Description:

Spray method:

Adopting bernoute principle to absorb brine and then atomize, the degree of atomization is even, no blocking phenomenon of crystallization, can ensure the standard of continuous test.

Nozzles: made of special glass nozzles, the size of the spray can be adjusted.

Spray flow rate adjustment 1-2m1 (m1/8ocm\'/nh) (16-hour average)

Spray mode: continuous type

Adopt the direct heating method, the heating speed is fast to reduce the standby time, when the temperature reaches ON. OFF switching, accurate temperature, less power consumption.(heating tube is made of high corrosion resistance heating system: titanium tube).

Meet the standard:

GB/T 2423. 17-1993 Salt spray test GB/T 2423. 18-2000 Salt spray test GB/T 10125-1997 Salt spray test IEC68-2-52 1996 Salt spray test ASTM. B117-97 Salt spray test GB. 10587-89 Salt spray test IEC68-2-11 Salt spray test JIS H8502 Salt spray test CNS. 4158 Salt spray test CNS. 4159 CASS Accelerate the spray test of cupric acetate GB/T 12967.3-91 CASS Accelerate the spray test of cupric acetate GB/T 1771-2007 Neutral salt spray performance test of paints and varnishes Application:It\'s used to test the corrosion resistance of the electrodeposited coating of many kinds of metallic materials.Use the salt spray test machine to spray the Sodium Chloride Solution to the surface of electric coating to achieve the purpose of detection.The material is stainless steel.

²Equipment:

All equipment needed in the test:Spray nozzle, salt water barrel, test piece support, spray liquid collection container, test chamber, salt water, supply tank, pressure tank,supply equipment and exhaust equipment required for compressed air,the device is shown in Fig, and test as followed.

üBlunt material is required, it is required that the material itself cannot be corroded, and it can not affect the corrosion test.

üThe fog nozzle cannot spray the test liquid directly to the sample, the solution at the top of the spraying chamber cannot dropon the test piece.

üThe test liquid dropped from test piece cannot flow back to the salt bucket again for the test.

üThe solution should not contain grease and dust, so you have to prepare an air cleaner.

üSpray liquid should be collected at least 16 hours,an average per hour can be collected 2ml to 1ml solution. Use the final averageto represent the amount of spray.

üThe concentrationof the Sodium Chloride Solutionshould be maintained at40~60g/L.

üThe temperature of the pressure barrel should be kept in 47+1 degree, temperature of the brine barrel should be kept in 35+1 degree.

Sample placement:

If you need to test many pieces, make sure that every major surface can be detected by salt fog at the same time.

Permutation of samples, the spray should be free to drop on all the test pieces, preventing the situation of blocking the spray.

Each sample cannot be in contact with each other.

Salt spray can’t drop from one test piece to another one.

Sample identification mark should be marked onthe bottom of the test piece.

Items include: Item Description QTY　239165Salt Spray Testing Chamber 110V1set
