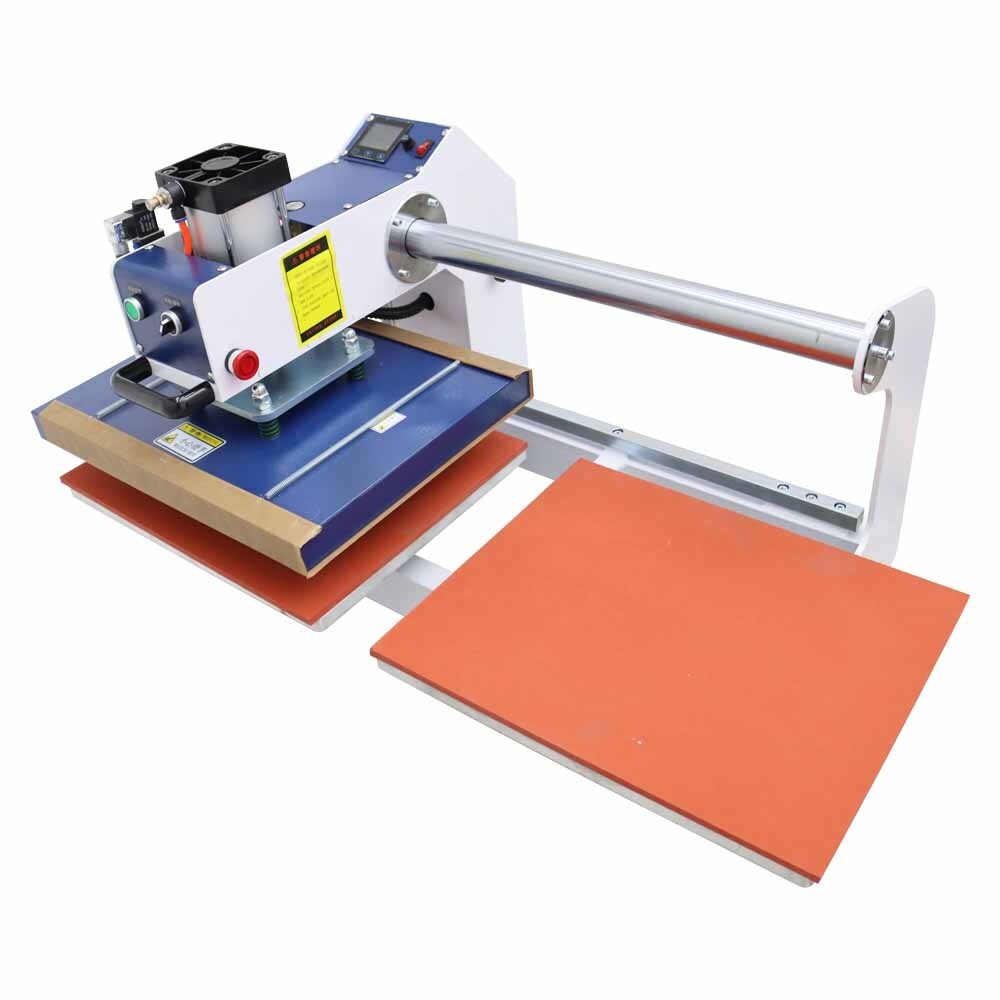

110V Double Station Heat Press 16x20Inch Pneumatic Heat Press Machine:
$1512.11

110V16x20Inch Flat Heat Press Machine, 110V 3KW Pneumatic Double Station Heat Press, with Sliding Rod for T-Shirt Puzzle Mouse Pad Crafts, No Air Compressor

This Pneumatic Double Table Heat press machine is featured by its two working tables and air automatic

working system. The upper heating board moves automatically and easily. It is very efficient for advertising

use and industry use. Heating panel and working tables are specially processed and make the machine works

well and tranfer images clearly.

It's suitable for sublimation and heat transfer printing work.With CE certification .

【Double Station】--This heat press machine adopts a double station design and two working platforms. When the machine is transferring the work on one side, you can prepare for the work on the other side. This design saves working time and improves efficiency.
【Superior Performance】--Wide and large format design, the transfer area can reach 40x50cm/16x20 inches, more advanced heating method, the traditional heating tube gap is larger, and the heating is uneven; this machine adopts the etching process aviation heating material, and the heating is more uniform.
【Pneumatic Operation】--When you confirm the required temperature and time, the temperature reaches the preset value, and the heating plate automatically presses down; the countdown ends, and it automatically rises. Pneumatic makes the machine can be operated automatically, intelligent and convenient.
【High-quality Materials】--Adopt high-quality steel integrated casting process, high strength, high thermal conductivity. The heating plate can slide left and right on the smooth rod, which is very convenient.
【Gifts for Testing】-In addition to a brand new machine, we also prepared a test gift for this Pneumatic heat press machine, including 5 yards PU vinyl film.

Parameter Items Double-position Heat Transfer Printing Machine(Pneumatic) Model DJ-H402 Printing Area(mm) 400*500mm(15.7*19.7inch) Temperature Range 0-399℃ Time Range 0-99S Votage/Power 110V/3KW N.W.(kgs) 84.7(187lb) Machine Dimensions(mm) 1100*660*600(43.3*26*23.6inch) Packing Size (mm) 1205*750*820(47.4*29.5*32.3inch)

Feature 1.CE approved heat press machine. high quality as well as good price, good after-sale service.

2.The machine adopted automatic pneumatic fitting pressure, it can transfer the lower pressure to higher

compress pressure. (pressure up to 8kg/cm2).

3.It contains two locations, paralleled moving the head up left and right, much more convenient and faster,

high efficiency ,save labor and time at one time.

4.This machine adopts thicken heat plate to ensure the temperature more equality and steady as to

improve the transfer quality and avoids tolerance. high accuracy, perfect heat press effect.

5.Upgraded lower platen allows room for T-shirts to be easily, placed into and removed from machine,

10cm adjustable range, produce wider products.

6.The pressure can be adjusted according to the thickness of the material you're transfering to. Including

print the ready made clothes and cut pieces ,it can be widely used in the factory mass-production and

personalized pyrograph of retail shops.

Operation procedures

Please note: Users should operate the machine with ground wire connected for safety!
1.Plug in, turn on the power switch, the power indicator lightened.
2.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed. (Normally 5~20Second),then wait for until the temperature has reached the preset temperature.
3.Put the cloth on the silicone pad of the working table, cover the printing paper (please note the right surface of the paper).
4.Press the start switch, you will see the machine is working and the time is counting down .
5.When the time come down to over, the heating plate will raise automatically. you will find the beautiful and attractive effect!

6.If it is cold-ripping of the transfer paper, please use blackboard wiper to rub against the whole transfer paper, wait for 5-10 seconds, then rip off the transfer paper. If it is the hot-ripping of the transfer paper, you can rip off immediately after printing.

Please note:successful print requires right time,temperature and pressure,the thickness of the

clothes material ,even thetype of printing paper,all will affect the performance of printing .Any

kind of sublimation paper need test before mass production.

Item Number:

Double Station Pneumatic Heat Press Machine(16*20 inch 110V)#110us501
