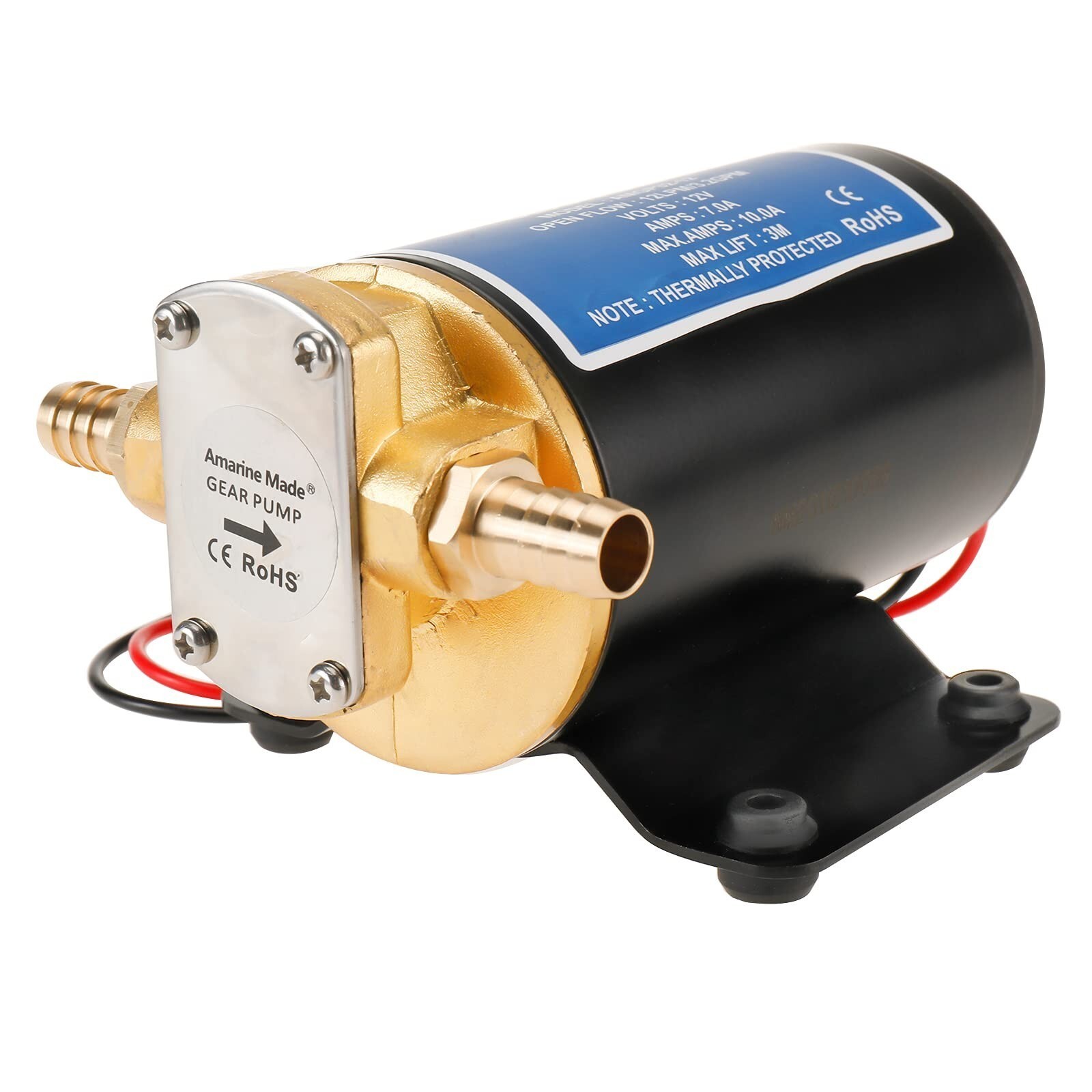

12V Oil Transfer Pump 3.2GPM Gear Pump Lubricant Diesel Scavenge Extractor Pump:
$75.99
Description
Turbocharger oil scavenging has always been an issue. You might have 50 psi feeding the turbo but the slightest restriction in the drain" will immediately send oil past the exhaust seals, burning up oil and ruining your turbo.
In the case of remote mounted turbo systems, rear mounted systems, or in systems mounted below the engine oil level, some form of positive scavenging has to be engineered. That is where this pump comes into play.
Rugged bronze body and stainless steel shaft, Easy connecting system, Soft rubber mounts
Self-priming gear electric pumps suitable for lubricants and viscous liquids.The pump is suitable for remote turbo systems as oil scavenge pumps. In this case the engine supplies the oil pressure and the pump simply returns the turbo oil to a point above the sump level.Can also be used for various other applications.
Rugged bronze body and stainless steel shaft, Easy connecting system, Soft rubber mounts
Can be used to transferdiesel, lubricants, & machinery fuel (except gasoline petroleum fuel), Includes 2 x 12mm (1/2") brass hose tails
Professional grade pump - Ideal for marine, caravans/RV, automotive and agriculture applications
Designed for intermittent use only. Duty cycle: 30 mins
Voltage:24V/12V DC
Flow capacity: 14 Litres per minute (3.2 Gallons per minute)
Self-priming - Max. lift 3M
Rugged bronze body and stainless steel shaft ,can be mounted in any position
Includes 2 x 12mm brass hose tails Twin core wire Current Draw:7 Amp (max. 10 Amp)
Dimensions: Length 155.5mm x Width 119mm x Height 103mm
Approvals: pump is a gear pump, the best kind of pump for oil scavenging.
Bronze gears. Brass pump body. No diaphragms to fail like our competitors pumps.
Gear design for maximum scavenge.
The same oil that it scavenges also lubes up its gears.
This is a racing part, please do not expect the product to be quiet.
