12V Pull Type Solenoid 10 Watt For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

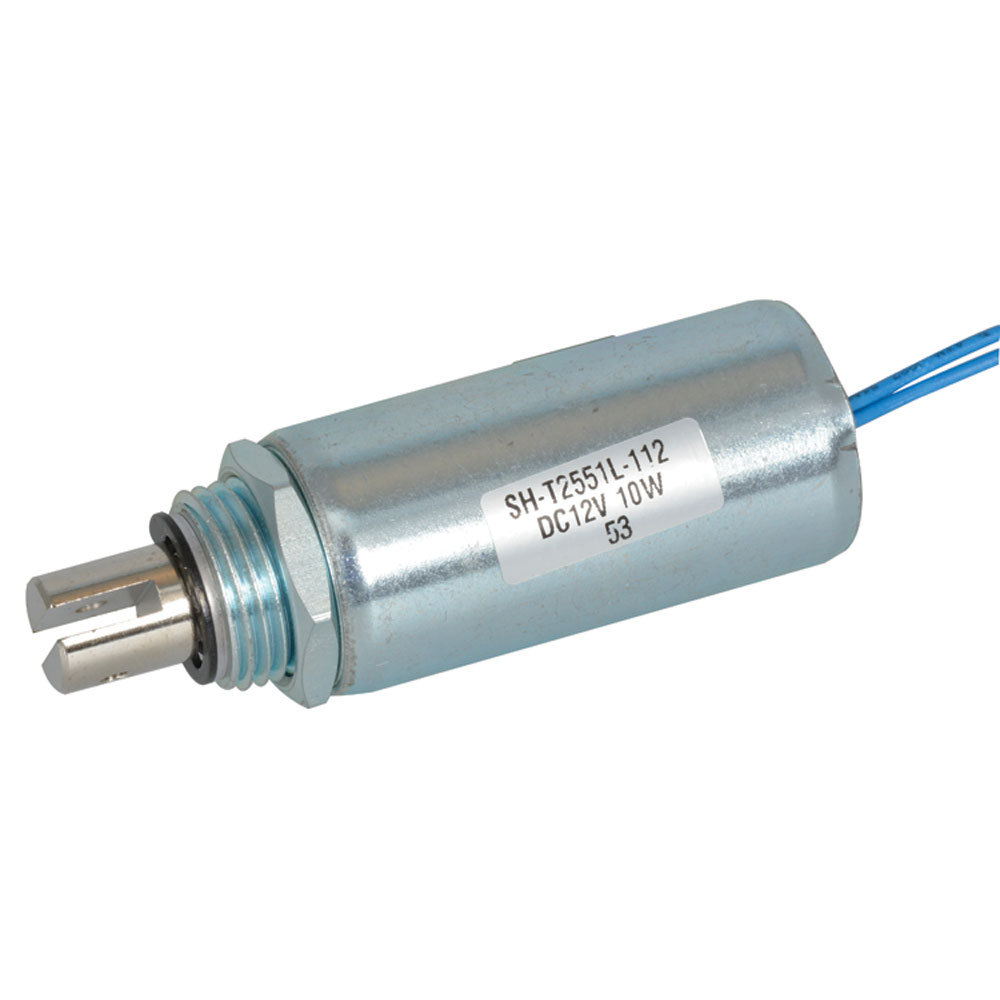

12V Pull Type Solenoid 10 Watt:
$19.95

12V Pull Type SolenoidSpecifications:

• Nominal voltage: 12VDC
• Coil resistance: 14.4 ohm (±10%)
• Power rating: 10W
• Holding force: 4 lbs.
• Stroke: 0.71''
• Continuous
• Size: 2.99" L x 1.0" Dia.
• Plunger Diameter: 0.41''
• Plunger Length: 2.54''
• Weight: 0.39 lbs.

Detailed specifications

• Product Type: Tubular-Pull
• Voltage Rating DC: 12
• Coil Resistance (+/-10%) Ohms: 14.4
• Holding Force (lbs.@200C): 3.86
• Stroke: 0.4
• Size (Length x Diameter) (inch): 3.1 x 1.0
• Shaft Diameter (inch): 0.41

---

---

---

12V Pull Type Solenoid 10 Watt

$19.95

---

12V Pull Solenoid P613-A1V12 for Trombetta Engine Throttle Continuous Duty

$143.09

---

12V Pull Solenoid P613-A1V12 Trombetta for Throttle Continuous Duty Engine

$65.02

---
