15KW Melting Furnace High Frequency Induction Heater Furnace 3992℉ 30-100KHz For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

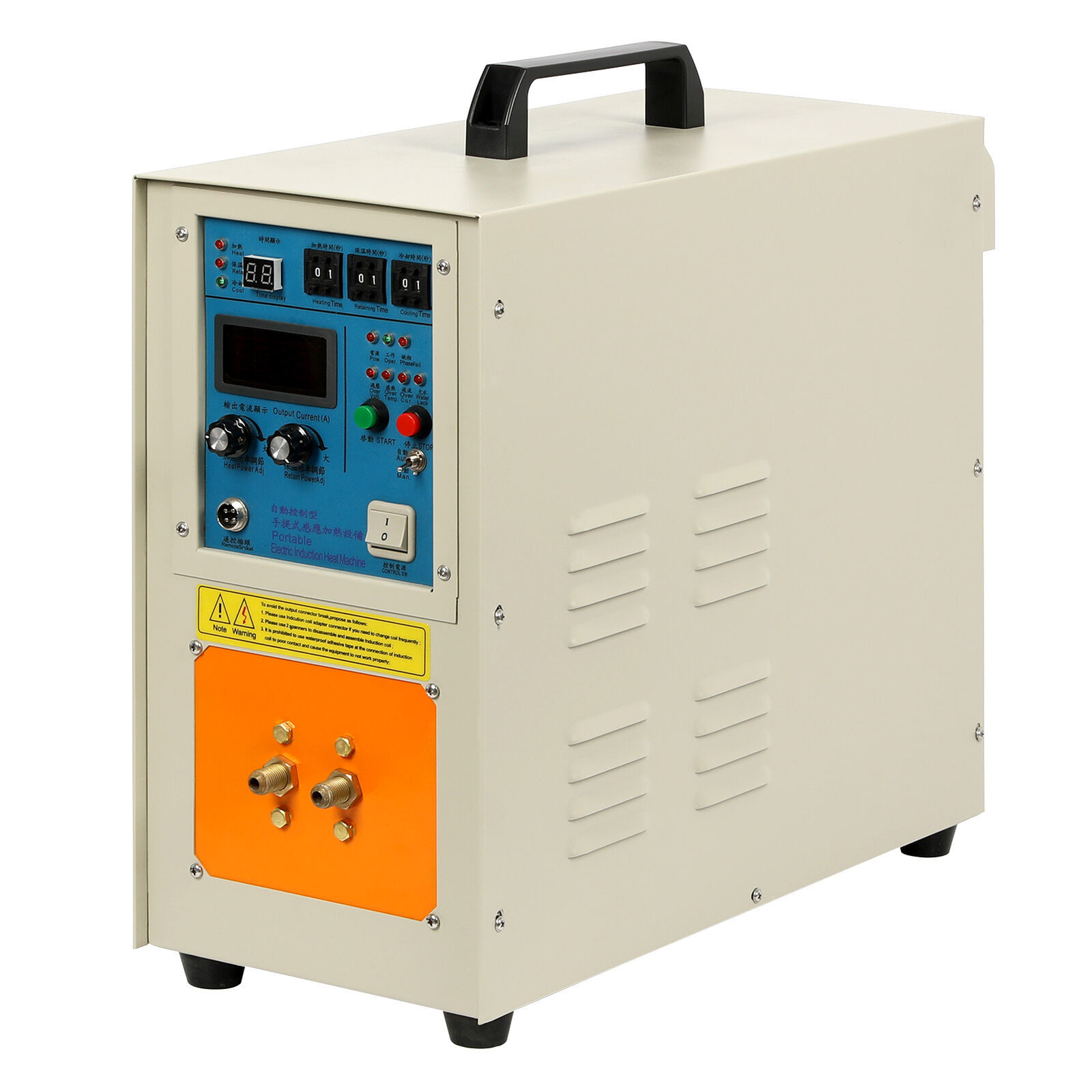

15KW Melting Furnace High Frequency Induction Heater Furnace 3992℉ 30-100KHz:
$609.00

NEW-00006 FAST,FREE
SHIPPING AWESOME
CUSTOMER SUPPORT PRODUCT
IN STOCK Store pages

You may also like

Forklift Tractor Seat Replacement Slide Backrest Universal Seat Belt Adjustable
115.0 USD
Free shipping
220V Melting Furnace 30-100 KHz 15 KW High Frequency Induction Heater Furnace
635.0 USD
Free shipping
Concrete Wet Screed Magic Screed Power Unit 7ft Blade Gas Engine Surface Tamper
398.54 USD
Free shipping

PRODUCT DESCRIPTION

Description:

1. Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power

2. With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products

3. Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions

4. With 100% load design, can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation

5. With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations

6. With multiple status display of overflow, overvoltage, low water, phase failure and load malfunction, providing higher reliability and sustainability

7. Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy.

Application:

Do heat treatment for gear wheel and axis

Continuous annealing for steel wire

Heating and hot press molding for dishware

Forging & molding for standard work-piece

Attention:

1. To use this machine smoothly, please read the manual carefully.

2. This machine can't be used with a plug directly, it needs a wire to connect the machine to power line directly.(the cross-sectional area of power line must be larger than 6 square millimeters.)

Features:

High frequency induction heater furnace

Portable and high quality

Smaller footprints

High efficiency

Low energy consumption

Higher output power

Higher reliability

Higher sustainability

Accommodate to batched and repeated heating

Suit for Welding, Heating, Heat treatment, Annealing

Include English manual

Specifications:

Model: HT-15A

Output power: 15 KW

Output current: 200 - 600 A

Fluctuating frequency: 30 - 100 KHZ

Heating time: 1-99 s (auto)

Input voltage: Single phase 110V, 60 HZ

Flow rate of cooling water: 0.06-0.12Mpa, 7.5 L / min

Water temp. protection point: 104 ℉(40 ℃)

Max. heating temperature: 3992 ℉(2200 ℃)

Load duration: 100%

Cooling: Water cooling

Product Dimension: 18×8×17 inch(46×20×43cm)

N.W.:45 lbs(20.3 kg)

Package size: 21×21×12 inch(54×53×30cm)

Package Content:

1 x 15 KW High Frequency Induction Heater Furnace

2 x Heating Coil

1 x Foot Switch

1 x English Manual
