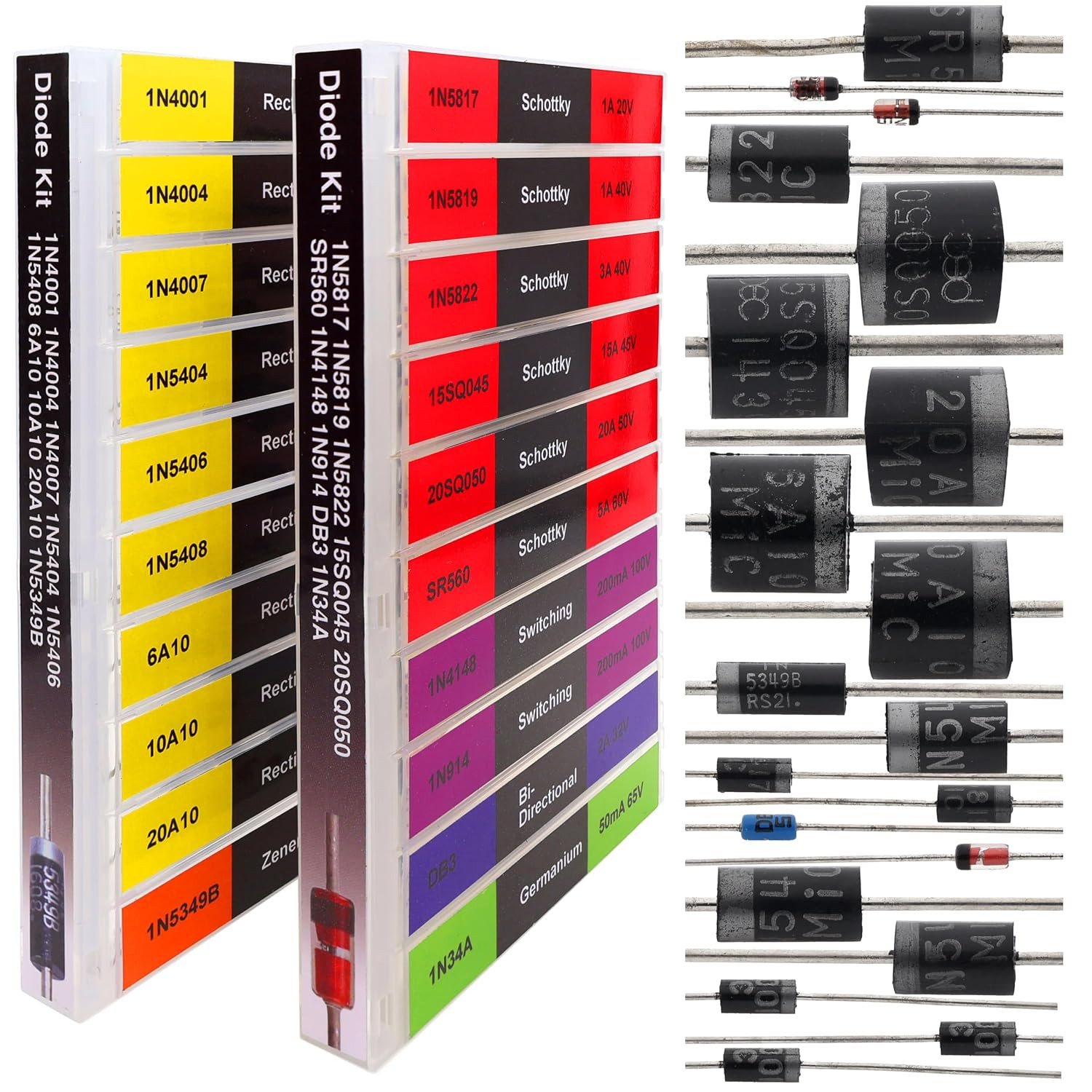

20 Kinds 200 Diode Assortment Kit 6A10 10A10 20A10 15SQ045 20SQ050 1N34A:
$20.99

Product description

Forward Voltage Drop: When conducting, diodes have a small voltage drop across them, typically around 0.7V for silicon diodes and 0.3V for germanium diodes.
Reverse Breakdown Voltage: When the reverse voltage exceeds a certain level, known as the breakdown voltage, the diode starts to conduct in the reverse direction.
Reverse Leakage Current: A small current that flows through the diode when it is reverse-biased, typically in the microampere range.
Junction Capacitance: Diodes exhibit capacitance at the p-n junction, which can affect their performance in high-frequency applications.
Forward Current Rating: The maximum current that a diode can conduct in the forward direction without being damaged.
Reverse Recovery Time: The time it takes for a diode to switch from conducting in the forward direction to blocking in the reverse direction.
Temperature Sensitivity: Diodes' electrical properties, such as forward voltage drop and leakage current, can change with temperature.

Schottky Diodes

10 pcs 1N5817 (1A 20V)
10 pcs 1N5819 (1A 40V)
10 pcs 1N5822 (3A 40V)
10 pcs 15SQ045 (15A 45V)
10 pcs 20SQ050 (20A 50V)
10 pcs SR560 (5A 60V)

Rectifier Diode

30 pcs 1N4001 (1A 50V)
30 pcs 1N4004 (1A 400V)
30 pcs 1N4007 (1A 1000V)
4 pcs 1N5404 (3A 400V)
4 pcs 1N5406 (3A 600V)
4 pcs 1N5408 (3A 1000V)
4 pcs 6A10 (6A 1000V)
4 pcs 10A10 (10A 1000V)
4 pcs 20A10 (20A 1000V)

Zener

4 pcs 1N5349B (12V 5W)

Switching

30 pcs 1N4148 (200mA 100V)
4 pcs 1N914 (200mA 100V)

Bi-Directional

10 pcs DB3 (2A 32V)

Germanium

4 pcs 1N34A (50mA 65V)

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 603 4.7 out of 5 stars 751 4.7 out of 5 stars 740 4.7 out of 5 stars 261 4.7 out of 5 stars 572 4.7 out of 5 stars 343 Price $14.99$14.99 $9.99$9.99 $9.99$9.99 $19.99$19.99 $9.99$9.99 $19.90$19.90 ✓ ✓ ✓ ✓ ✓ ✓

EEEEE Diode assorted kit contain 20 value 200 pcs with different current and voltage. 🟡 Rectifier Diode 🟣 Switching Diode 🔵 Bi-directional 🟢 Germanium 🔴 Schottky 🟠 Zener
🟡 Rectifier Diode 🟡 30 Pcs 1N4001 (1A 50V) 🟡 30 Pcs 1N4004 (1A 400V) 🟡 30 Pcs 1N4007 (1A 1000V) 🟡 10 Pcs 1N5404 (3A 400V) 🟡 10 Pcs 1N5406 (3A 600V) 🟡 10 Pcs 1N5408 (3A 1000V) 🟡 4Pcs 6A10 (6A 1000V) 🟡 4Pcs 10A10 (10A 1000V) 🟡 4Pcs 20A10 (20A 1000V)
🟣 Switching Diodes 🟣 30 Pcs 1N4148 (200mA 100V) 🟣 4 Pcs 1N914 (200mA 100V) 🔵 Bi-directional 🔵 10 PcsDB3 (2A 32V) 🟢 Germanium 🟢 4 Pcs 1N34A (50mA 65V)
🔴 Schottky 🔴 10 Pcs 1N5817 (1A 20V) 🔴 10 Pcs 1N58179 (1A 40V) 🔴 4 Pcs 1N5822 (3A 40V) 🔴 3 Pcs 15SQ045 (15A 45V) 🔴 3 Pcs 20SQ050 (20A 50V) 🔴 4 Pcs SR560 (5A 60V) 🟠 Zener 🟠 4 Pcs 1N5349B (12V 5W)
Each type of component is contained in a separate compartment with lid and label
