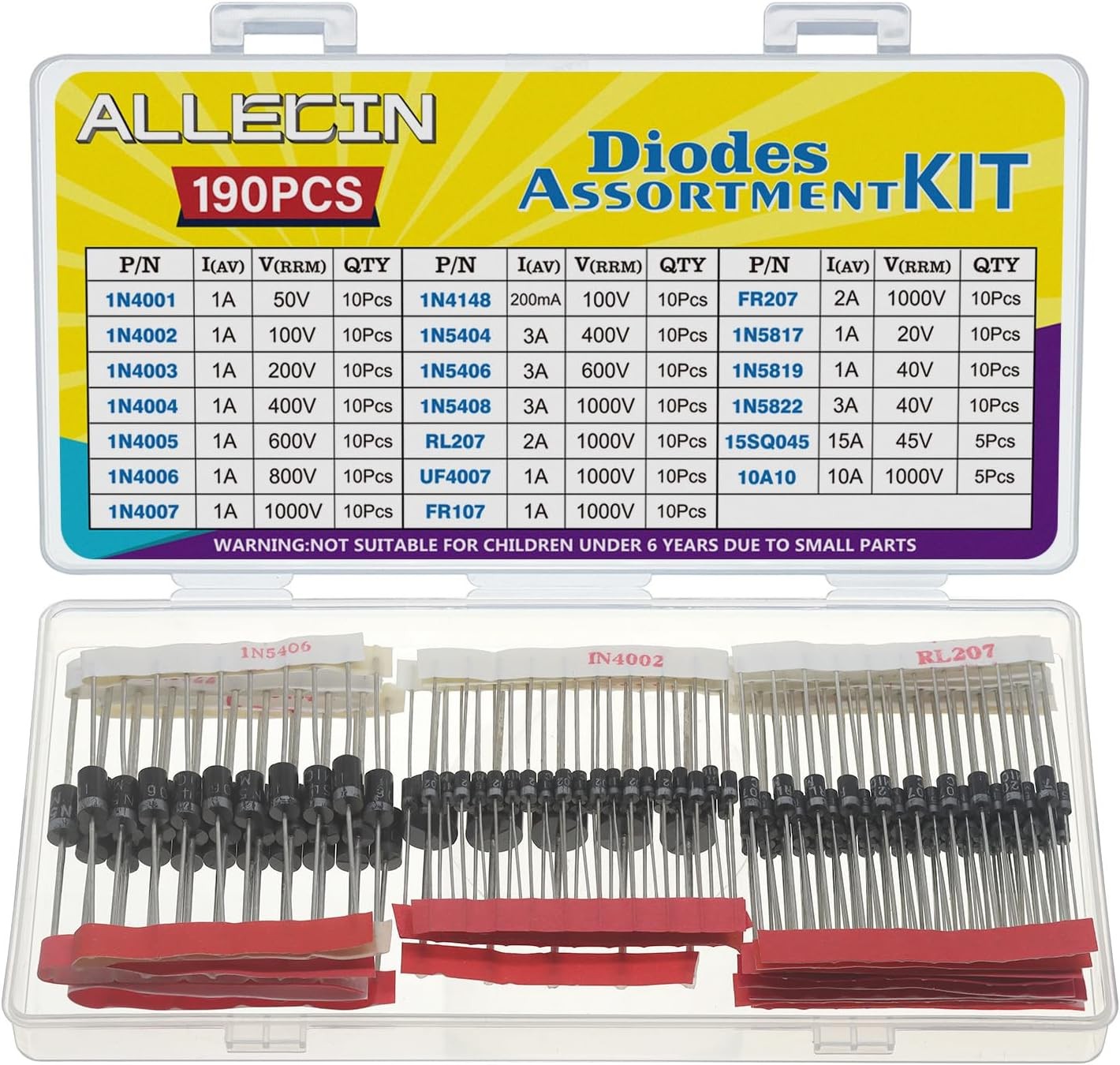

20 Values Diodes Kit Rectifier Schottky Fast Recovery Assortment 1N4001-1N5822:
$21.25

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 Product Highlights

Diodes Assortment Kit Contain Rectifier Fast Recovery Schottky Switching Diode - Reliable quality & Stable performance.
• 1N4001 / IN4001 (1A 50V) ; 1N4002 / IN4002 (1A 100V) ; 1N4003 / IN4003 (1A 200V) ; 1N4004 / IN4004 (1A 400V) ; 1N4005 / IN4005 (1A 600V) ; 1N4006 / IN4006 (1A 800V) ; 1N4007 / IN4007 (1A 1000V) ; 1N4148 / IN4148 (200mA 100V) ;
• 1N5404 / IN5404 (3A 400V) ; 1N5406 / IN5406 (3A 600V) ; 1N5408 / IN5408 (3A 1000V) ; 1N5817 / IN5817 (1A 20V) ; 1N5819 / IN5819 (1A 40V) ; 1N5822 / IN5822 (3A 40V) ; RL207 (2A 1000V) ; UF4007 (1A 1000V) ; FR107 (1A 1000V) ; FR207 (2A 1000V) ; 15SQ045 (15A 45V) ; 10A10 (10A 1000V).
• Features & Advantages : Stable performance, circuit protection, strong corrosion resistance, good high temperature resistance.
• Humanized packaging for easy storage and use. # Please confirm the model, amp and volt before purchasing.

SpecificationsPackage Dimensions6.5 x 3.39 x 0.75 inchesItem Weight3.17 ouncesItem model numberDiodes KitType20Values Diodes Kit 1N4001

Please review all details before purchasing. Feel free to message us with any questions.

---

---

---
