On eBay Now...

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1... For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

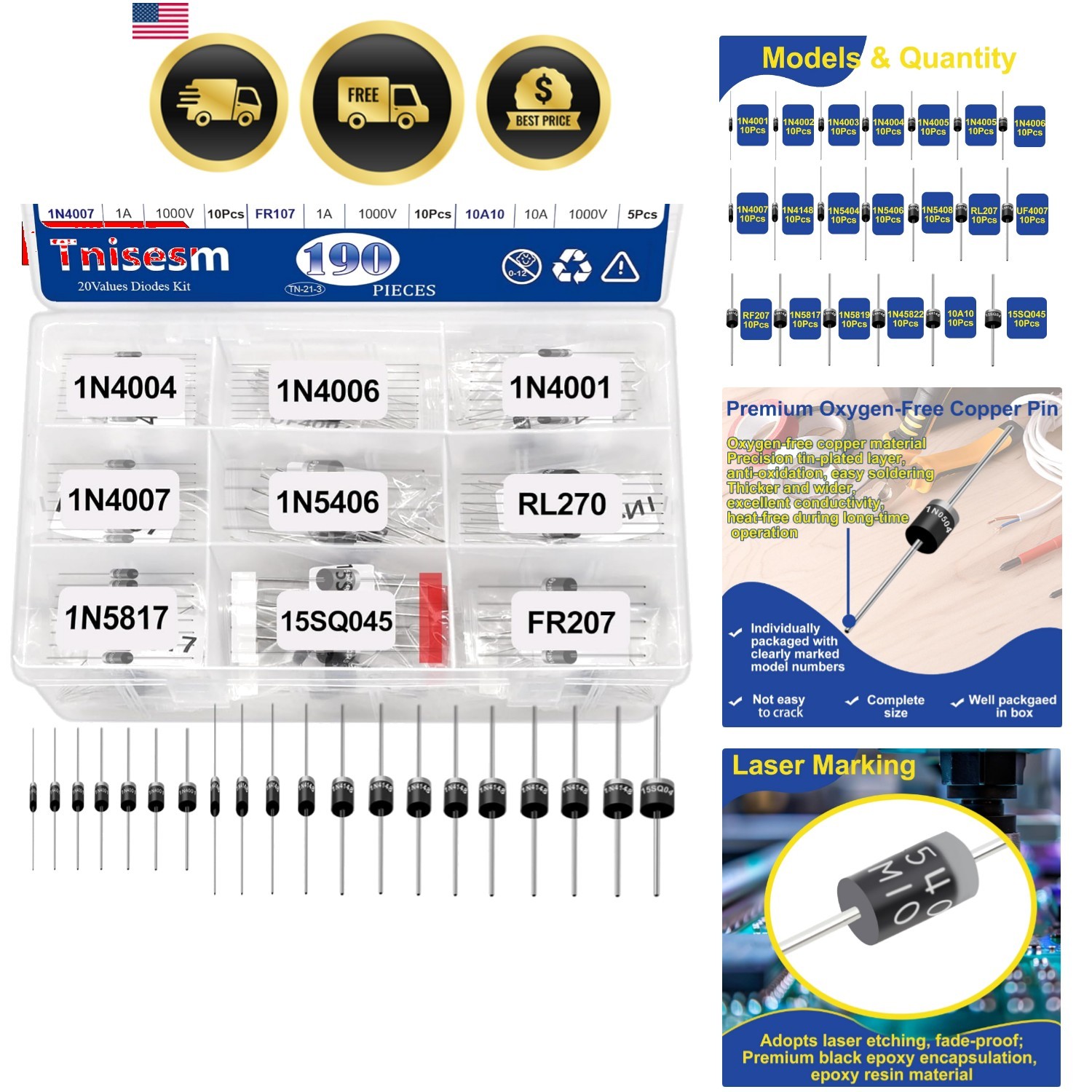

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1...:
$22.99

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1N5404 1N5406 1N5408 RL207 UF4007 FR107 FR207 1N5817 1N5819 1N5822 15SQ045 10A10 Rectifier Schottky Diode Assortment

Rectifier/Schottky/Fast Recovery/Switch Diode Assortment Kit contain 20 Values 190Pcs with different current and voltage

Rectifier Diodes:1N4001 (1A 50V),1N4002 (1A 100V),1N4003 (1A 200V),1N4004 (1A 400V), 1N4005 (1A 600V),1N4006 (1A 800V),1N4007 (1A 1000V), 1N5404 (3A 400V), 1N5406 (3A 600V), 1N5408 (3A 1000V),RL207 (2A 1000V),10A10(10A 1000V)

Schottky Diodes:1N5817 (1A 20V), 1N5819 (1A 40V), 1N5822 (3A 40V), 15SQ045(15A 45V). Fast Recovery Diodes : UF4007 (1A 1000V), FR107 (1A 1000V), FR207 (2A 1000V). Switching Diode : 1N4148 (200mA 100V)

Package Quantity: 190 diode kits is easy to store ,Use an anti-static bag with a clear mark for packaging,not easy to damage

This diode is Low leakage, forward voltage drop, high efficiency and low power loss,widely used in product development, student experiments,maintenance, production, etc

---

---

---

20 Values Diode Assortment Kit Rectifier Schottky Fast Recovery Diodes Set

$17.99

---

20 Values Diode Assortment Kit Rectifier Schottky Fast Recovery Diodes Set

$18.00

---

20 Values Diodes Kit Rectifier Schottky Fast Recovery Assortment 1N4001-1N5822

$21.25

---
