On eBay Now...2022 HAAS EC-400 CNC HORIZONTAL MACHINING CENTER For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

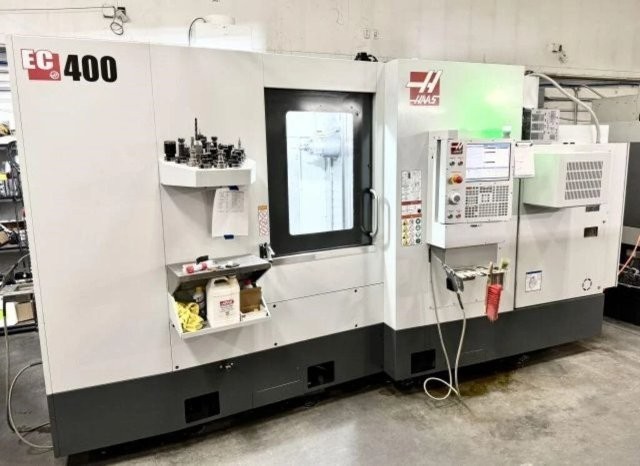

2022 HAAS EC-400 CNC HORIZONTAL MACHINING CENTER:
$130000.00
HAAS EC400 4-AXIS HORIZONTAL MACHINING CENTERSpecifications:
X-AXIS TRAVEL .................................. 22"
Y-AXIS TRAVEL .................................. 25"
Z-AXIS TRAVEL .................................. 22"
SPINDLE MOTOR .................................. 30 HP
SPINDLE SPEED .................................. 12,000 RPM
MAX TORQUE ..................................... 30 ft-lbf @ 2000 rpm
DRIVE SYSTEM ................................... INLINE DIRECT DRIVE
SPINDLE TAPER .................................. CAT 40
INTEGRATED 4TH AXIS B-AXIS ....... 90 DEG ROTATION TIME FULL 4th
MAX WEIGHT ON PLATTER .......................... 880 LB
ROTATIONAL TORQUE CONTINOUS .................... 424 FT-LBF
BACKSLASH ...................................... 30 ARC-SEC
GEAR RATIO ..................................... 106:1
BRAKE TORQUE ................................... 2500 FT-LBF
MIN RESOLUTION ................................. 0.001 DEG
REPEATABILITY .................................. 10 ARC-SEC
RAPIDS ON B .................................... 150 DEG SEC
FEEDRATES:
MAX CUTTING .................................... 833 IPM
X-AXIS RAPIDS .................................. 1400 IPM
Y-AXIS RAPIDS .................................. 1400 IPM
Z-AXIS RAPIDS .................................. 1400 IPM
AXIS MOTORS:
MAX THRUST X .................................... 3380 LBF
MAX THRUST Y .................................... 2810 LBF
MAX THRUST Z .................................... 3380 LBF
PALLET CHANGER .................................. 2
PALLET SIZE ..................................... 14.75" X 15.75"
MAX PALLET LOAD ................................. 880 LBS
PALLET CHANGE TIME .............................. 12 SEC
COOLANT CAPACITY ................................ 95 GAL
TOOL CHANGER SMTC ............................... 30 +1
MAX TOOL DIAMETER FULL .......................... 2.5"
MAX TOOL DIAMETER, LARGE ADJACENT EMPTY ......... 5"
MAX TOOL LENGTH FROM GAGE LINE................... 12"
TOOL CHANGE TIME ................................ 2.80 SEC
MACHINE DIMENSIONS .................... 202" X 100" X 112"
MACHINE WEIGHT ........................ 17,250 LBS
EQUIPPED WITH:
> HAAS 4 AXIS CONTROL
> THROUGH SPINDLE COOLANT 300 PSI
> 12,000 RPM
> 4TH AXIS PACKAGE
> FILTER CHIP CONVEYOR PACKAGE
> WIPS PROBING SYSTEM
HIGH SPEED MACHININGTHROUGH TOOL AIR BLASTHIGH PRESSURE FLOOD COOLANT
