On eBay Now...

20Values 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1N5404 1N540... For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

20Values 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1N5404 1N540...:
$29.53

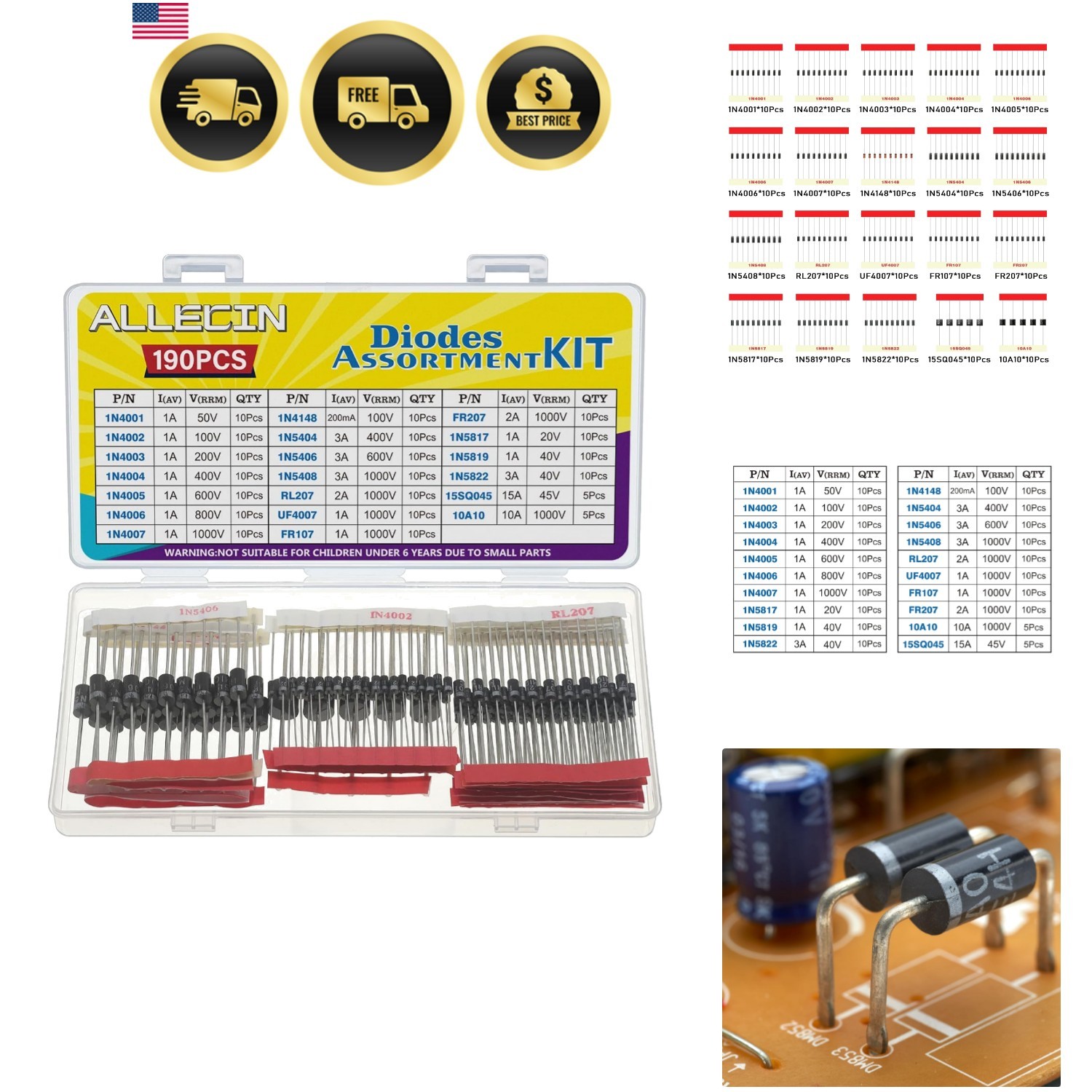

20Values 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1N5404 1N5406 1N5408 RL207 UF4007 FR107 FR207 1N5817 1N5819 1N5822 15SQ045 10A10 Rectifier Schottky Diode Assortment

Diodes Assortment Kit Contain Rectifier Fast Recovery Schottky Switching Diode - Reliable quality & Stable performance.

1N4001 / IN4001 (1A 50V) ; 1N4002 / IN4002 (1A 100V) ; 1N4003 / IN4003 (1A 200V) ; 1N4004 / IN4004 (1A 400V) ; 1N4005 / IN4005 (1A 600V) ; 1N4006 / IN4006 (1A 800V) ; 1N4007 / IN4007 (1A 1000V) ; 1N4148 / IN4148 (200mA 100V) ;

1N5404 / IN5404 (3A 400V) ; 1N5406 / IN5406 (3A 600V) ; 1N5408 / IN5408 (3A 1000V) ; 1N5817 / IN5817 (1A 20V) ; 1N5819 / IN5819 (1A 40V) ; 1N5822 / IN5822 (3A 40V) ; RL207 (2A 1000V) ; UF4007 (1A 1000V) ; FR107 (1A 1000V) ; FR207 (2A 1000V) ; 15SQ045 (15A 45V) ; 10A10 (10A 1000V).

Features & Advantages : Stable performance, circuit protection, strong corrosion resistance, good high temperature resistance.

Humanized packaging for easy storage and use. # Please confirm the model, amp and volt before purchasing.

---

---

---

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148.....

$13.71

---

20Values 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 1N4148 1N5404 1N540...

$23.86

---

20Values Diodes Kit 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007

$19.34

---
