2Pcs HC-05 Wireless Bluetooth RF Serial Transceiver Module 6Pin RS232 TTL US For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

2Pcs HC-05 Wireless Bluetooth RF Serial Transceiver Module 6Pin RS232 TTL US:
$18.89

2 Pieces HC-05 Bluetooth RS-232 Transceiver. RX pin is NOT 5V tolerant -- use a 1K+2K voltage divider from Arduino TX. NOT compatible with iOS (iPhones/iPads) -- Bluetooth Classic only, not BLE.

Wireless UART serial bridge. Master or slave mode, configurable via AT commands. Default: name HC-05, password 1234, baud 9600.

Key Specs:
• Bluetooth 2.0+EDR, CSR BC417 chip
• Range: 10m (30ft) line of sight
• Power: 3.6-6V (on-board 3.3V regulator)
• Current: ~30mA searching, ~10mA connected
• Interface: UART serial TTL (3.3V logic)
• AT command mode: 38400 baud
• Size: 44x16x4mm (1.73x0.63x0.16in)

Works with Arduino (5V with voltage divider), ESP8266/ESP32 (3.3V direct), Raspberry Pi, Android phones, Windows/Linux PCs. Includes 6-pin breakout board only -- resistors, wires, Arduino not included.

Ships from USA. Fast free shipping, hassle-free returns.

Electronics for IoT, Prototyping & DIY

2 Pieces HC-05 Bluetooth RS-232 Transceiver. RX pin is NOT 5V tolerant -- use a 1K+2K voltage divider from Arduino TX. NOT compatible with iOS (iPhones/iPads) -- Bluetooth Classic only, not BLE.

Wireless UART serial bridge. Master or slave mode, configurable via AT commands. Default: name HC-05, password 1234, baud 9600.

Ships from USA. Fast free shipping, hassle-free returns.

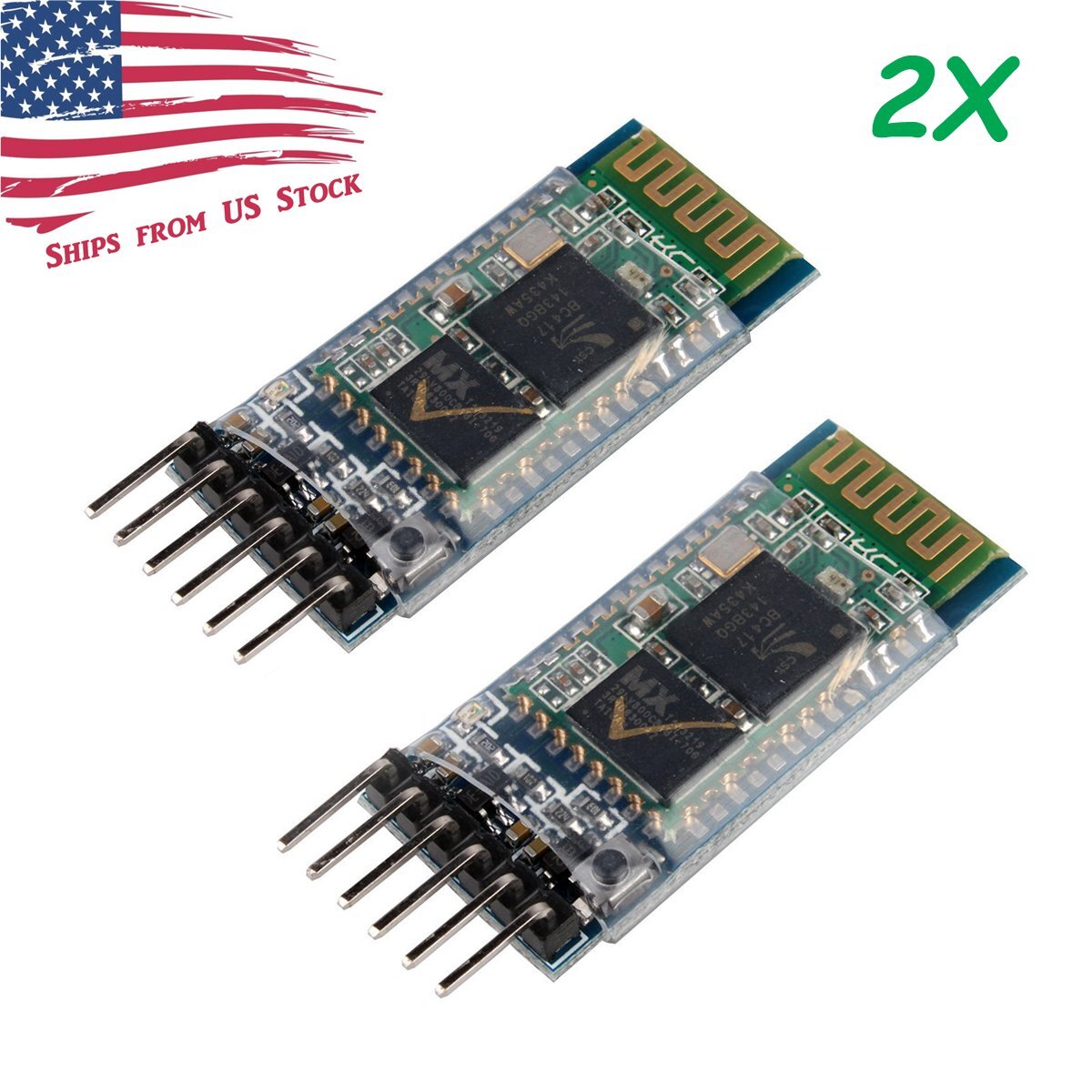

2 Pieces HC-05 Bluetooth Wireless RS-232 Master/Slave Transceiver Module – CSR BC417 – 6-Pin Breakout

The HC-05 is a Bluetooth 2.0 serial transceiver module that adds wireless UART communication to your Arduino or microcontroller projects. It works as a transparent serial bridge -- data sent over the serial connection comes out via Bluetooth, and vice versa. It can operate as either a master or slave device, configurable via simple AT commands.

⚠️ Important: The HC-05's RX data pin is NOT 5V tolerant. You must use a voltage divider (1 kΩ + 2 kΩ) on the RX pin when connecting to a 5V Arduino. Connecting 5V directly to the RX pin can permanently damage the module. The breakout board can be powered from 3.6V to 6V, but the data pins operate at 3.3V logic. Not compatible with iOS -- the HC-05 uses Bluetooth Classic (SPP), which iPhones/iPads do not support for third-party apps.🔧 How It Works

The HC-05 acts as a wireless serial (UART) bridge -- it replaces a wired serial connection with a Bluetooth link
In Slave mode (default), it waits for another device (phone, computer, or master module) to connect to it
In Master mode, it actively initiates a connection to a specific slave device -- ideal for linking two Arduinos wirelessly
Configuration is done via AT commands sent over the serial connection in AT command mode (38400 baud)

⚡ Key Features

Bluetooth 2.0 + EDR: Based on the CSR BC417 radio chip with data rates up to 3 Mbps
Master and Slave Modes: Can initiate connections (master) or accept them (slave) -- configurable via AT commands
Transparent Serial Bridge: Acts as a wireless UART -- no Bluetooth protocol knowledge required
AT Command Configuration: Change name, password, baud rate, and role using simple serial commands
Wide Power Range: 3.6V to 6V input (on-board regulator provides 3.3V to the radio chip)
Low Power Consumption: ~30 mA when searching/unpaired, ~10 mA when connected
10-Meter Range: Class 2 Bluetooth with built-in PCB antenna, up to 10 meters (30 feet) line of sight
6-Pin Breakout Board: Anti-reverse header with clearly labeled pins
Default Settings: Name: HC-05, Password: 1234, Baud rate: 9600 (communication) / 38400 (AT mode)

📐 SpecificationsBluetooth VersionBluetooth 2.0 + EDR (Enhanced Data Rate)Radio ChipCSR BC417Frequency Band2.4 GHz ISM bandOutput Power-4 to +6 dBm (Class 2)Sensitivity-80 dBm typicalData RateUp to 3 Mbps (EDR), UART up to 1382400 bpsRangeUp to 10 meters (30 feet) line of sightOperating ModesMaster, Slave, or Master/Slave (loopback)InterfaceUART (serial TTL)Default Baud (Communication)9600 bpsDefault Baud (AT Command)38400 bpsDefault Name / PasswordHC-05 / 1234Input Voltage (VCC)3.6V to 6V (on-board 3.3V regulator)Logic Level (RX/TX)3.3V (RX is NOT 5V tolerant)Current (Unpaired)~30 mACurrent (Connected)~10 mAAntennaBuilt-in PCB antennaBreakout Board DimensionsApprox. 44 × 16 × 4 mm (1.73 x 0.63 x 0.16 inches) L × W × H📌 PinoutPinNameI/ODescription1EN / KEYInputHold HIGH at power-on for AT command mode2VCCPower3.6V to 6V supply input3GNDPowerGround4TXDOutputSerial data out (3.3V) → Arduino RX5RXDInputSerial data in (3.3V) ← voltage divider required6STATEOutputHIGH when connected (optional)📦 What's in the Box

2× HC-05 Bluetooth Wireless RS-232 Master/Slave Transceiver Module (6-pin breakout board)

Voltage divider resistors, jumper wires, and Arduino board are not included.

🛒 What You'll Need

1 kΩ and 2 kΩ resistors -- for the required voltage divider on the HC-05 RX pin
Jumper wires -- for connecting the module to your Arduino or breadboard
Arduino board -- UNO, Mega, Nano, or compatible (or any 3.3V/5V microcontroller)
Bluetooth serial terminal app -- e.g., "Serial Bluetooth Terminal" for Android

🔌 Compatible With

Arduino UNO, Mega, Nano, and other 5V Arduino boards (with voltage divider on RX)
ESP8266 and ESP32 boards (3.3V -- no voltage divider needed)
Raspberry Pi (3.3V -- no voltage divider needed)
Android phones and tablets (via Bluetooth SPP serial terminal apps)
Windows and Linux computers with Bluetooth
Other HC-05 or HC-06 modules (master/slave pairing)
❌ NOT compatible with iOS (iPhones/iPads) -- use HM-10 or ESP32 for iOS

🎯 Typical Applications

Wireless serial communication between Arduino and Android phone
Bluetooth remote control for robots, cars, and drones
Wireless data logging from sensors to a phone or computer
Bluetooth-controlled home automation (lights, relays, locks)
Wireless link between two Arduinos (master + slave pair)
Replacing wired RS-232 serial connections with wireless
Remote monitoring and debugging of Arduino projects

🚀 Quick Setup

Wire the HC-05: VCC → 5V, GND → GND, TXD → Arduino D2, RXD → Arduino D3 via voltage divider (1 kΩ + 2 kΩ)
Upload a SoftwareSerial bridge sketch to your Arduino
Open the Serial Monitor at 9600 baud
On your Android phone, pair with "HC-05" (password: 1234)
Open a Bluetooth serial terminal app, connect to HC-05, and start sending data

💡 Tip: Use SoftwareSerial on pins D2/D3 -- don't connect the HC-05 to Arduino pins 0 and 1 (hardware serial), as these are needed for sketch uploads and the Serial Monitor. The LED blink pattern tells you the module's state: rapid blinking = not connected, two quick blinks then pause = connected, slow blinking = AT command mode.⚠️ Important Notes

RX Pin is NOT 5V Tolerant: Always use a voltage divider (1 kΩ + 2 kΩ) when connecting to a 5V Arduino -- 5V will damage the module
Not Compatible with iOS: Uses Bluetooth Classic (SPP), not supported by iPhones/iPads -- use HM-10 or ESP32 for iOS
Not Bluetooth Low Energy (BLE): Cannot communicate with BLE-only devices
AT Command Mode: EN/KEY must be HIGH before power is applied -- uses 38400 baud with "Both NL & CR" line endings
Factory Reset: Send AT+ORGL in AT command mode to restore defaults (name: HC-05, password: 1234, baud: 9600, role: slave)
2.4 GHz Interference: Shares the band with WiFi and other Bluetooth devices -- walls and metal reduce the 10m range
