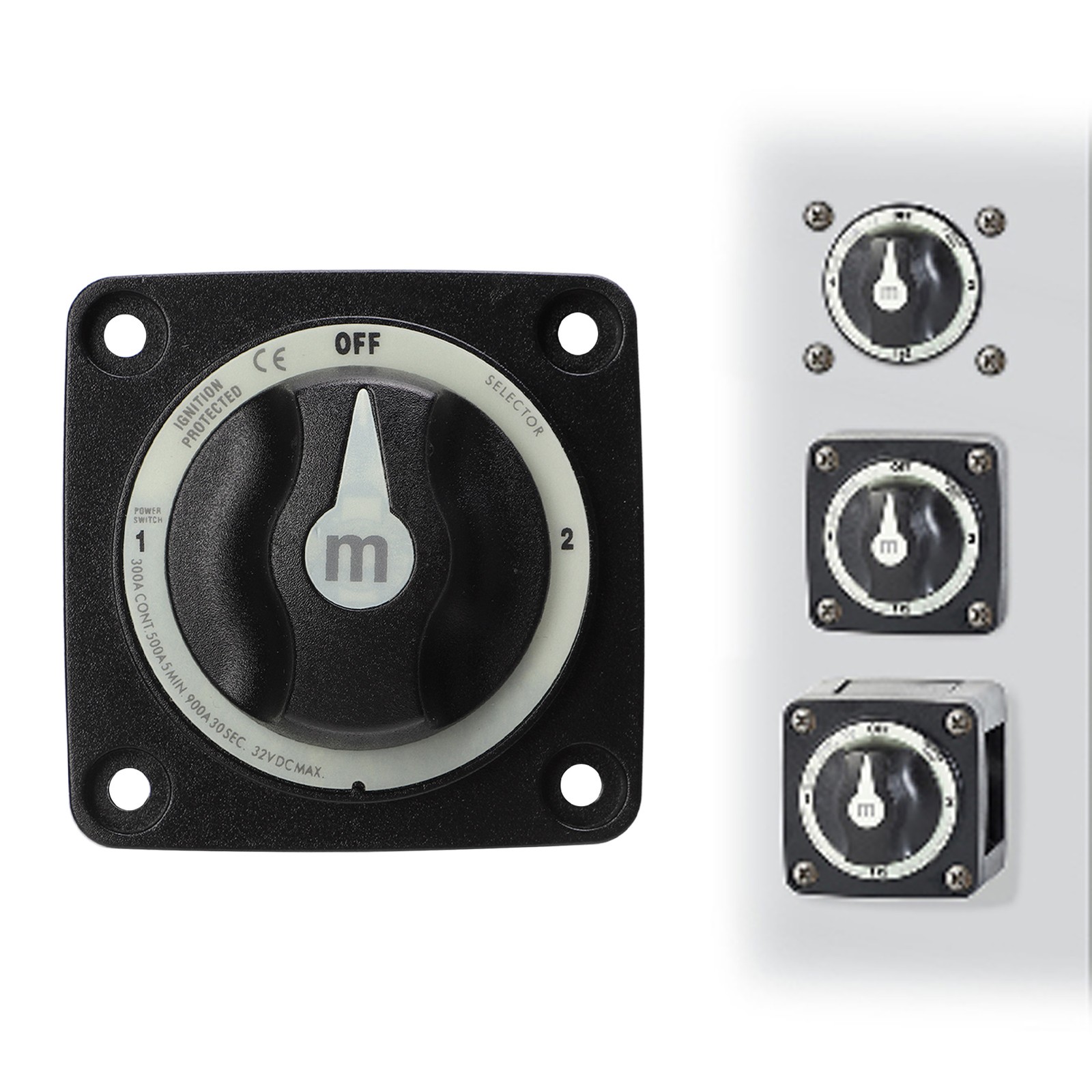

300A Battery Selector Switch Heavy Duty 3 Position Marine Battery Cut Off S HFCY:
$26.30

Feature:

1. Premium Material: Battery switch is made of premium ABS and tinned copper material, wear resistant, rustproof, sturdy and durable.
2. Function: Make before break contact design allows switching between battery banks without power interruption, with 3 position (OFF‑1‑2).
3. Excellent Performance: Battery disconnect switch has good electrical conductivity, IP66 waterproof, ignition protection, safe and reliable.
4. Simple Installation: The installation is simple, mounting holes accept 3/8in (M10) terminal stud, convenient for using, save your time and energy.
5. Wide Application: Power kill switch with 300 amp continuous rating suitable for outboard and small petrol or diesel engines, ideal for RV or boat.

Specification:

Item ABS,Tinnedcopper

Switch Positions: 3(OFF-1-2)
Maximum Voltage: 32VDC

Continuous Rating: 300A
Intermittent Rating: 500A (5 min)

Start Rating 30 Seconds: 900A per circuit
BatteryInputs: 2
Mounting Holes: Accept M10 Screw
Stud Material: Tinned Copper
Terminal Stud Size: 3/8in-16 (M10)

Function: Make before break contact design allows switching between battery banks without power interruption

Application: Ideal for Marine or RV

Package List:

1 xBatteryDisconnectSwitch

4 x Setscrew
