50Pcs 1N5408 Rectifier Diode 3A 1000V DO-201AD 5408 IN5408 Axial 3 Amp For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

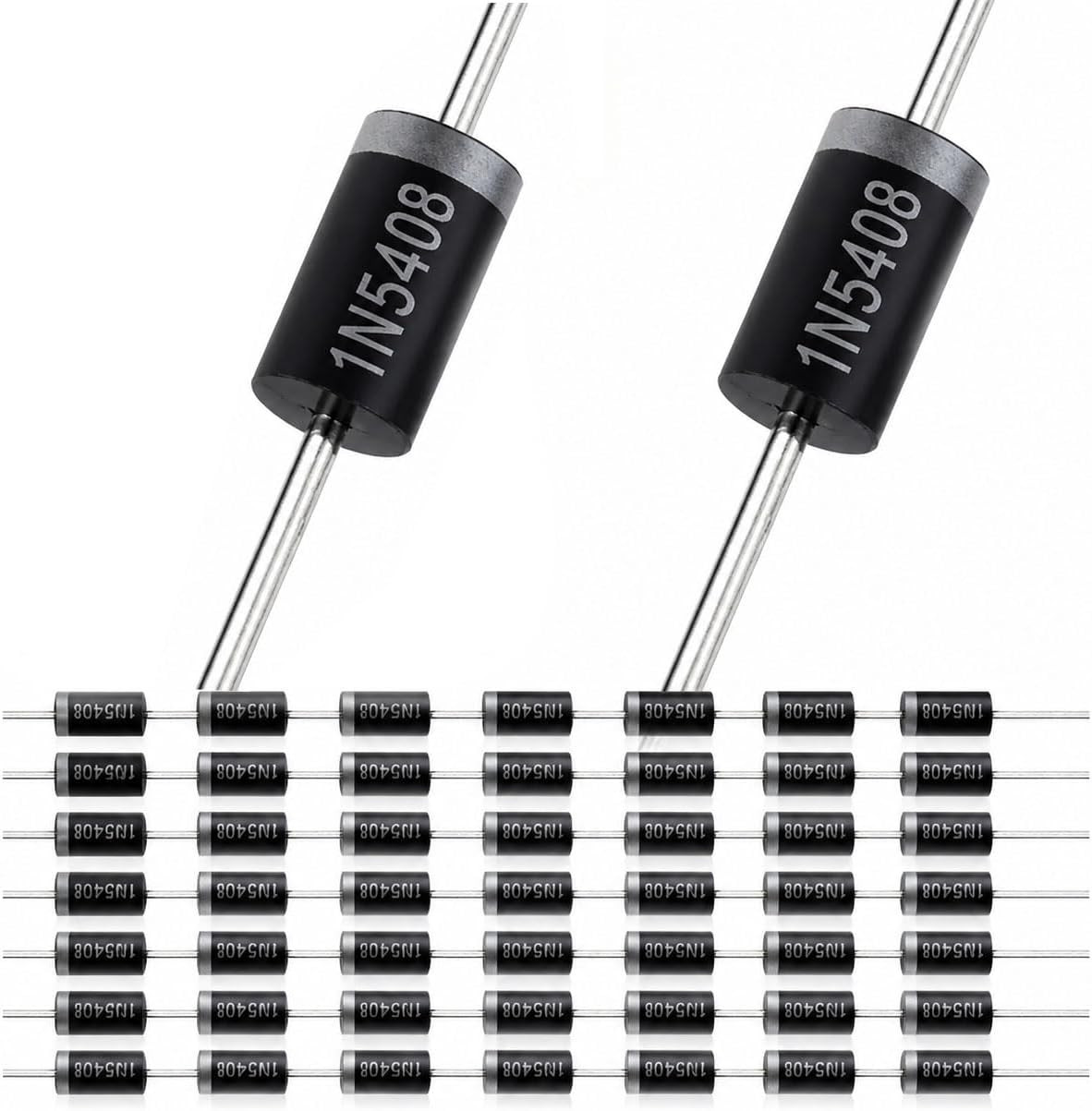

50Pcs 1N5408 Rectifier Diode 3A 1000V DO-201AD 5408 IN5408 Axial 3 Amp:
$16.99

1N5408:
Peak repetitive reverse voltage: 1000V
Working peak reverse voltage: 1000V
RMS reverse voltage: 700V
DC blocking voltage: 1000V
Average Rectified Output Current TA=105℃: 3.0AMP (Valid provided that leads are kept at ambient temperature at a distance of 9.5mm from the case.)
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load: 200A
Peak reverse current at rated DC blocking voltage: TA=25℃: 10μA, TA=150℃: 100μA
Typical Thermal Resistance Junction to Ambient: 15K/W
Operating and Storage Temperature Range: -65 to +150℃
Attention:
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half-wave 60Hz, resistive or inductive load
For capacitive load current derate by 20%.

Part Number: 1N5408 / Forward Current : 3 A / Maxixum Repetitive Peak Reverse Voltage : 1000 V
Lead-Free / RoHS Compliant Electronics Component / Molded Plastic Case / Plated Axial Leads / Through Hole
Low Reverse Leakage / High Forward Surge Current Capability / High Temperature Soldering per MIL-STD-750 Method 2026
See Picture 2-3 for Specifications Datasheet
Pack in a ESD Bag with Main Specs Label, for Long Time Protection and Indetification.
