60-ft Berk-Tek Armored GIGAlite-10 96-Fiber Adventum MM Plenum Fiber Optic Cable:
$353.09

Fruit Ridge Tools, LLC

Our store
Contact Us
Add to Favorite Sellers

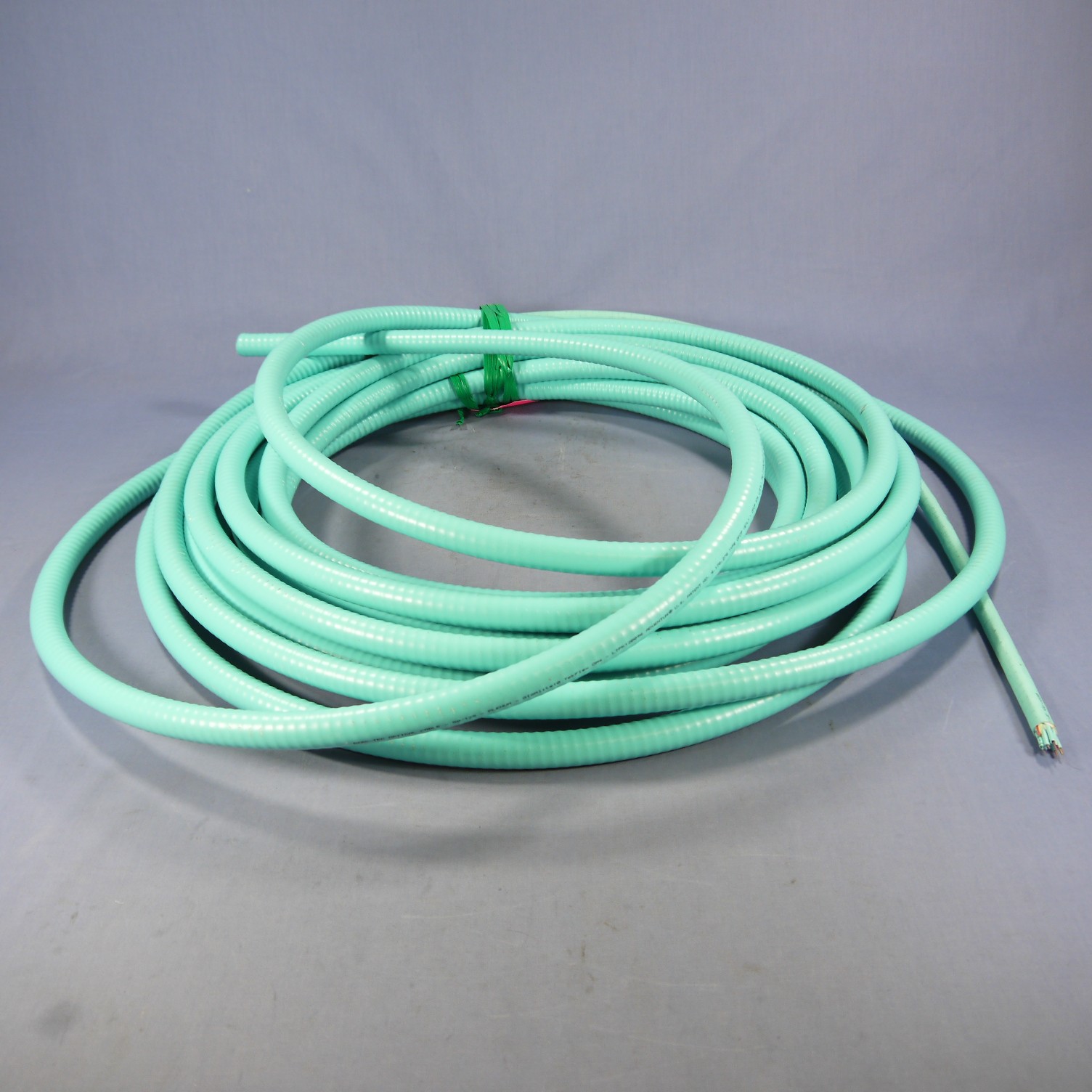

60-ft Berk-Tek Armored GIGAlite-10 96-Fiber Adventum MM Plenum Fiber Optic Cable

60 feet of Berk-Tek\'s ARMOR-TEK (Part # LTPK12B096EB3010/25) 96 x OM3 ARMORED Adventum Plenum multi-mode GIGAlite-10 fiber optic cable. Interlock armor fiber cables feature a tight-buffered or loose tube fiber cable and aluminum spirally wrapped armor, covered with a plenum or riser-rated jacket. Armor-Tek fiber cables can be used in any of the following installation environments: indoor, indoor/outdoor, in backbones, between closets and in fiber to the desk. Armor-Tek is a viable and cost effective solution for applications where a pathway is beyond its fill ratio, for areas where extra physical protection is needed, where network security is a concern, in a fast track installation, between buildings, direct burial or in trays. SPECIAL NOTE: Last 36.5\" of cable is NOT armored. Features include:

Jacketed armor that remains flexible due to the spiral wrap armoring process
Easy one-pull installation into any environment
Compact outside diameters when compared to plenum innerduct or conduit
Aluminum interlock offers 10 to 13 times the crush resistance of a standard dielectric fiber cable
Eliminates the need for conduit or plenum innerduct
Significant cost savings in both materials and labor - up to 25%
Suitable for hazardous environments or difficult installations
Accommodates last minute relocations or pathway changes
Provides a higher concentration of cables in an area than conduit
Can be installed in campus environments due to the durability and indoor/outdoor rating of the cable
Rugged armoring materials provide additional security for your fiber backbone
Armored cable installed in an outdoor environment should be bonded when passing into an indoor environment
System grounding requirements are eliminated
Intended for all high speed data applications, including: 10BASE-FL, 100BASE-SX/100BASE-FX, ATM 155/ATM 622, 1000BASE-SX/1000BASE-LX, Fibre Channel 1.062/2.125, 10GBASE-SR/SW, 10GBASE-LX4, and 40/100 GbE
UV resistant outer jacket protects the cable in outside plant installations
Fiber optic type: OM3 50/125
Type of cable: Loose tube
Outer sheath: Plenum
Sheath Color: Aqua
Armour type: Aluminum Interlock
Tube diameter: 3mm
Number of optical fibres: 96
Nominal outer diameter: 0.851in
Optical performance: EB (50/125 GIGAlite-10, OM3)
Attenuation, max. 850 nm (cabled): 3.0dB/km
Attenuation, max. 1300 nm (cabled): 1.0dB/km
Maximum installation tension: 600lb
Maximum installation tension: 2670N
Max. Load. Long Term (lbs): 200.0lb
Max. Load. Long Term: 890.0N
Crush resistance per TIA/EIA FOTP-41: 440N/cm
Impacts per TIA/EIA FOTP-25: 2 at 8.83 N-m
Cable flexibility per TIA/EIA FOTP-104: 100 cycles
Minimum Bending Radius - Install: 12.8in
Minimum Bending Radius - LongTerm: 8.5in
RoHS conform: Yes
Field of application: Indoor, Outdoor
