APT 112-03-800 REV K High Voltage Solenoid Driver Board Applied Process Tech PCB:
$350.00

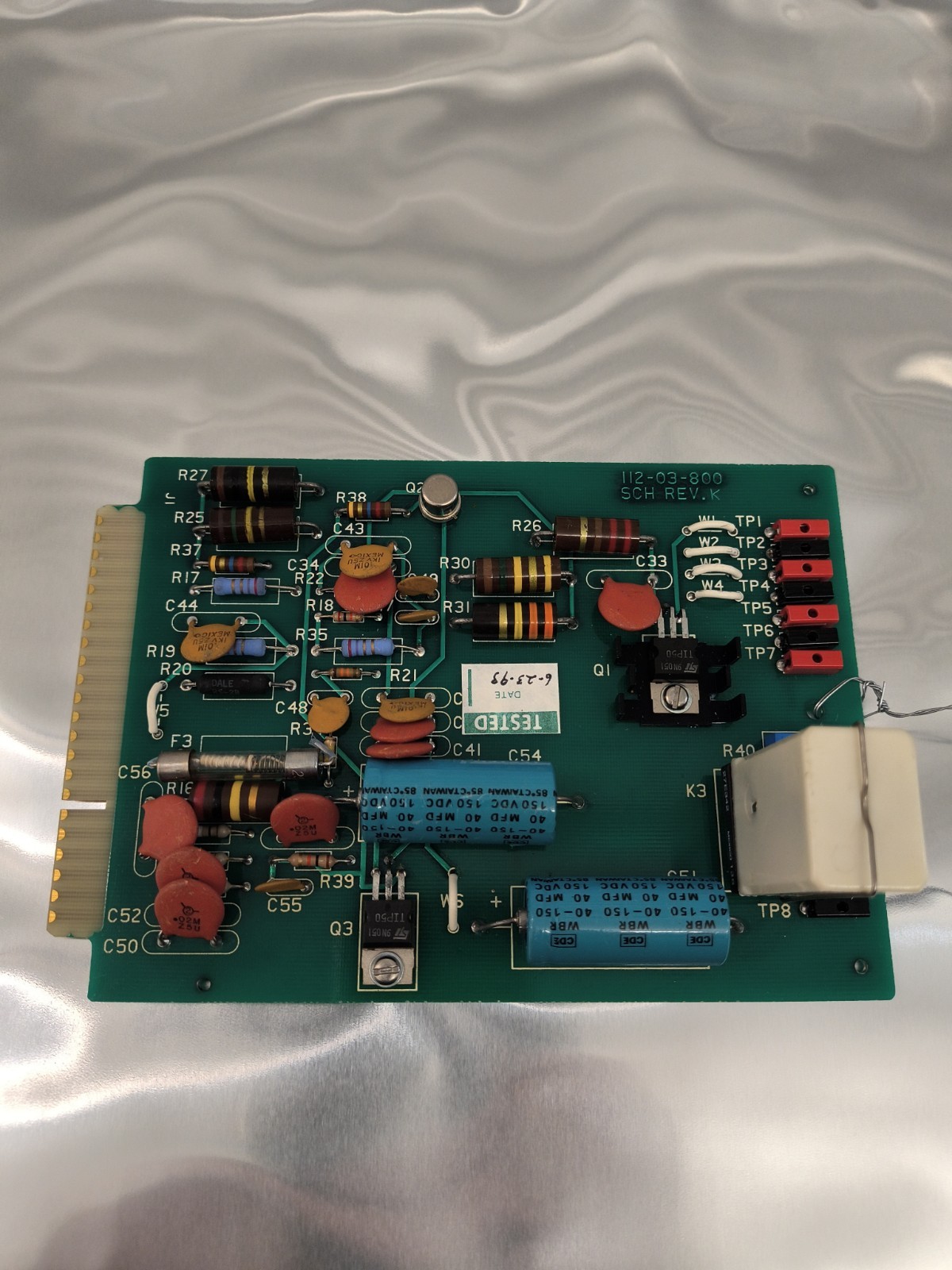

APT 112-03-800 REV K High Voltage Solenoid Driver Board Applied Process Tech PCB

Description:

Item: Applied Process Technology (APT) High-Voltage / Solenoid Driver Board

Part / Assembly Numbers:

Part / Assembly P/N: 112-03-800

Schematic Revision: SCH REV. K

QA Inspection Stamp: TESTED (Dated 6-23-99)

Board Features & Architecture:

Features STMicroelectronics TIP50 high-voltage NPN power transistors mounted on heat dissipation brackets

Integrated Potter & Brumfield heavy-duty power relay (K3) and inline fuse protection (F3)

Heavy-duty CDE WBR series axial electrolytic capacitors (150\text{ VDC} / 40\text{ MFD})

Dedicated test point header posts (TP1 through TP7) for quick diagnostic voltage checking

Tool Compatibility:

Fits Applied Process Technology (APT) 800-series and 900-series wet processing tools (spinners, developers, mask scrubbers, and spin-rinse dryers)

Condition:

As-Is, Untested

Pulled directly from a surplus industrial environment

Clean cosmetic condition with no burnt traces, heat degradation, or swollen capacitors

Selling strictly as-is for parts, repair, or backup spare inventory

Packaging & Shipping:

Proper Anti-Static Packaging: Securely wrapped in ESD anti-static protection and cushioned with professional packing materials for safe transit

Carrier Options: Ships via USPS First Class Mail or UPS Ground based on package weight and buyer location

Returns & Guarantee:

15-Day Right of Return: Backed by a 15-day return policy from the date of delivery for a full refund if you are not satisfied or if the item arrives other than described
