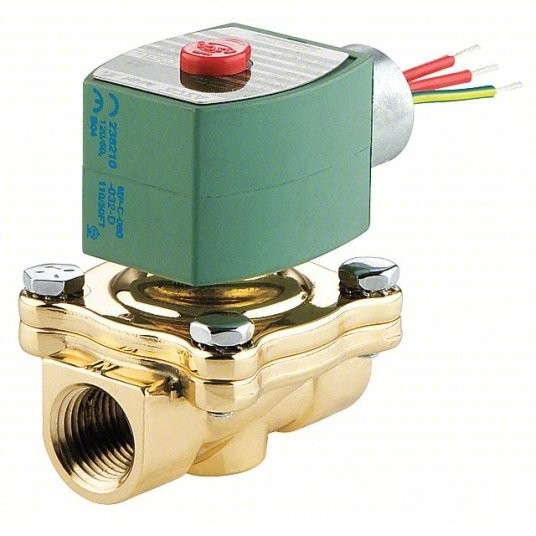

ASCO 8210G094MO REDHAT Solenoid Valve: 2-Way 1/2" 110V AC/120V AC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

ASCO 8210G094MO REDHAT Solenoid Valve: 2-Way 1/2" 110V AC/120V AC:
$125.00

this sale is forASCO 8210G094MO REDHAT Solenoid Valve: 2-Way 1/2" 110V AC/120V AC

2-way/2-position general purpose solenoid valves have an inlet and an outlet port and operate in two states or positions: open or closed. Normally closed solenoids remain shut until energized to open and allow flow.

BrandREDHATFor MediaAir; Inert Gases; Light Oil; WaterApplicationAir Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; PumpsValve TypeHigh FlowMounting OrientationVerticalOperation TypePilot OperatedValve Ways2-WayValve Positions2-PositionBody MaterialBrassSeal MaterialNBRNominal Pipe Size1 inInlet Connection TypeNPTFOutlet Connection TypeNPTFVoltage110V AC; 120V ACWattage6.1 WFrequency50 Hz; 60 HzElectrical Connections1/2" Conduit HubCoefficient of Volume (Cv)13Orifice Diameter1 inMin. Operating Pressure Differential5 psiMax. Operating Pressure Differential - Water150 psiMax. Operating Pressure Differential - SteamNot RatedMax. Operating Pressure Differential - Light Oil100 psiMax. Operating Pressure Differential - Air/Inert Gas150 psiMax. Fluid Temperature180 °FMin. Ambient Temperature14 °FMax. Ambient Temperature140 °FResponse Time1 secIncludes SealYesIncludes CoilYesCoil EnclosureWatertightCoil Insulation ClassFOverall Height5-5/8 inOverall Length3-3/4 inOverall Width3-3/8 inOperating EnvironmentIndoor; OutdoorIP RatingIP66NEMA Rating1; 2; 3; 3S; 4; 4XStandardsUL ListedManufacturer Part Number8210G004Valve ConfigurationNormally ClosedUNSPSC40141605
