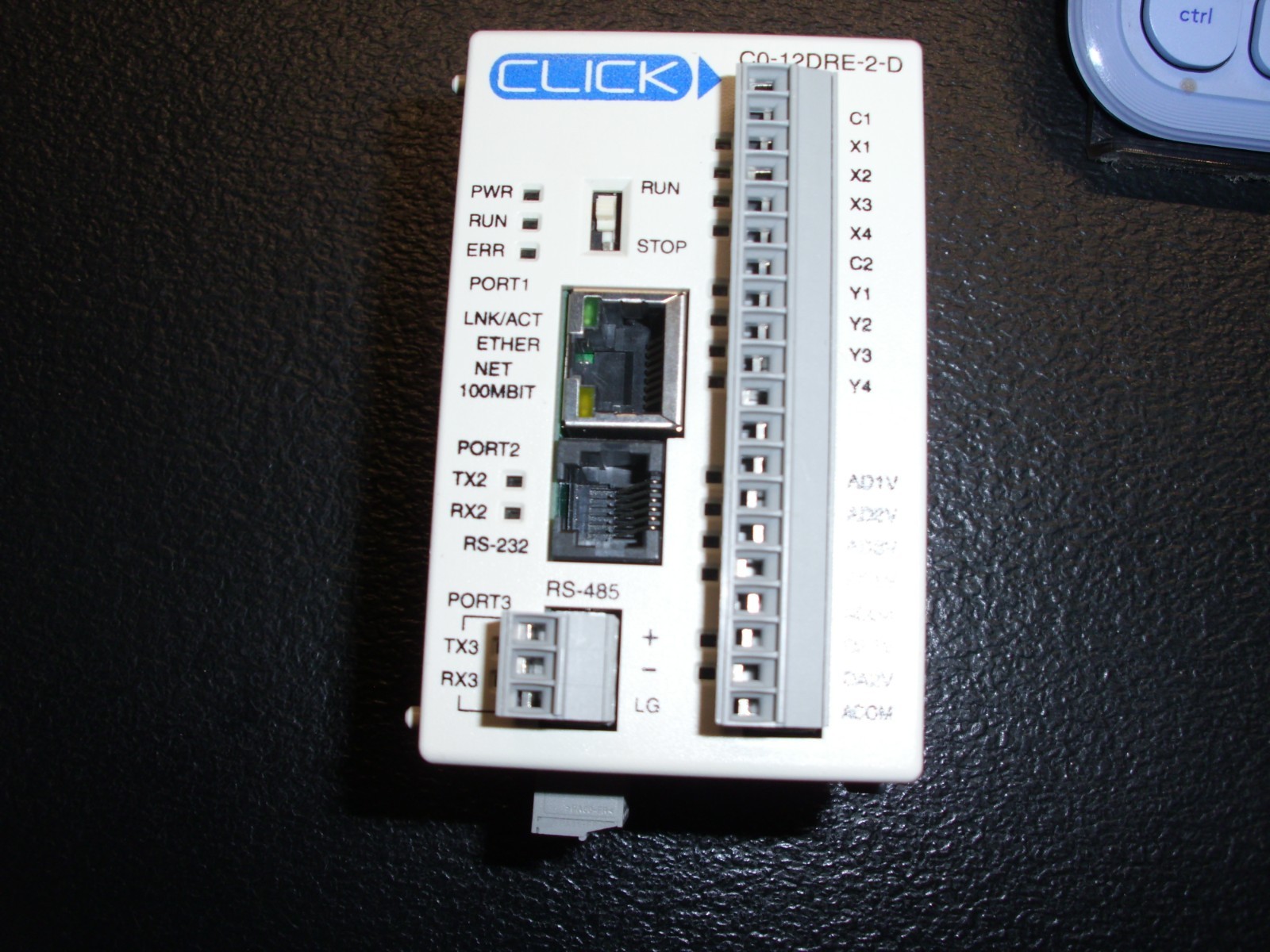

AUTOMATION DIRECT CLICK Ethernet Analog PLC, C0-12DRE-2-D:
$199.00

C0-12DRE-2-D

CLICK Ethernet Analog PLC, 24 VDC required, Ethernet and serial ports, battery backup, Discrete Input: 4-point, DC, Analog Input: 4-channel, voltage, Discrete Output: 4-point, relay, Analog Output: 2-channel, voltage.

Technical AnalogLadder Memory8k stepsUser Data Memory16 KBProgramming LanguageLadderProgramming SoftwareCLICK programming software v2.20 or later and CLICK CPU firmware v2.20 or laterCommunication Port and Connection Type(s)

• (1) Ethernet 10/100Base-T (RJ45)
• (1) RS-232 (RJ12)
• (1) RS-485 (3-pin terminal)

Port Protocol(s)

• Modbus TCP Client/Server
• Modbus RTU Master/Slave
• ASCII In/out
• EtherNet/IP explicit messaging adapter
• EtherNet/IP implicit messaging adapter
• programming and monitoring

Port Speed(s)

• 10/100 Mbps
• up to 115.2k baud

Mobile App EnabledCLICK Remote PLC Android/iOS AppReal Time Clock/CalendarYesRetentive MemoryYesBattery BackupYesMaximum Expansion Modules Allowed8External Power Requirement24 VDCNumber of Discrete Input Points4Nominal Input Voltage24 VDCVoltage TypeDCDiscrete Input TypeSinking/sourcingNumber of Isolated Discrete Input Commons1Number of Points per Discrete Input Common4Number of Discrete Output Points4Nominal Output Voltage6-240 VAC/6-27 VDCDiscrete Output TypeRelayRelay Configuration(4) Form A (SPST) relaysLoad Current1A/pointNumber of Isolated Discrete Output Commons1Number of Points per Discrete Output Common4Number of Analog Input Channels4Analog Input Signal TypeVoltageNumber of Non-Isolated Analog Input Commons1Number of Points per Analog Input Common4Input Resolution12-bitInput Voltage Signal Range0-10 VDCNumber of Analog Output Channels2Analog Output Signal TypeVoltageNumber of Non-Isolated Analog Output Commons1Number of Points per Analog Output Common2Output Resolution12-bitOutput Voltage Signal Range0-10 VDCMaximum Number of PID Loops8Number of High-Speed Capable Input Points4High-Speed Counter(s)

• up to (4) up counters
• up to (4) down counters
• up to (2) up/down counters
• up to (2) pulse/direction (bi-directional) counters
• up to (2) quadrature (A and B) counters
• up to (1) quadrature (A and B with Z) counter

Interval Measurement

• up to (4) single input (edge) timers
• up to (2) dual input (dual edge) timers

Duration Measurement

• up to (4) single input (edge) timers

Frequency Measurement

• up to (4) single input up counters
• up to (2) quadrature input (A and B) counters

Interrupt(s)

• up to (4) input interrupts
• up to (4) timer interrupts

Table-Driven Input(s)

• up to (4) preset tables

IncludesRemovable terminal block

---

---

---
