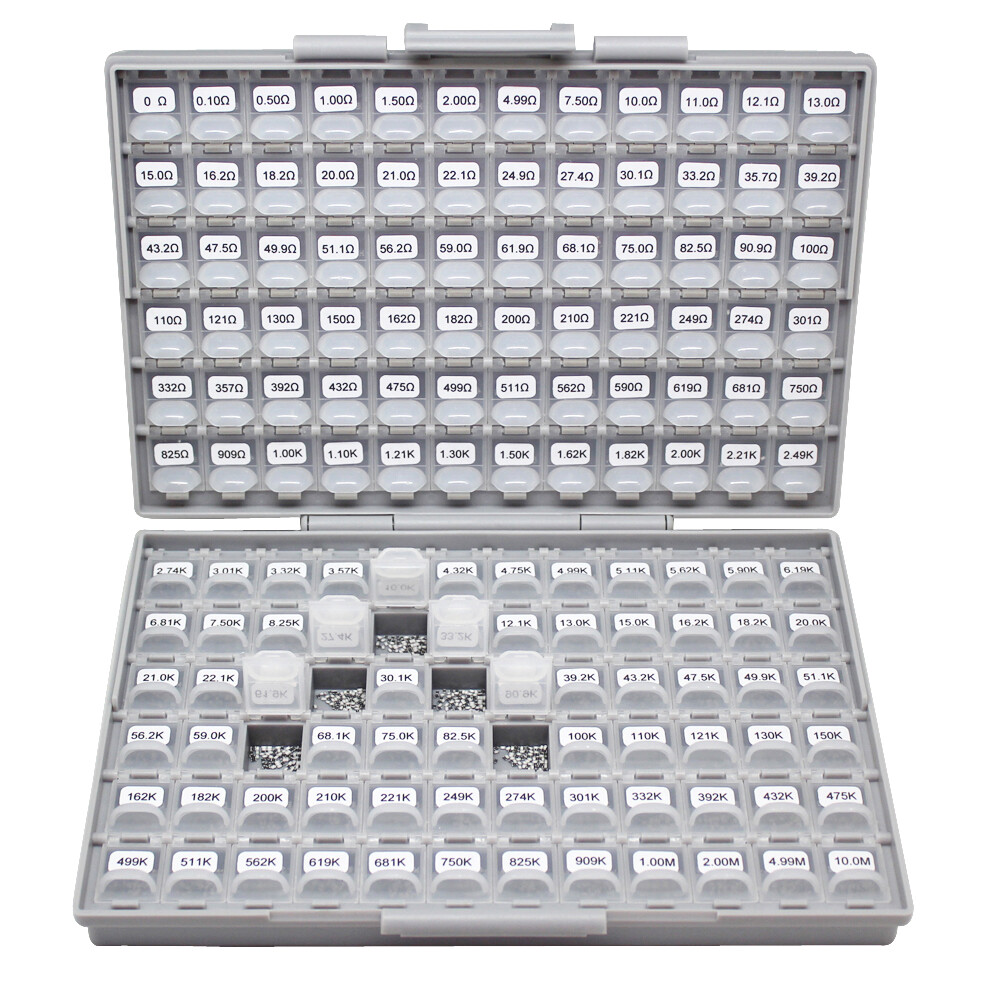

AideTek 0603 SMD SMT 1% RoHS 144 Values 100PC/value Sample Resistor kits USA:
$130.14

AideTek SMD 0603 144 values EIA E-96 1% Resistor kit in BOX-ALL-144
144 values 0603 size 1% 100PC/Value Resistor Kit distributed in patented BOX-ALL Enclosuretotal 14400 pcs of 1% resistor (RoHS compliance)144 values of 1% resistors sitting in 144 compartments BOX-ALL enclosure, it is a Great way to organize surface Mount Components, BOX-ALL enclosure includes total 144 compartments in one box, each compartment with individual lid and label, the value of each resistor is marked on each label.This resistor kit comes with 144 x 100 = 14400 PC 0603 1% resistors and an enclosure, all resistors are distributed in this patented enclosure.Outside size: 22.4cm (8.7") x 14.5 cm (5.7") x 3.8 cm (1.5")Each compartment measures 0.72" (h) x 0.657" (W)x 0.4"(d) or 18.3mm (h) x 16.7mm (W) x 10.2mm (d), can hold up to 300pcs of 1206 size resistors/capacitorsContaining 144 values in the EIA Standard E-96 series from 0ohm to 10M;Those resistor are 1% 100ppm thick film surface mount resistors separately stored in BOX-ALL enclosures.Easy and quick access for all 144 values inside the boxLight, Portable, around 500g with all compartments filledEasy to transport the enclosure to other places.put it on a shelf to keep the bench top clean.Certified by RoHS regulationsEasy and quick access to each value, save time, space, save 80% compared with retail price for all these resistors;Weight: around 550gPackage list:1 unit of 0603 resistor kit1 unit of tweezers

Click here for technical specification for these thick Film Chip Resistors:

Below is the 144 value lists:

0.10ω

0.50ω

1.00ω

1.50ω

2.00ω

4.99ω

7.50ω

10.0ω

11.0ω

12.1ω

13.0ω

15.0ω

16.2ω

18.2ω

20.0ω

21.0ω

22.1ω

24.9ω

27.4ω

30.1ω

33.2ω

35.7ω

39.2ω

43.2ω

47.5ω

49.9ω

51.1ω

56.2ω

59.0ω

61.9ω

68.1ω

75.0ω

82.5ω

90.9ω

100ω

110ω

121ω

130ω

150ω

162ω

182ω

200ω

210ω

221ω

249ω

274ω

301ω

332ω

357ω

392ω

432ω

475ω

499ω

511ω

562ω

590ω

619ω

681ω

750ω

825ω

909ω

1.00K

1.10K

1.21K

1.30K

1.50K

1.62K

1.82K

2.00K

2.21K

2.49K

2.74K

3.01K

3.32K

3.57K

3.92K

4.32K

4.75K

4.99K

5.11K

5.62K

5.90K

6.19K

6.81K

7.50K

8.25K

9.09K

10.0K

11.0K

12.1K

13.0K

15.0K

16.2K

18.2K

20.0K

21.0K

22.1K

24.9K

27.4K

30.1K

33.2K

35.7K

39.2K

43.2K

47.5K

49.9K

51.1K

56.2K

59.0K

61.9K

68.1K

75.0K

82.5K

90.9K

100K

110K

121K

130K

150K

162K

182K

200K

210K

221K

249K

274K

301K

332K

392K

432K

475K

499K

511K

562K

619K

681K

750K

825K

909K

1.00M

2.00M

4.99M

---

---

---
