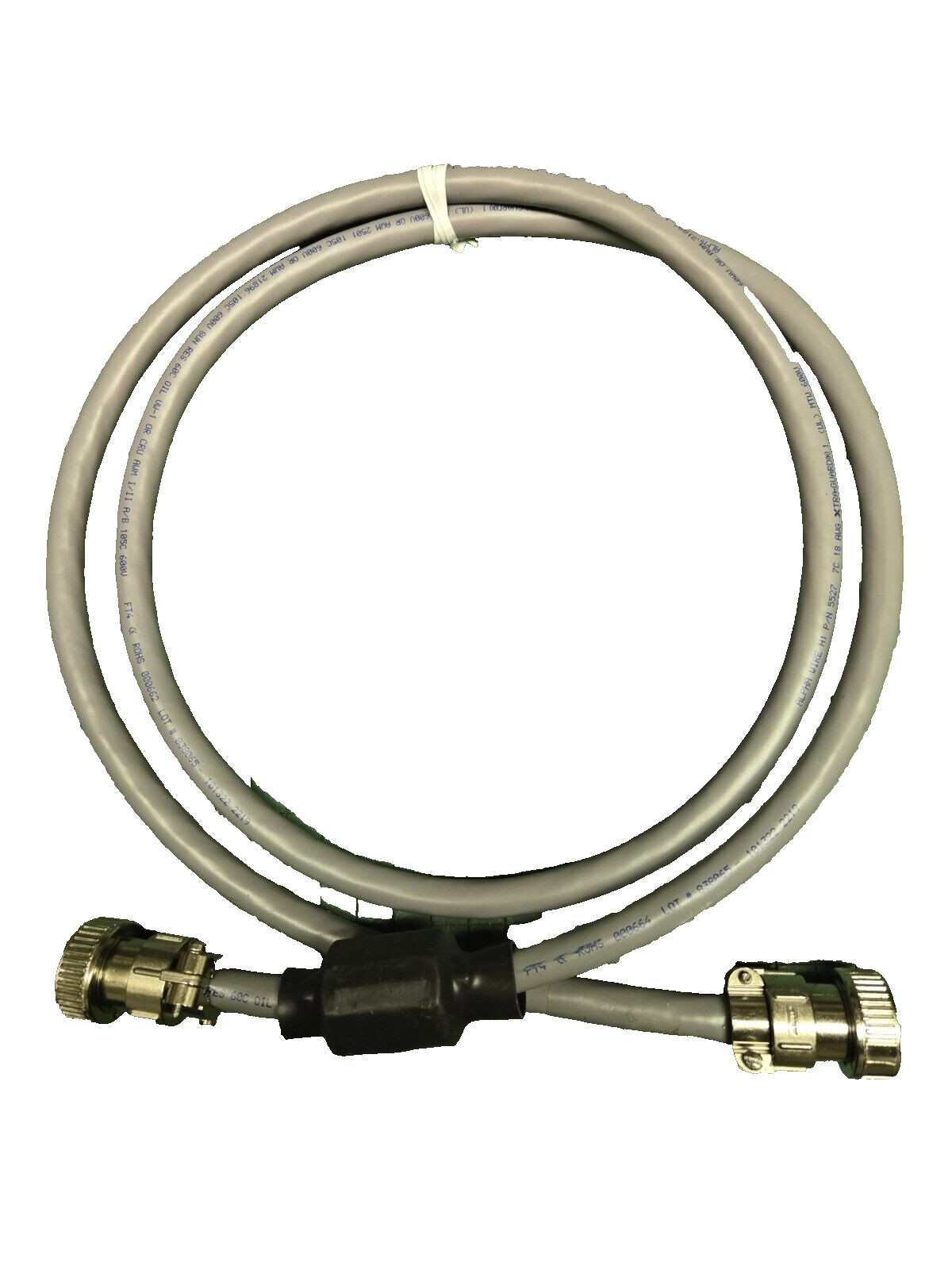

Alpha Wire, Xtra-Guard 1 5527, 18 AWG, 6 ft, w/208714-1, 208716-1 AMP Connectors For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Alpha Wire, Xtra-Guard 1 5527, 18 AWG, 6 ft, w/208714-1, 208716-1 AMP Connectors:
$130.00

Xtra-Guard® 1 - High performance in a tough PVC cable

High-performance cable for general-purpose applications
Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
UL SUN RES
Designed for use in ambient temperatures up to 105 ° C
Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
Provides exceptional protection contre EMI interference When Supra-Shield is specified

Diameters (In)1) Component 17 X 1 CONDa) Conductor18 (16/30) AWG Tinned Copper0.047b) Insulation0.032" Wall, Nom. PVC0.111(1) Color CodeAlpha Wire Color Code Cable Assembly7 Components Cableda) Twists:2.4 Twists/foot (min)b) Orientation:Components to be arranged from INSIDE LAYER to OUTSIDE LAYERc) Core WrapNonwoven Polyester Tape, 20% Overlap, Min.3) Shield:A/P/A Tape, 20% Overlap, Min.a) Drain Wire18 (16/30) AWG Tinned Copperb) BraidTinned Copper,70% Coverage, Nom.4) Jacket0.063" Wall, Nom.,PVC0.494 (0.517 Max.)a) Color(s)Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, Whiteb) Ripcord1 End 810 Denier Nylonc) PrintALPHA WIRE-* P/N 5527 7C 18 AWG
XTRAGUARD(R) 1 (UL) MTW 600V OR AWM 2501 105C
600V OR AWM 21896 105C 600V SUN RES 60C OIL
VW-1 OR CRU AWM I/II A/B 105C 600V
FT4 CE ROHS (SEQ FOOTAGE)
* = Factory CodeConnector A: AMP208714-1Product AttributeAttribute ValueSelect AttributeManufacturer:TE ConnectivityProduct Category:Standard Circular of Positions:7 PositionContact Gender:Without Socket ContactsShell Size:14Mounting Style:Free HangingTermination Style:CrimpContact Plating:-Shell Material:Zinc AlloyAccessory Type:-Diameter:26.19 mmHeight:31.12 mmIP ConnectivityContact Material:-Flammability Rating:UL 94 V-0Housing Material:Thermoplastic (TP)Lead Free Solder Processes:Not relevant for lead free processMating Style:ThreadedMounting Angle:StraightMounting Type:-Product Type:Standard Circular ConnectorShell Plating:NickelShell Style:PlugFactory Pack Quantity:12Subcategory:Circular ConnectorsTermination Post Length:-Thread Size:7/8-20Tradename:CPC - METAL SHELLUnit Weight:1.552054 oz
Connector B: AMP208716-1
Product AttributeAttribute ValueSelect AttributeManufacturer:TE ConnectivityProduct Category:Standard Circular of Positions:7 PositionContact Gender:Without Pin ContactsShell Size:14Mounting Style:Free HangingTermination Style:CrimpContact Plating:-Shell Material:Zinc AlloyAccessory Type:-Diameter:26.19 mmHeight:31.12 mmIP ConnectivityContact Material:-Flammability Rating:UL 94 V-0Housing Material:ThermoplasticLead Free Solder Processes:Not relevant for lead free processMating Style:ThreadedMounting Angle:StraightMounting Type:-Product Type:Standard Circular ConnectorShell Plating:NickelShell Style:PlugFactory Pack Quantity:12Subcategory:Circular ConnectorsTermination Post Length:-Thread Size:7/8-20Tradename:CPC - METAL SHELLUnit Weight:1.599992 oz
