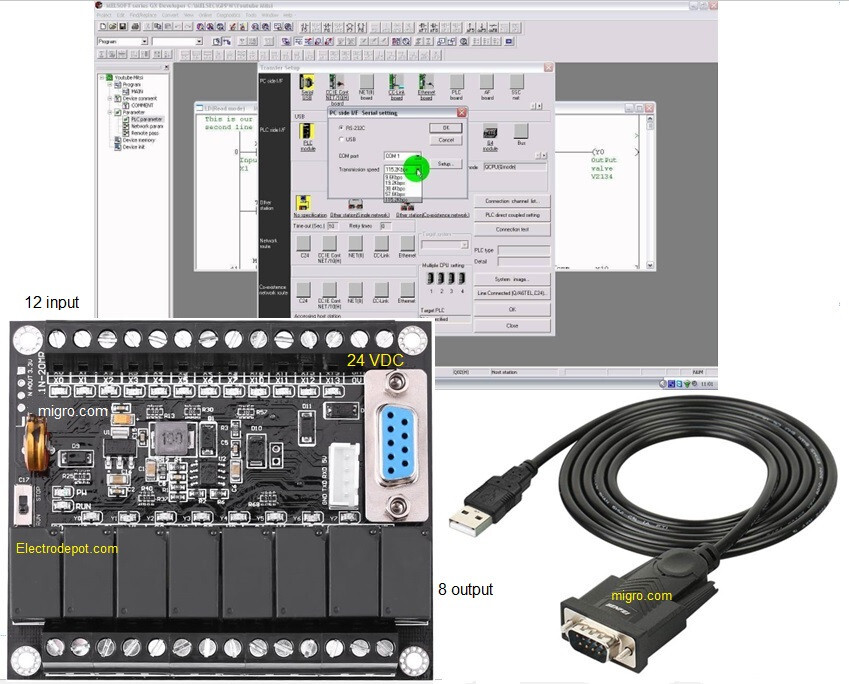

Automation Starter Kit Programmable PLC Ladder, USB Programming interface, 24VDC:
$149.99

8 Relay Outputs, Operation 24VDC1 USB Interface Programming Cable

And BONUS Professional Training CourseThe basic ladder logic Programmingsoftware

GX Developer Programming SoftwareGX-DEV FX- 8.25

Features: 1000 steps LadderDiagram,andInstructionList

Software supports all this FX processors

FX0/FX0S, FX0N, FX1S, FX1N, FX(FX2/FX2C) FX2N/FX2NC.

FX3u

FX MELSEC single user FX Win Version 8.25, 1000 step for FX PLCs controllers series.
This is the standard software easy to use and simple, intuitive interface and a short learning curve.

Full upload and download, monitor, test and program all the Mitsubishi FX-series PLC
package includes CD with the software and manuals in electronic format for programming and hardware installation .

PLC with 12 Inputs and 8 Relay Outputs

This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed.

High quality chip, stable performance, on-line download, on-line monitoring, automatic save when power off.

Program is written in ladder logic programming language, supports for GX-Developer, GX-work2.

Programming port is the port for program upload, download, test and monitor.

It is reusable, stable, easy to learn. The PLC transmission baud rate is 9600.

Operating Voltage:DC24（V）
Wide Power SupplyVoltage: 10-28VDC
Baud Rate: 9600
Programming Software:for GX-Developer, for GX-work2.
Size: Approx. 86 x 73x 20mm / 3.4 x 2.9 x 0.7inch
Weight: 120G Module function:
This module isprogrammable control, can achieve thousands of functions, stable and reliableworking performance, built-in watchdog timer circuit, to ensure that the modulefor a long time to run!!!
Some of the commonfeatures are shown as follows:

Turn on the power supply, the relay 1 is closed for N seconds and then disconnect the relay 2 for N seconds.
When the power supply is turned on, the relay 1 is switched off after N seconds, and then the relay 2 is closed for N seconds and then is turned off.
The power supply is switched on, the relay 1, 2 have no action, when a signal or trigger button, relay 1 closed off after N seconds; then relay 2 closed off after N seconds, until the next trigger, repeat the same action.
Through the signal 1, 2 programming, the control can be achieved on the relay 1 and 2 arbitrarily.
When the signal 1 has a signal, the relay 1 is closed, the relay 2 is disconnected; when the signal 2 has a signal, the relay 1 is turned off, and the relay 2 is closed.
Can be connected to the NPN sensor signal, the sensor signal programming, to achieve arbitrary control of the relay.
When the signal 1 is triggered, the relay 1 is controlled, and when the signal 2 is triggered, the relay 2 is controlled.
Turn on the power supply, the control motor is turning N seconds, and then reverse N seconds, followed by the cycle.
When the signal 1 has a signal, the motor is controlled to rotate; when the signal 2 has a signal, the motor is reversed.

Input high speed pulse C235, C251 and FX1N compatible.
Output relay 1A output, Rated current 5A, can directly drive DC solenoid valve, AC solenoid valve, AC contactor, AC motor, etc,.

The PLC with two programming port. The 232 interface, you can directly use the USB-232 serial port with a computer to download the program directly. The TTL interface.
Built-in Analog input AD, corresponding to internal data register D5030.(Not D8030)
Built-in Analog output DA, corresponding to internal data register D5101.
When the PLC need to connect with the touch screen or text, can be used to connect 232 programming port.
