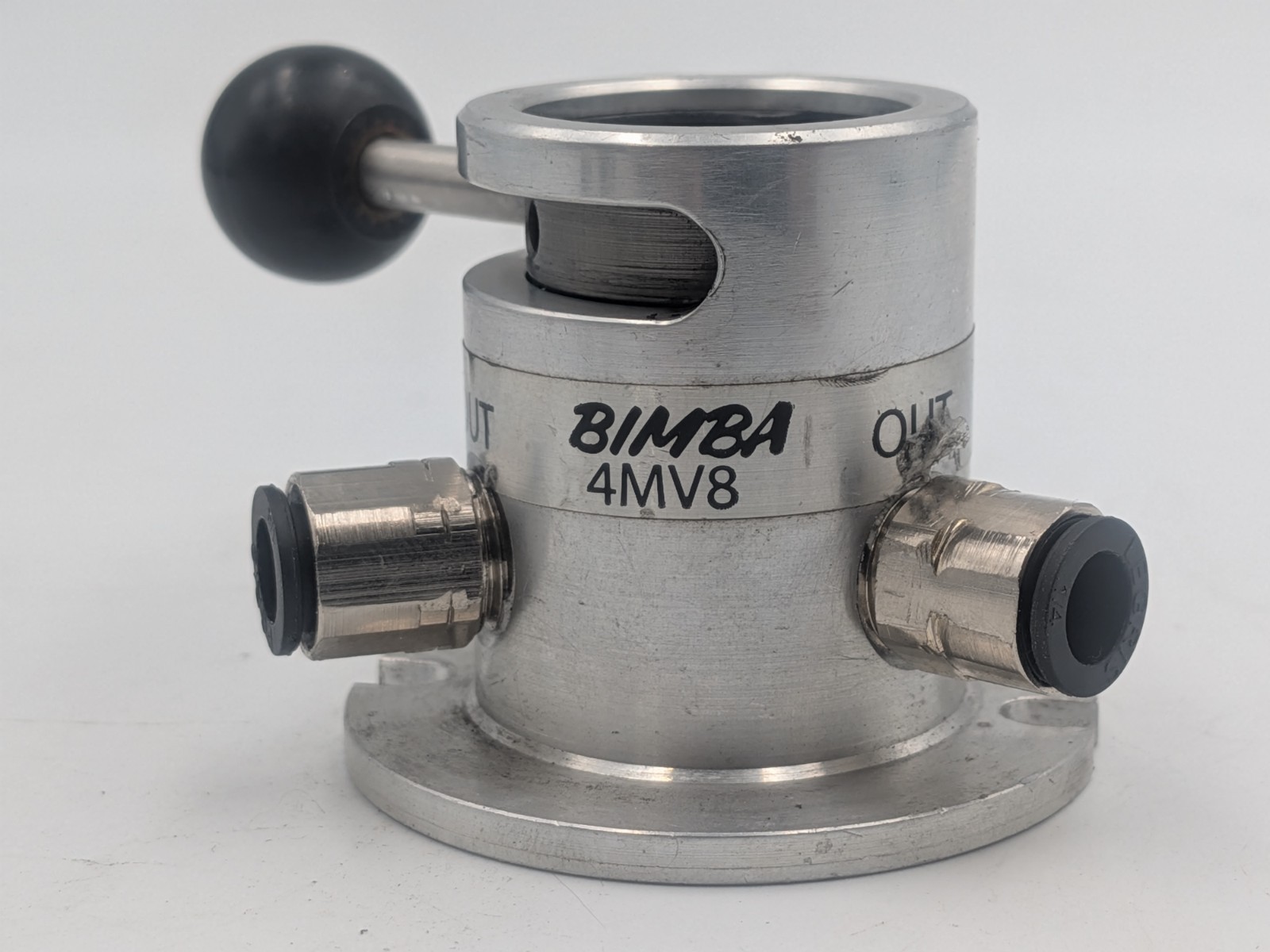

BIMBA 4MV8 4 WAY DIRECTIONAL CONTROL MINI ROTARY II VALVE MEAD MHL4 3 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

BIMBA 4MV8 4 WAY DIRECTIONAL CONTROL MINI ROTARY II VALVE MEAD MHL4 3:
$129.00

SpecificationsOverall Height 1.63 in
Overall Length 1.92 in
Port 1 Size/Type 1/8 NPT
Actuator Type Rod Lever
Body Material Aluminum
Flow Coefficient Cv Flow Factor Kv 0.14 Cv
Flow Direction 4-Way
Maximum Operating Pressure +150 psi
Minimum Operating Pressure 0 psi
Operating Medium Air
Operating Pressure Range 0 to +150 psi
Operating Temperature Range -40 to +250 °F
Piping Type Body Ported
Port Connection Type Threaded
Port Gender Female
Seal Material Nitrile
Standards Met OSHA
Valve Function Ball4-WAY HAND LEVER VALVE
MHL valves provide either three-way pilot control (MHL-3) or four-way directional control (MHL-4)
To operate MHL valves, simply move the ball handle across the slot on the valve body
Handle rotates a precision-lapped disc to control the directional flow of air
Hardcoat anodized aluminum disc allows virtually effortless handle motion
Handle will hold in any position
Air exhausts through the disc and out to atmosphere
Flow: 0.14 Cv
Temperature range: -40°F to 250°F
Lubrication: SAE 10
Pressure range: 0 to 150 psi (air only)
