Beckett 51824U PowerLight Oil Burner Electronic Igniter 120V S SF SM CF500 CF800 For Sale

Beckett 51824U PowerLight Oil Burner Electronic Igniter 120V S SF SM CF500 CF800
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Beckett 51824U PowerLight Oil Burner Electronic Igniter 120V S SF SM CF500 CF800:
$89.00

Beckett 51824U PowerLight Electronic Oil Burner Igniter – 120V 20kV

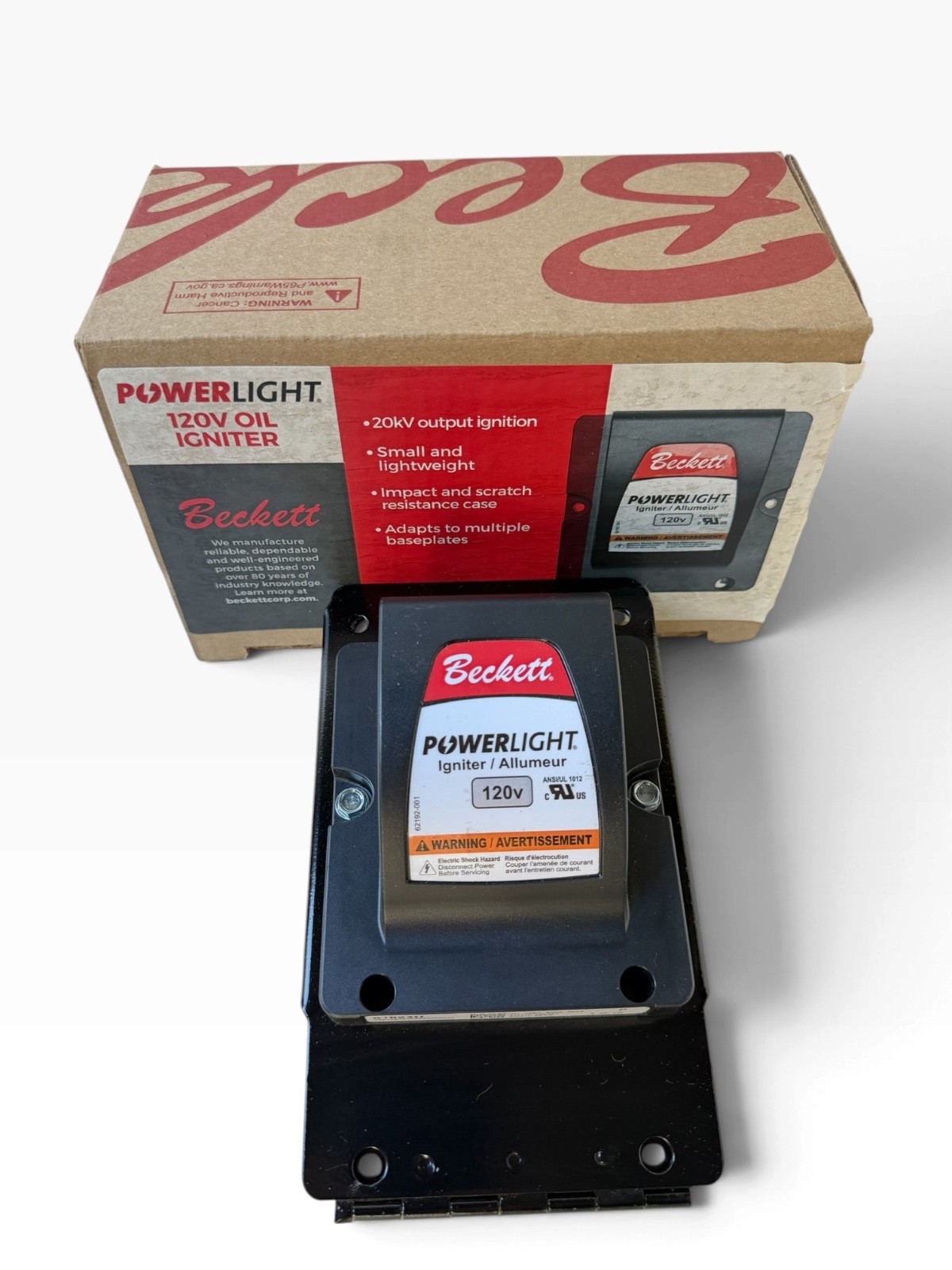

Genuine Beckett PowerLight 51824U Electronic Igniter with S-Series Mounting Baseplate

The Beckett 51824U PowerLight is a high-voltage electronic oil burner igniter designed for dependable ignition in compatible residential and commercial fuel oil burner systems.

This genuine Beckett electronic ignition assembly features a 120V AC power input, 20kV peak output, and a durable, lightweight housing. It includes the S-style mounting baseplate shown in the photographs.

Ideal for HVAC technicians, heating contractors, oil burner service professionals, and equipment maintenance applications.

Technical Beckett CorporationBrandBeckettModel / Part Number51824UProduct SeriesPowerLightProduct TypeElectronic Oil Burner IgniterInput Voltage120 VACFrequency60 Hz (unit label)Input Power35 VAOutput Voltage20kV Peak / 6kV RMSOutput Current35 mAIgnition TechnologySolid-State ElectronicMounting ConfigurationS-Series BaseplateEnclosureImpact-Resistant ThermoplasticQuantity1Product Marking52437003Unit Country MarkingItalyCompatible Beckett Burner Models

Manufacturer-listed applications:

  • Beckett S

  • Beckett SF

  • Beckett SM

  • Beckett SMG

  • Beckett SR

  • Beckett CF500

  • Beckett CF800

Designed for fuel oil burner ignition systems, including compatible heating equipment and oil-fired hot water pressure washer applications.

Replacement and Cross-Reference Part NumbersBrand / ReferencePart NumberBeckett – Exact Model51824UBeckett – Catalog Reference7-51824OEM Reference9.803-060.0OEM Reference98030600OEM ReferenceX98030600OEM Reference87011250OEM Reference079682

Cross-reference numbers are provided to help identify compatible replacement applications. Always verify the original part number, voltage, mounting baseplate, and burner configuration before ordering.

Features

  • Genuine Beckett PowerLight electronic ignition assembly

  • 120V AC input

  • 20kV peak ignition output

  • Solid-state electronic ignition technology

  • Compact and lightweight scratch-resistant housing

  • S-series mounting baseplate configuration

  • Designed for compatible oil burner applications

  • Suitable for residential and commercial heating equipment

  • Replacement component for oil burner maintenance and repair

Typical Applications

  • Oil-fired boilers

  • Oil-fired furnaces

  • Commercial oil burner equipment

  • Hydronic heating systems

  • Oil-fired pressure washer burners

  • Fuel oil heating equipment

  • HVAC service and burner repair

Product Identification

  • Beckett PowerLight

  • MPN: 51824U

  • Label marking: 52437003

  • Input: 120V AC, 60Hz, 35VA

  • Output: 20kV Peak, 35mA

  • Application marking: S, SF, SM


Important Compatibility Information

This item is intended for installation by a qualified HVAC or oil burner service technician.

Verify compatibility with your existing Beckett burner, including electrical specifications, electrode connections, and mounting arrangement.

Please confirm your burner model and original igniter part number before purchasing.
