On eBay Now...CORVALENT H61IX Industrial Motherboard with i7-13700E CPU Installed (Included) For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

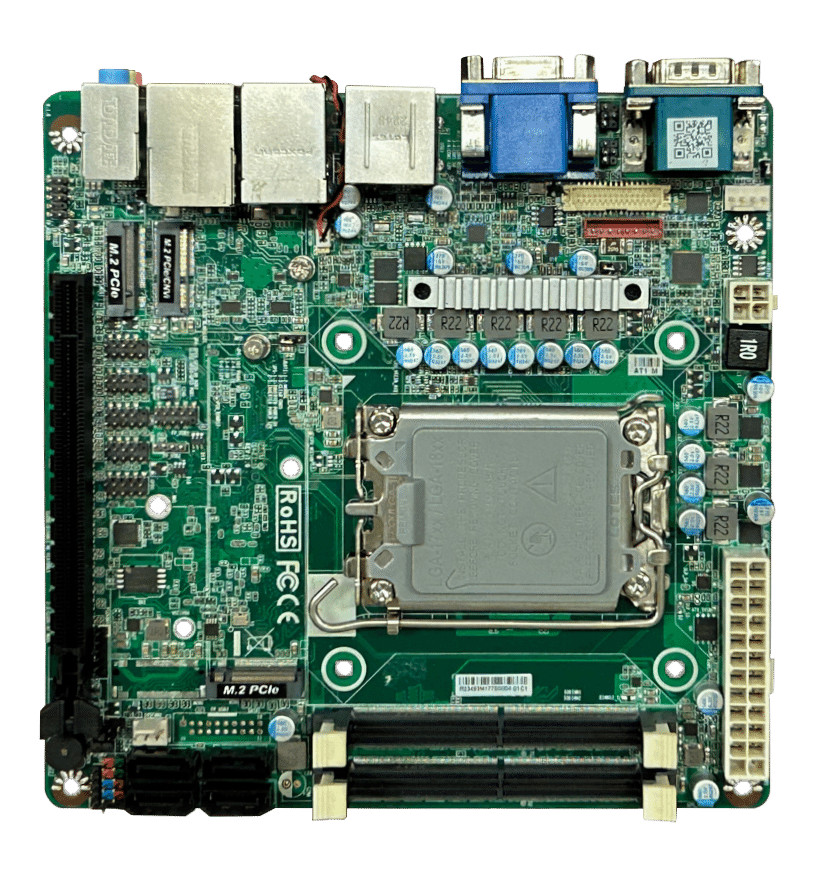

CORVALENT H61IX Industrial Motherboard with i7-13700E CPU Installed (Included):
$999.99
The H61IX Industrial / Medical Grade Mini ATX Motherboard:
Meticulously engineered for the demands of the industrialworld, the H61IX motherboard sets a new standard for data transfer, performanceand longevity. It supports DDR5 for fast data transfer and resposiviness. TheH61IX is ideal for use on Semiconductor, Mission-Critical and medicalapplications. This Corvalent H61IX industrial motherboard comes with an Intel Corei7-13700E processor included, featuring the Intel H610E chipset, DDR5 SO-DIMMmemory support, dual Ethernet, and a compact 170 x 170 mm footprint. Designedfor industrial and embedded systems, it combines modern processor support withPCIe expansion, SATA and M.2 connectivity, multiple display interfaces, andextensive serial connectivity.
Included Intel Core i7 13700E processor·The E suffix identifies anembedded model intended for industrial and IoT systems. It is a distinctprocessor model, rather than a revision designation or a reference toEfficient-cores.
·13th Gen Raptor Lake; 16cores (8 Performance-cores and 8 Efficient-cores), 24 threads, up to 5.10GHzturbo, 30MB Intel Smart Cache, and 65W processor base power. Base power is nota maximum power-consumption rating.
·Integrated Intel UHDGraphics 770 with Intel Quick Sync Video. Supports VT-x, VT-d, and Intel TimeCoordinated Computing. Intel lists vPro Enterprise eligibility and AMT;availability requires compatible platform hardware, firmware, and configurationand is not confirmed for this board.
·Embedded positioning suitsindustrial platform designs; it does not by itself establish extendedtemperature ratings or a warranty for this item.
The main image is from the manufacturer's website, Images 2 and 3 are of the actual item.
CORVALENT H61IX Industrial Motherboard with i7-13700E CPU Installed (Included)
$999.99
