CS43516 PTO Driveline for BushHog Rotary Cutter SQ60 SQ72 SQ84 SQ160 SQ172 SQ600 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

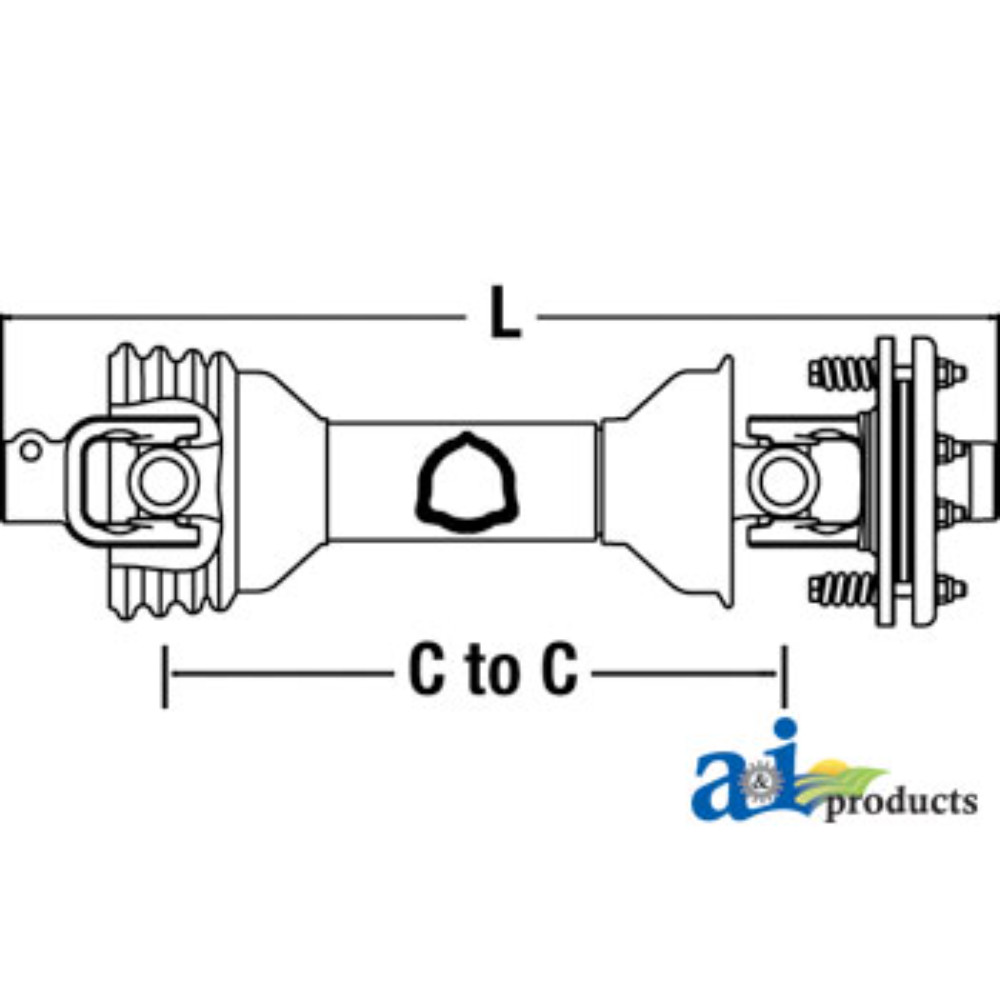

CS43516 PTO Driveline for BushHog Rotary Cutter SQ60 SQ72 SQ84 SQ160 SQ172 SQ600:
$428.99

Rotor Tiller driveline with FF1 friction clutch. 100 series, category 3 (33 hp @ 540 rpm), size 4 driveline. Minimum C-to-C length: 35" (885 mm), Maximum C-to-C length: 52" (1310 mm), Total collapsed length: 45" (1130 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 Spline FF1 7.09" friction clutch. Driveline is a pull/tow type. Fits Bush Hog, John Deere, and Long Rotor Tillers.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Genuine alternative to original part.

C to C Max:1310 mm/ 52"

C to C Min:885 mm/ 35"

Category:3 (35HP)

Clutch Diameter:7.09"

Implement:1 3/8" - 6 SPL. FF1 FR.CL.

Replaces:88610

Series:100

Size:4

Total Collapsed Length:1130 mm/ 45"

Tractor:1 3/8" -6

Type:Pull/Towed

Replaces: CS4090E MISCELLANEOUS

CS43514 DRIVE-LINE

ECC4383 EDCOR

PM14106438 JOHN DEERE

A-50034239 BUSH HOG

A-50034244 BUSH HOG

A-50053125 BUSH HOG

A-50053126 BUSH HOG

A-50053132 BUSH HOG

Crossed From: BW00455 JOHN DEERE

W14106438DS CASE-IH

A-14106438 A & I MEGA-CROSS

147129 KING KUTTER

147134 KING KUTTER

3013-6075 A & I MEGA-CROSS

76735 BUSH HOG

88610 MISCELLANEOUS

971-14106438 A & I MEGA-CROSS

Sections and Models
Driveline (by application) > Driveline Assembly(Miscellaneous) TILLER: (UNDEFINED)Bush Hog TILLER: RTMBush Hog TILLER: RTNBush Hog TILLER: RTSJohn Deere TILLER: TG-48John Deere TILLER: TG-60YJohn Deere TILLER: TG-72YLong TILLER: 1504Long TILLER: 1537Long TILLER: 1542Long TILLER: 8050Long TILLER: 8060Long TILLER: 8070Driveline > Driveline Assembly(Miscellaneous) Alternative PTO FRCL: (UNDEFINED)Bondioli & Pavesi 100 Series: Size 4
