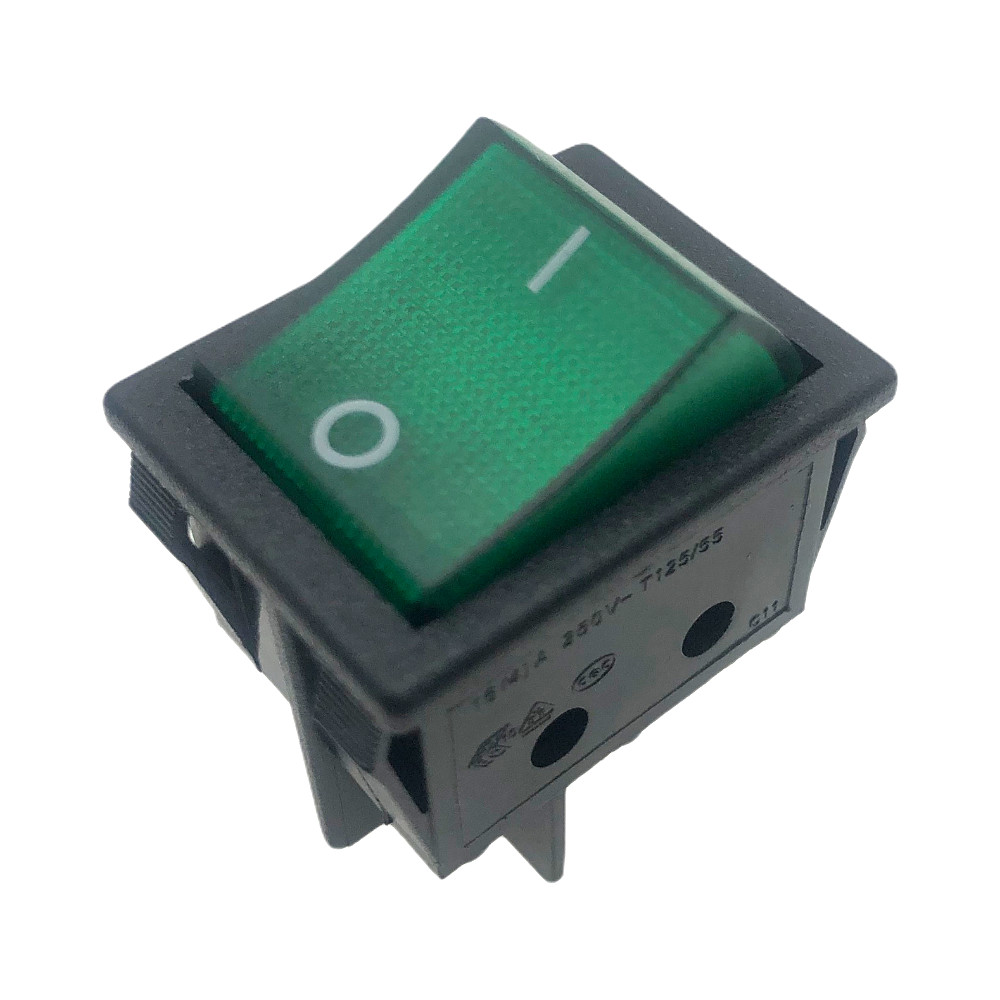

Canal R Series Rocker Switch Green Double Pole 20A 16A 125V 250V For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Canal R Series Rocker Switch Green Double Pole 20A 16A 125V 250V:
$6.20

US SHIPPING Canal R Series Rocker Switch Green Double Pole 20A 16A 125V 250V

Features & Specifications:
Replaces: Hongju R Series, SCI R13-69
Switch Specifications:
16A 125/250VAC, 1/4HP
20A 125/250VAC, 3/4 HP
16(4)A~250VAC T125/55
Insulation resistance : 100M ohm min, at 500VDC
Dielectric strength : 1,000 VAC(UL), 3000VAC(VDE)for 1 minute
Initial contact resistance : 20m ohm max.
Electrical life: 6000(UL); 10000(VDE) cycles
Standard 22x30mm snap-in size
Double Pole Single Throw
One actuator
Quick-connect terminals :105°C
Built in with green neon lamp
Bezel 32mm x 25mm
Panel cut-out roughly 22mm x 30mm (snaps in)
UL certified (US)
CSA certified (Canada)
CQC certiied (China)
