Car Relay 12V 80A SPST 4-pin Heavy Duty Relay Car DC Normal Open Relay 2 PCS:
$15.98

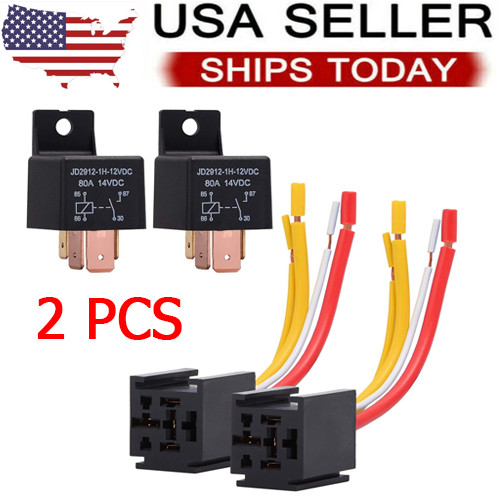

Car Relay 12V 80A SPST 4-pin Heavy Duty Relay Car DC Normal Open Relay 2 PCS

Product Specifications

Product Name: 12V 80A Automotive Relay
Contact Form: 1a, 1b, 1c (1 Form A / 1 Form B / 1 Form C)
Contact Capacity:
- 1a: 80A 14VDC
- 1b: 60A 14VDC
- 1c: 80A/60A 14VDC
Coil: 12VDC, 1.8W Power
Contact Resistance: ≤50mΩ
Initial Insulation Resistance: ≥1000MΩ
Dielectric Strength: 500VAC (between off-contacts / coil & contacts)
Lifespan: Electrical Life 100,000 operations; Mechanical Life 1,000,000 operations
Size: 28.028.025.0mm
Operating Temperature: -40°C ~ +125°C
Mount Type: Tri-clamp connection, socket mount
Key Features

High-current heavy-duty design for automotive control circuits, stable high power switching
Wide temperature tolerance, works reliably in extreme cold and hot vehicle environments
Low contact resistance, good insulation performance, safe and stable for long-term use
Easy socket mounting, simple installation and wiring for car, truck, RV, marine electrical systems

Package Contents2 × 12V 80A Relays + 2 × Relay SocketsApplicationIdeal for automotive control systems, vehicle lights, fuel pumps, fans, winches and other 12V high-current electrical accessories
