Copeland ZR40K3-PFV-230 208/230V 1PH R22 Scroll Compressor 40,600 BTU OEM For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

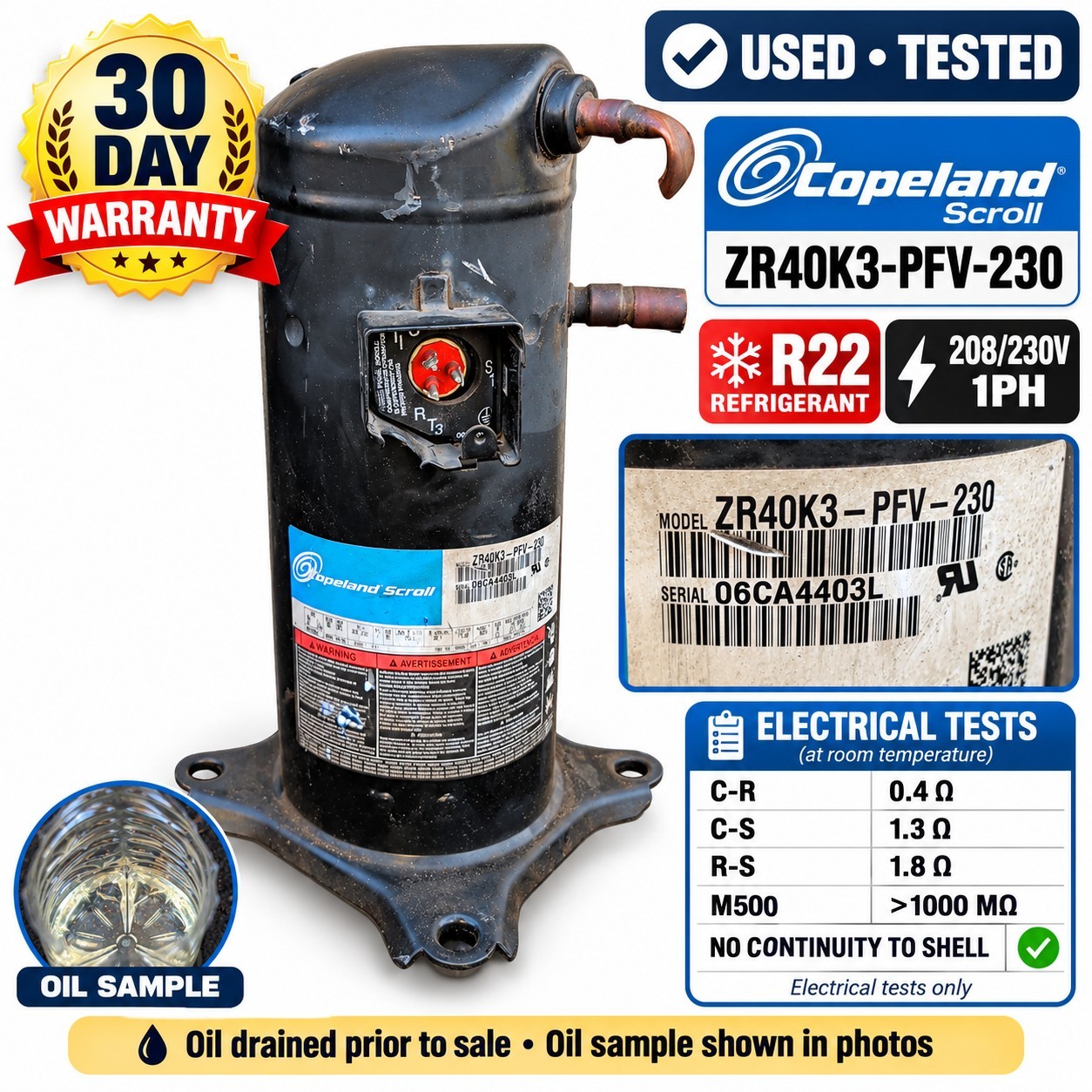

Copeland ZR40K3-PFV-230 208/230V 1PH R22 Scroll Compressor 40,600 BTU OEM:
$475.00

COPELAND ZR40K3-PFV-230 SCROLL COMPRESSOR – R22 – 208/230V – 1 PHASE – USED & ELECTRICALLY TESTED

Manufacturer: Copeland / Emerson Climate Technologies

Model: ZR40K3-PFV-230

Serial Number: 06CA4403L

Compressor Type: Scroll

Refrigerant: R22

Voltage: 208/230V

Phase: Single Phase

Frequency: 60 Hz

Nominal Capacity: Approximately 40,600 BTU/hr

Approximate Nominal Tonnage: 3.4 Tons

Condition: Used

This listing is for a genuine Copeland scroll compressor, model ZR40K3-PFV-230.

The compressor was removed from service and electrically tested prior to listing. The actual measured test results are documented below so the buyer can evaluate the electrical condition before purchase.

COMPATIBLE / CROSS-REFERENCE PART NUMBERS

Exact Model:

Important Reference / Replacement-Family Numbers:

ZR40K3-PFV-930

ZR40K3E-PFV-230

ZR40K5E-PFV-230

ZR40KC-PFV

Equipment / OEM Reference Numbers:

Bard 8000-176

Bard 8000-914

Bard 8552-062

061782603

11012502

Aftermarket Replacement Family:

AR40KP-BFV

Cross-reference information is provided as a purchasing aid only.

Some of the numbers listed above are replacement-family, equipment-OEM, or aftermarket reference numbers and should not be interpreted as guaranteed direct-fit substitutes in every application.

Equipment manufacturers may use different compressor configurations depending on model, production date, refrigerant circuit design, tubing arrangement, mounting, electrical characteristics, and application.

Buyer must verify compatibility with their specific equipment before purchase.

ELECTRICAL TEST RESULTS

Winding Resistance:

C to R: 0.4 Ω

C to S: 1.3 Ω

R to S: 1.8 Ω

The measured winding values are internally consistent, with C-R plus C-S approximately corresponding to R-S.

Insulation Resistance:

Tested with SUPCO M500 megohmmeter

Result: Greater than 1000 MΩ

Ground / Shell Test:

No continuity detected from compressor terminals to compressor shell / ground.

These are the actual measured electrical results from this compressor.

OIL CONDITION

The compressor oil was drained prior to sale.

The drained oil appeared light / transparent as shown in the listing photographs. The actual oil sample is photographed for buyer inspection.

Buyer should assume the compressor is being shipped without the required operating oil charge and must service / fill the compressor according to Copeland and equipment-manufacturer specifications before installation.

Do not assume the compressor contains the proper quantity or type of oil for operation.

CONDITION

Used compressor.

The compressor shows normal signs of previous installation, removal, handling, and service, including cosmetic scratches, scuffs, oxidation, and other surface marks.

Refrigerant tubing was cut during removal from the original equipment.

Please review all listing photographs carefully for:

- Exact physical condition

- Tubing connection configuration

- Suction / discharge orientation

- Mounting configuration

- Terminal condition

- Model and serial information

- Cosmetic condition

You will receive the exact compressor shown in the photographs.

TESTING DISCLOSURE

Testing performed on this compressor includes:

- Winding resistance measurements

- Insulation resistance / megohm testing

- Continuity-to-shell / ground testing

- Visual inspection

- Visual inspection of drained compressor oil

This listing represents only the actual tests and observations performed on this compressor.

Electrical testing only.

No mechanical run-test or operational performance claim is being made unless specifically stated elsewhere in the listing.

Buyer should evaluate the documented test results and determine suitability for their application.

INSTALLATION / COMPATIBILITY

Professional HVAC installation is strongly recommended.

Buyer is responsible for verifying:

- Exact compressor model number

- Voltage

- Phase

- Frequency

- Refrigerant

- Capacity

- Suction and discharge tubing size

- Tubing orientation

- Mounting configuration

- Electrical requirements

- Capacitor / start component requirements

- Oil type and quantity

- Equipment compatibility

- Refrigeration-system cleanliness and condition

Do not purchase based only on tonnage, physical appearance, or partial model-number similarity.

A compressor failure can be caused by conditions elsewhere in the HVAC system, including:

- Contamination

- Acid

- Moisture

- Improper refrigerant charge

- Restricted metering devices

- Electrical faults

- Incorrect voltage

- Inadequate lubrication

- Incorrect oil

- Improper evacuation

- Improper installation

- System restrictions

- Other failed components

The condition of the overall refrigeration system should be verified before installation of any replacement compressor.

30-DAY WARRANTY

This compressor includes a 30-day warranty covering electrical failure of the compressor itself only.

Warranty does not cover:

- Labor

- Refrigerant

- Compressor oil

- Recovery

- Evacuation

- Charging

- Installation

- Removal

- Reinstallation

- Diagnostics

- Service calls

- Replacement shipping

- Other system components

- Incidental expenses

- Consequential expenses

RETURN POLICY

Please verify compatibility before installation.

Any compressor returned after being opened, installed, connected, used, or otherwise altered requires inspection and retesting.

A 50% handling / testing / restocking deduction may apply to opened, installed, used, or altered returns based on returned condition.

Buyer is responsible for selecting the correct compressor for the application.

Please compare your existing compressor model, electrical specifications, refrigerant, capacity, tubing connections, mounting, oil requirements, and equipment specifications before ordering.

Genuine Copeland / Emerson Scroll Compressor

ZR40K3-PFV-230

R22

208/230V

Single Phase

Electrically Tested

Insulation Resistance Greater Than 1000 MΩ

No Continuity to Ground

Oil Drained

30-Day Electrical Warranty
