DC12V 6000N 1320lbs Heavy Duty Linear Actuator 6\" - 40\" Stroke 4mm/s Speed DIY:
$97.99

Store CategoriesStore Categories

6000N Linear Actuator
Long Stroke Linear Actuator
Heavy Duty Linear Actuator
Fest Speed Linear Actuator
Mini Micro Linear Actuator
For Linear Actuator
Reciprocating Cycle Linear Act
Linear Scale DRO
Product Description
⚙️【Specification】

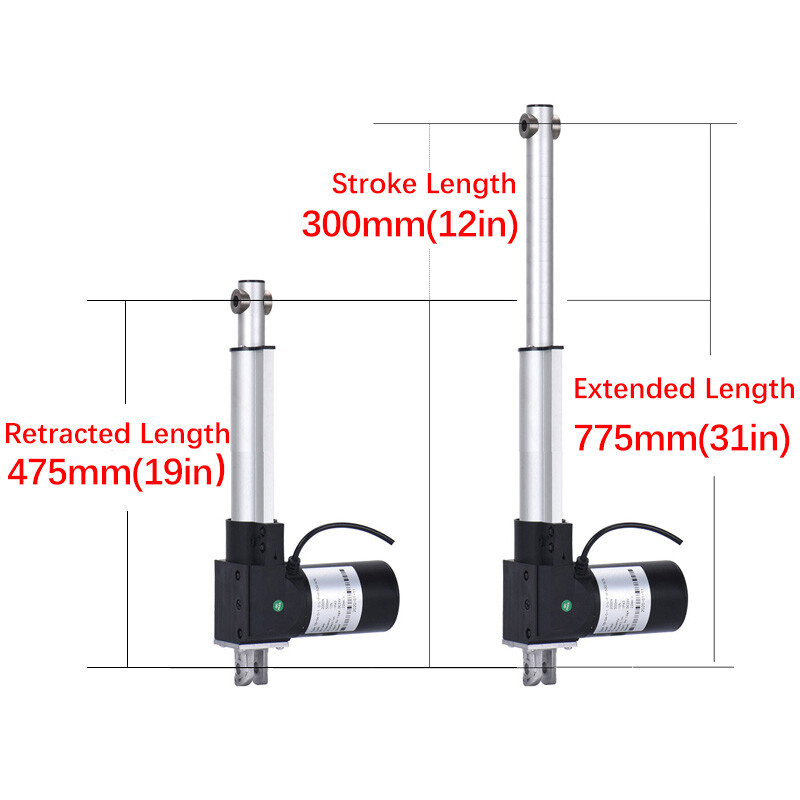

Input Voltage DC 12V Stroke length 150-1000mm (Optional) Max Push Load 1320Ibs / 6000N Max Pull Load 880lbs / 4000N No Load Travel Speed 0.2\"/sec (5mm/s) LoadSpeed 0.16\"/sec (4mm/s) Power 60W Noise Level dB≤50 Protection Class IP43 Main Material Aluminium Alloy Ambient Temperature -30°C to +65°C
🛡️【High quality】
- The linear actuator is made of high quality aluminum;with high performance motor and built-in limit switch,it can be stopped at any position and automatically stop at the top,with self-locking function.
💡【Features】
- Protection class: IP43 ;
- Noise level below 50dB ;
- Ambient temperature:-30° C to +65°C;
- With reliable performance, stable running, and good environment adaptability.
- It is recommended to use a 12V 20A battery or power adapter.
🛠️【Wide application】
- Linear actuator can be widely used in industrial electric lifting system, electric bed, traction bed, electric sofa, electric lifting lever, electric booth,electric sunroof.
🔒【Package included】
- 1×DC 12V Linear Actuator
- 2×Mounting Brackets
- 1 × Remote Controller(Optional)
⚠️【Details】
Linear Actuator：
- Power Suggestion: Recommended 12V 20A battery or power adapter for stable startup under heavy loads.
- Red wire to the positive terminal and black wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.
- The operating frequency of this actuator is 20%. It means that your actuator needs 8 minutes to rest for every 2 minute of work.
- The linear actuator is not completely waterproof, please do not directly immerse in water.
Remote Controller：
- 【Basic Information】Working voltage DC 12V , It is specially designed for DC 12V linear actuator.It can control your actuator to move forward & reverse more easily.
- 【Remote Control Distance】Without doors and walls blocking,remote control distance up to 230 feet / 70 meter.
- 【Easy to use】Press the up button linear actuator move forward, press the down button linear actuator move backward. Press the middle button,linear actuator stop moving.
- 【Stable & Safe】The wireless remote controll with high receive sensitivity and more stable.Made of the ABS material and flame retardant material,more safer.
