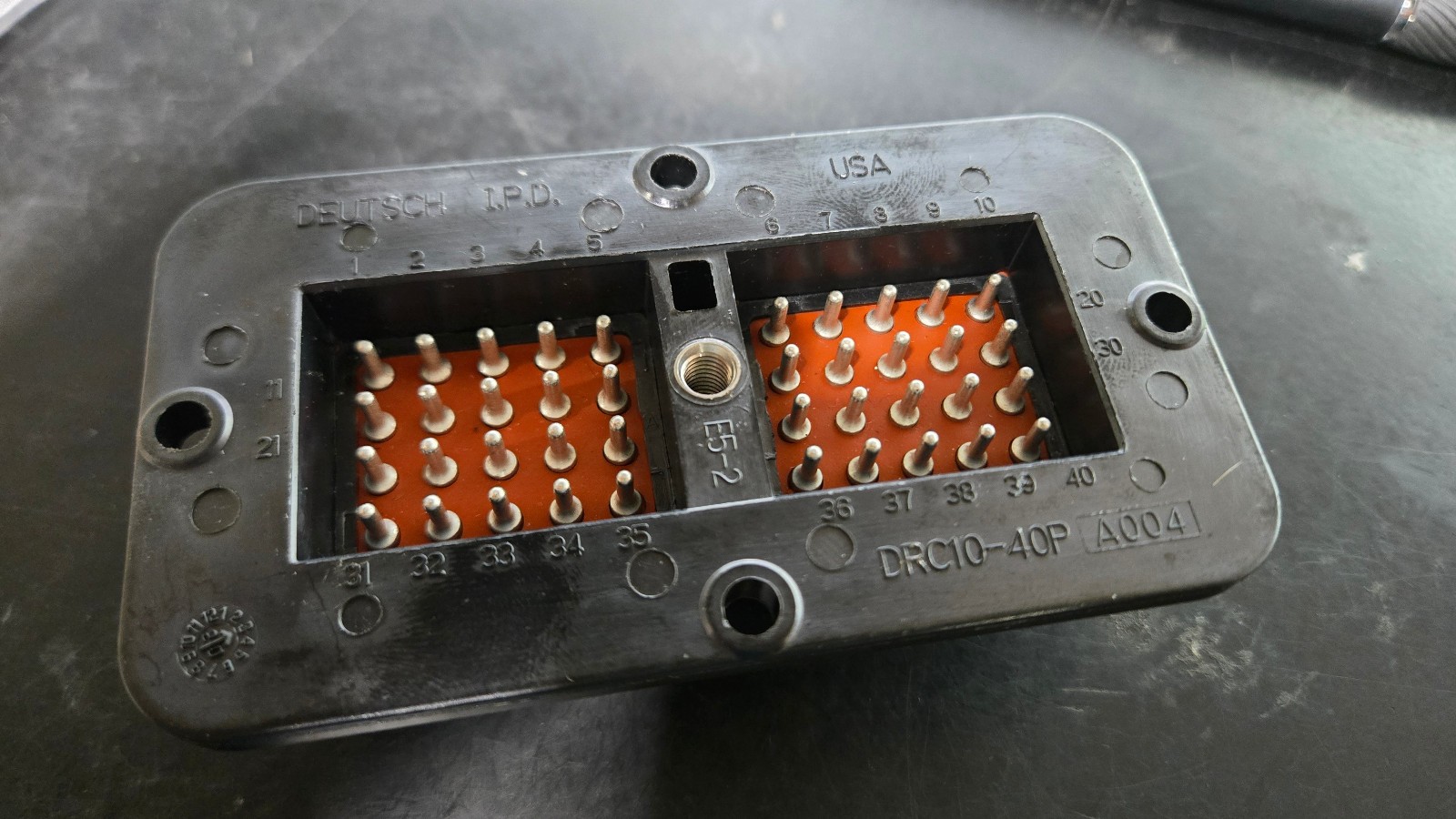

DEUTSCH DRC10-40P: 40-Position Populated Rectangular Automotive Receptacle For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

DEUTSCH DRC10-40P: 40-Position Populated Rectangular Automotive Receptacle:
$24.95

Keep this in mind: 10,000 unit price is 41.40ea
These are an absolute bargain.
CategoryConnectors, InterconnectsRectangular ConnectorsHeaders, Male PinsTerminationSolderMfrTE Connectivity Deutsch ConnectorsFastening TypePush-PullSeriesDRCContact Length - Post0.155\" (3.94mm)PackagingBulkInsulation Height0.855\" (21.72mm)Part StatusActiveContact ShapeCircularConnector TypeReceptacleContact Finish - MatingTinContact TypeMale PinContact Finish - PostTinPitch - Mating0.216\" (5.48mm)Contact MaterialCopper AlloyNumber of Positions40FeaturesSealedNumber of Rows4Operating Temperature-55°C ~ 125°CRow Spacing - Mating0.216\" (5.48mm)Material Flammability RatingUL94 V-0Number of Positions LoadedAllInsulation ColorBlackStyleBoard to BoardCurrent Rating (Amps)13AShroudingShrouded - 4 WallVoltage Rating250VACMounting TypePanel Mount, Through HoleBase Product NumberDRC10

---

---

---

DEUTSCH DRC10-40P: 40-Position Populated Rectangular Automotive Receptacle

$24.95

---

Deutsch DRC13-40PA 40P RECP

$63.74

---

DEUTSCH DRC14-40PA CONNECTOR RECEPTACLE IN LINE 40 WAY

$55.00

---
