DPS DC 0~120v 160V 0~2A 3A Adjustable Power Supply Lab Variable Bench Switching:
$92.99

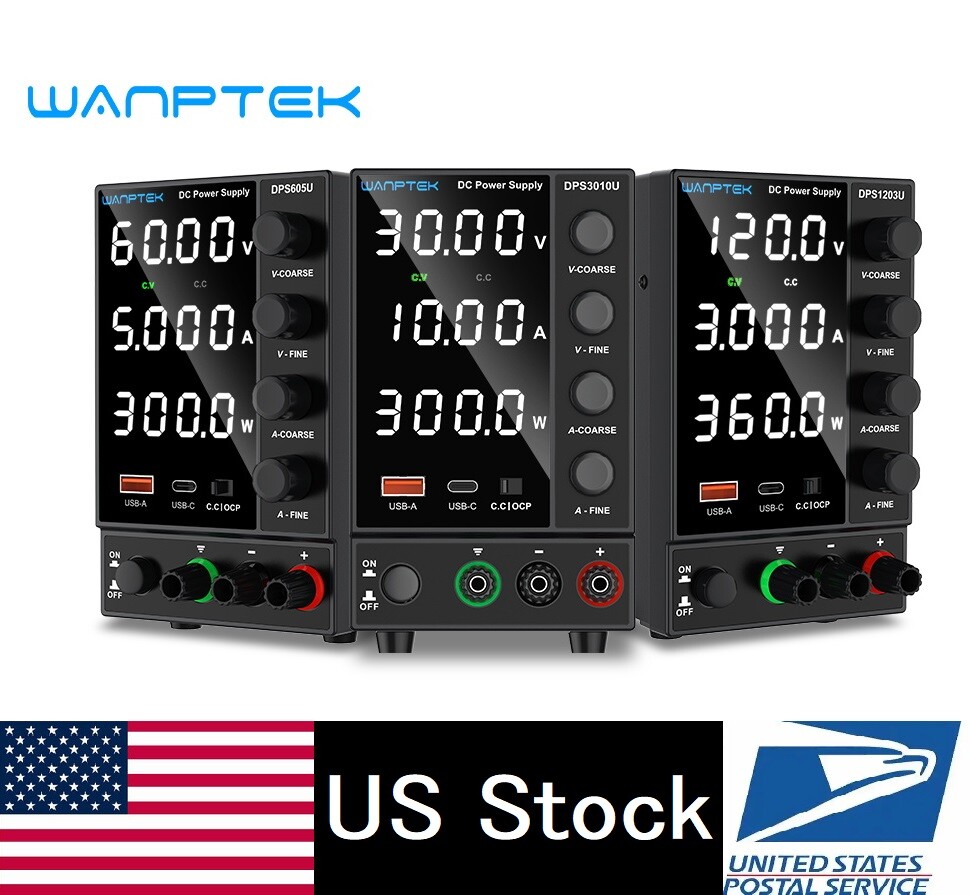

DPS series DC stabilized power supply

Product Description

DPS series products are a three window four digit digital display switch DC stabilized power supply that can simultaneously display voltage, current, and power. The product is widely used in mobile phone repair, computer repair, school teaching, and production line use. The use of a coding potentiometer can continuously adjust the output voltage and current between 0 and the nominal value, and can display the set value in advance, making it convenient to use and adjust. The stability and ripple coefficient of the power supply are very good, and the machine has a perfect OCP short circuit protection circuit. The auxiliary function includes USB-A/Type-C fast charging function. Its small size, light weight, beautiful design, convenient operation, and ability to work at full load for long periods of time are deeply loved by users.

Product Characteristics

USB-A/Type-C fast charging function, supporting multiple fast charging protocols.

OCP short circuit protection function, short circuit stops output.

Small size, light weight, and high power density.

Four sets of encoders, coarse and fine tuning, high-precision adjustment.

Three sets of LED four digit displays for voltage, current, and power, with high accuracy.

Temperature controlled fan for heat dissipation, low noise, and long service life.

Application areas

1. Production line testing.

2. Repair of mobile phones, computers, and electrical appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

product parameter list

ModelDPS1203UDPS1602UOutput Power360W320WOutput voltage0~120V0~160VOutput current0~3A0~2AAuxiliary functionsUSB-A/Type-C fast charging, supporting various fast charging protocolsProtection modeCurrent limiting protection / short circuit alarm stop output, self recoveryWorking environmentInput temperature：0℃～40℃;relative humidity:<80%RHStorage temperature：-10℃～70℃;relative humidity:<70%RHConstant voltage CVVoltage stability：0.1%±3mVLoad stability：0.2%±3mVRipple voltage：≤0.5%Vp-p0 to rated voltage continuously adjustableConstant current CCCurrent stability：0.1%±3mALoad stability：0.2%±3mARipple current：≤0.5%Vp-pRecovery time：≤500μSTemperature coefficient：≤100ppm/℃0 to rated current continuously adjustableDisplay0.56 inch white light four digit digital tube displayDisplay accuracy：0.5%±digitsDisplay resolution： voltage 0.01V，current 0.001ASize and weightProduct size：190(L)x90(W)x145(H)mmPacking size：265(L)x135(W)x190(H)mmNet weight：1.2KgGross weight：1.6Kg8sets/piece, box size:550*275*405mm,box weight:13.5kgRandom attachmentpower cordx1 (EU,US,UK, ...)Instructionsx1,Test linex1,Machine colorblackPaymentDelivery detailsReturn PolicyAbout usPayment
