Digital Megohmmeter Insulation Resistance Tester for Advanced Industrial 2000MΩ For Sale

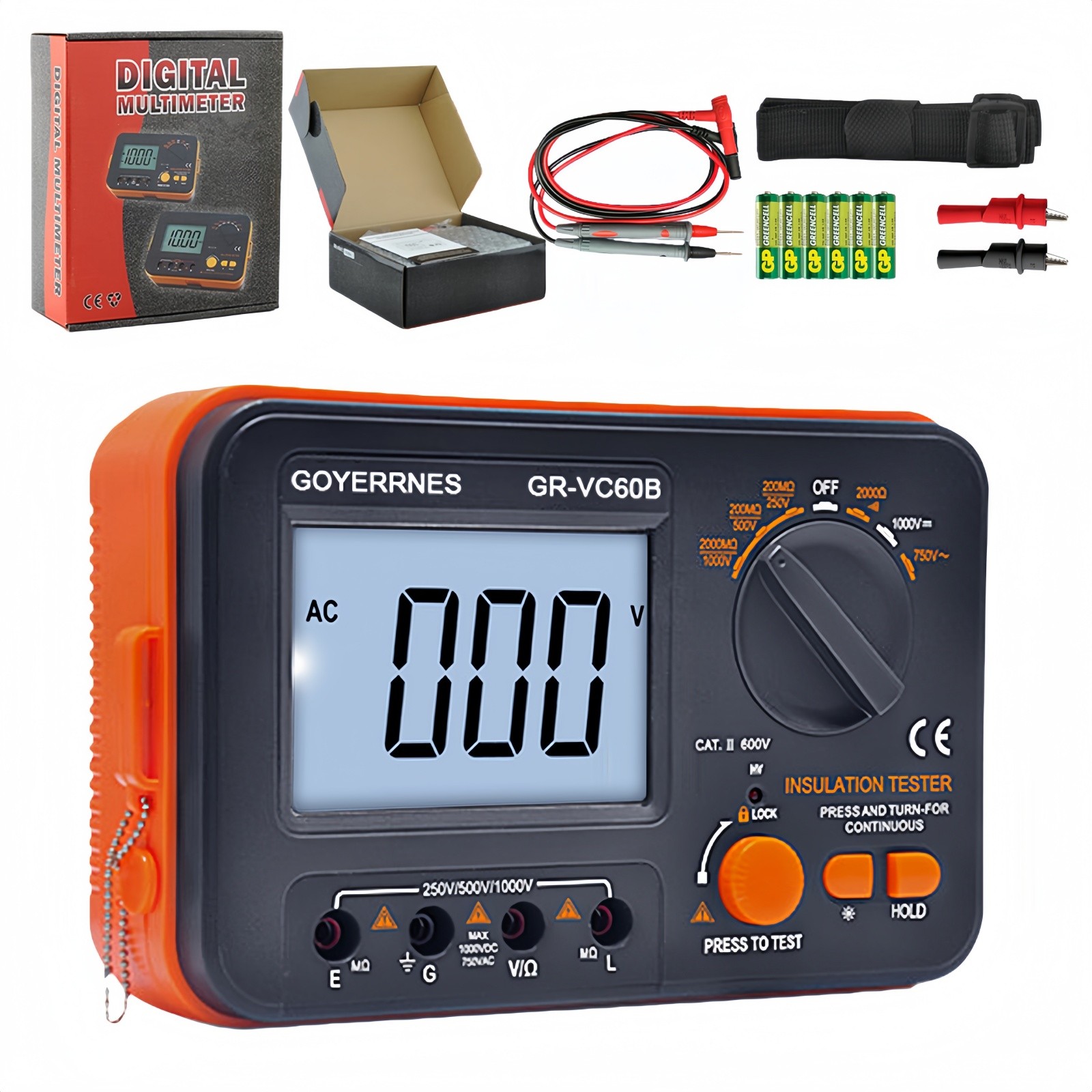

Digital Megohmmeter Insulation Resistance Tester for Advanced Industrial 2000MΩ
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Digital Megohmmeter Insulation Resistance Tester for Advanced Industrial 2000MΩ:
$39.89

【High Precision Insulation Resistance Tester】Testing Voltage:250V/500V/1000V；Insulation Resistance:200MΩ-2000MΩ；AC Voltage:0-750V；Frequency Range:40Hz-400Hz; Manual range; 1999 Counts【1000V Insulation Resistance Tester】Testing Voltage:250V/500V/1000V；Insulation Resistance:200MΩ-2000MΩ；AC Voltage:0-750V；Frequency Range:40Hz-400Hz; Manual range; 1999 Counts【Multi-function Megohmmeter】 Big LCD display, easy to read, Unit symbol display, easy to use, Backlight display, easy to get the values when you in a dark environment, Date hold, HV red indication, "LOCK" function, Continuously measure the object, press the test button and turn it to the right to keep the measurement state, free your hands【Ideal Electrical Test Instrument】Shoulder strap design, Convenient for you outside, This insulatio
Digital Megohmmeter Insulation Resistance Tester for Advanced Industrial 2000MΩ

Digital Insulation Tester 250V/500V/1000V DC Voltage/Resistance/Continuity Measurement

DESCRIPTION:

    • Digital insulation tester utilizing DC voltage conversion for testing insulation resistance.
    • Offers voltage conversion of 9V DC into 250V/500V/1000V DC using a digital bridge.
    • Features include easy operation, wide test range, stable performance, backlit LCD display, data hold, and auto power off.
    • Can be used hands-free with a shoulder strap.
    • Ideal for testing insulation in electric machines, cables, electronic equipment, and more.

PANEL DESCRIPTION:

    • Power switch/function switch for turning the instrument on/off and selecting functions.
    • LCD display for showing test results and unit symbols.
    • Various input terminals for measuring objects, GND connection, protection loop, voltage/resistance/continuity measurement.
    • Test button and high voltage indicator (LED).
    • "HOLD" key for holding readings on the LCD, with an option to cancel.
    • LCD backlight control.
    • Terminal for connecting an external DC adapter for power source.
    • Shoulder strap locker for hands-free use.
TECHNICAL PARAMETEROutput Voltage:500V, 1000V, 2500V with Accuracy of ±10%Test Current:1mA at 250V (R=250kΩ), 1mA at 500V (R=500kΩ), 1mA at 1000V (R=1MΩ), with an Accuracy of ±10%Insulation Resistance:250V: 1MΩ—200MΩ, 500V: 1MΩ—200MΩ, 1000V: 10MΩ—2000MΩ; Accuracy: ±(4% of reading ± 2 digits).Short Circuit Current:<1.8mAMedian Resistance:250V / 500V: 2MΩ; 1000V: 5MΩResistance & Continuity Test0Ω—2kΩ, continuity buzzer sounds at <50Ω, test current: 1mA, accuracy: ±(0.8% of reading + 6 digits)DC Voltage Measurement0V~1000V, Accuracy: ±(0.5% of reading + 6 digits), 1V Resolution, 1MΩ Input ImpedanceAC Voltage Measurement0V~750V, Accuracy: ±(1% of reading + 6 digits), 1V Resolution, 1MΩ Input ImpedanceACV Frequency Response:50 ~ 200HzNote:Please ensure the voltage on both sides of the test does not fall below 90% of the lower limit of the specified resistance voltage.
    • Accuracy: (a% rdg + least effective digits), best accuracy at temperature (23+5)°C and relative humidity <75%.
    • Calibration warranty: 1 year from the factory date.
PACKAGE INCLUDE:
    • 1 x Digital insulation tester.
    • 1 x 10 A test lead.
    • 2 x alligator clip.
    • 1 x shoulder strap.
    • 1 x Instruction manual (in usContact usPayment
