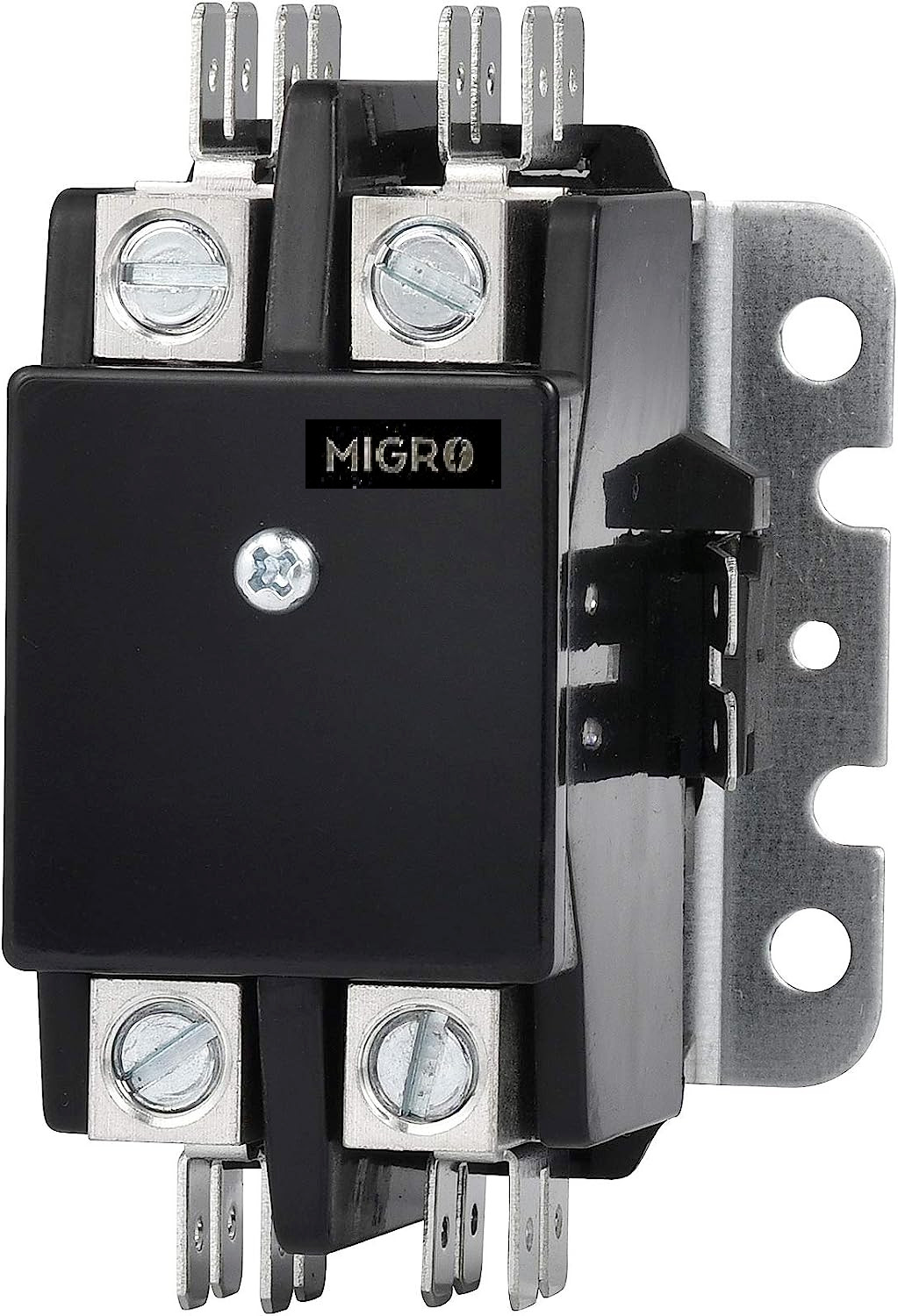

Dp Contactor 2 Pole 40 Amp 24V Coil HVAC 50A 40A 30A AC Motor Air Conditioner UL:
$19.99

Heavy lug screws terminaland 4 pcs male 1/4 in standard terminals for quick connect, convenient for yourfast replacement

Air Conditioner Contactor

Normally Open (N.O.) contacts
NEMA 2 Definite purpose
10HP @240V, 15KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
50A AC-1, 40A. AC-3 600V
Lighting - Refrigeration - HVAC

Package Content: 1 xContactor

Overview Size Weight: 278g/9.8oz

Fullyenclosed contacts ensure safe, copper contact points make perfect and durable

This contactor is a heavyduty enclosed replacement for all Carrier, Bryant, Day & Night, and Paynesingle pole contactors rated at 40 Amps or 30 Amps which have 24 volt coils.

Replaces: Mars 17421 Siemens 45GG20AJcutler-hammer C25BNB240T Hartland controls HCCY2XQ04GG303

---

---

---

Dp Contactor 2 Pole 40 Amp 24V Coil HVAC 50A 40A 30A AC Motor Air Conditioner UL

$19.99

---

MCG 3 pole 30 Amp FL Res. 40 Definite Purpose Contactor MCDP303 U6 240v Coil DP3

$19.95

---

SUNLEE 60 Amp 75 RES 3 Pole 277v Coil SunLee DP Contactor A2L 42EF35AF Equiv

$52.00

---
