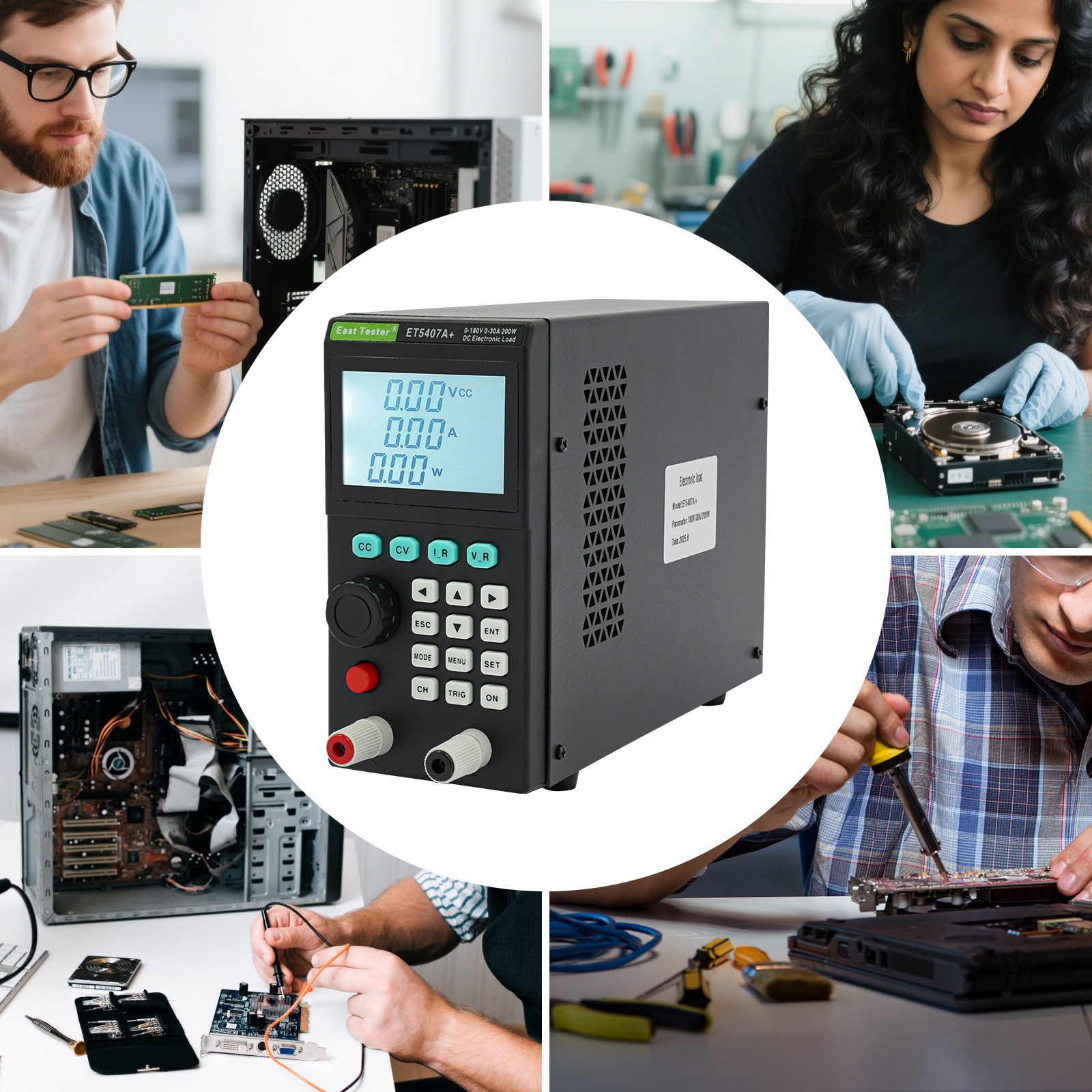

Electronic Load Tester ET5407 A+, 200W Electronic Load Tester, Electronic Load:
$125.92

SpecificationsStyle: ModernShape: Rectangular Color: BlackMaterial: Aluminium, SiliconeProcess: PaintingPlug Type: US Standard Mount Type: TabletopAssembly Required: No Power Source: Corded ElectricInput Voltage: 0-180VInput Current: 0-30APower: 200WConstant Voltage ModeRange: 0.1~19.999V, 0.1~180.00VResolution: 1mV, 10mVAccuracy: ±(0.05% + 0.02% FS)Constant Current ModeRange: 0~3.000A, 0~30.00AResolution: 1mA, 10mAAccuracy: ±(0.05% + 0.05% FS)Constant Resistance ModeRange: 0.05Ω-4.50kΩResolution: 10mΩ, 1ΩAccuracy: ±(0.1% + 0.5% FS)Constant Power ModeRange: 0-200WResolution: 10mWAccuracy: ±(0.1% + 0.5% FS)Dynamic Testing FunctionMode: CC, CVT1 & T2: 0.05s–99.999sBattery Testing FunctionDischarge Mode: CC, CRMaximum Discharge Capacity: 9999AhRes

Electronic Load Tester ET5407 A+, 200W Electronic Load Tester, Electronic Load

Description

An efficient and reliable electronic load tester is an indispensable tool in the power electronics industry. Our tester is your ideal assistant. With its high precision and multiple testing functions, it easily tackles various challenges, ensuring accurate results every time. The built-in multi-protection mechanisms guarantee a safe testing efficient and reliable electronic load tester serves as a vital asset in the field of power electronics. Designed to be your great testing partner, this instrument combines high-precision measurement capabilities with versatile testing modes to handle diverse challenges with ease, delivering consistently accurate and reliable performance. Equipped with various built-in protection features, it also ensures maximum safety throughout the testing process.

Key Features

High-class Materials: The product is made of aluminum and silicone, featuring a painting process that ensures high strength and abrasion durability, guaranteeing a long service Durability:Crafted from aluminum and silicone with a painting process, this product delivers exceptional strength and abrasion durability, ensuring extended durability.

Nine Commonly Used Test Modes:The product supports four basic measurement modes—CC, CV, CR, and CP—as well as five specialized test modes: battery, dynamic, sweep, list, and short-circuit. The dynamic test mode can detect the dynamic output performance of power supplies; the sweep test mode can verify the output continuity of power supplies within a certain range; the list mode can simulate various load state changes; and the short-circuit test mode simulates load short-circuit conditions, meeting diverse testing Testing Modes: Offering four fundamental measurement modes—CC, CV, CR, and CP—alongside five specialized testing options (battery, dynamic, sweep, list, and short-circuit), it caters to diverse requirements. The dynamic mode assesses power supply output responsiveness, while the sweep mode checks power supply output consistency across a defined range. The list mode enables simulation of varying load conditions, and the short-circuit mode replicates load short-circuit conditions.

High Safety:Equipped with multiple protection functions such as over-voltage, over-current, over-power, and over-temperature protection, it allows flexible setting of over-voltage and over-current parameters to effectively protect the load. It also features an intelligent fan speed control function to reduce operational fan noise, multiple heat dissipation holes to accelerate cooling, and input polarity reverse indication to prevent device damage and safety Safety: With safeguards against over-voltage, over-current, over-power, and over-temperature incidents, users can customize over-voltage and over-current parameters to ensure load protection. A fan speed control minimizes operational noise, and strategically placed cooling vents improve heat dissipation. Input reverse polarity alerts help prevent equipment damage and potential hazards.

High-Precision Testing: This product delivers high resolution and accuracy of 1mV/10mV and 1mA/10mA for DC programmable electronic loads, enabling precise Measurement Capabilities: It provides high resolution of 1mV/10mV and 1mA/10mA for programmable DC electronic load, guaranteeing accurate testing.

Remote Operation: The product supports USB interface communication with a computer for remote operation. During remote connection, a key lock function prevents misoperation.

【创意表达】

Remote Control Functionality: Through USB connectivity, the device enables computer-assisted remote operation with a key lock feature to prevent unintended commands during remote Feet: Four slip-retardant feet ensure stability and prevent tipping during & Safe Base:Four slip-retardant feet provide firm footing, preventing slips or wobbles during use.

LCD Display:Equipped with an LCD display with an adjustable backlight design, it makes operation more LCD Display: The LCD display features adjustable backlighting for improved readability and user product is widely applicable to production line testing in industries such as chargers, switching power supplies, linear power supplies, and batteries, making it an indispensable tool for power product development, production testing, and quality Modern

Shape: Rectangular

Color: Black

Material: Aluminium, Silicone

Process: Painting

Plug Type: US Standard

Mount Type: Tabletop

Assembly Required: No

Power Source: Corded Electric

Input Voltage: 0-180V

Input Current: 0-30A

Power: 200W

Constant Voltage Mode

Range: 0.1~19.999V, 0.1~180.00V

Resolution: 1mV, 10mV

Accuracy: ±(0.05% + 0.02% FS)

Constant Current Mode

Range: 0~3.000A, 0~30.00A

Resolution: 1mA, 10mA

Accuracy: ±(0.05% + 0.05% FS)

Constant ResistanceMode

Range: 10mΩ, 1Ω

Accuracy: ±(0.1% + 0.5% FS)

Constant Power Mode

Range: 0-200W

Resolution: 10mW

Accuracy: ±(0.1% + 0.5% FS)

Dynamic Testing Function

Mode: CC, CV

T1 & T2: 0.05s–99.999s

Battery Testing Function

Discharge Mode: CC, CR

Maximum Discharge Capacity: 9999Ah

Resolution: 1mA, 10mA, 10mΩ, 1Ω

Product Size: 24*7.5*16cm/9.5*3*6.3in

Package Size: Weight: 1.7kg/3.75 lbs

Net Weight: 1.61kg/3.55 lbs

Package Included

1* Electronic Load Tester

1* Power Cord

1* English check the product size before ordering to make sure it fits your needs.

Please read the manual carefully and pay attention to the safety precautions before use.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
